PART/ C30617BFCH
C30617BFCH - InGaAs PIN, 100um, TO-18, FC Receptacle

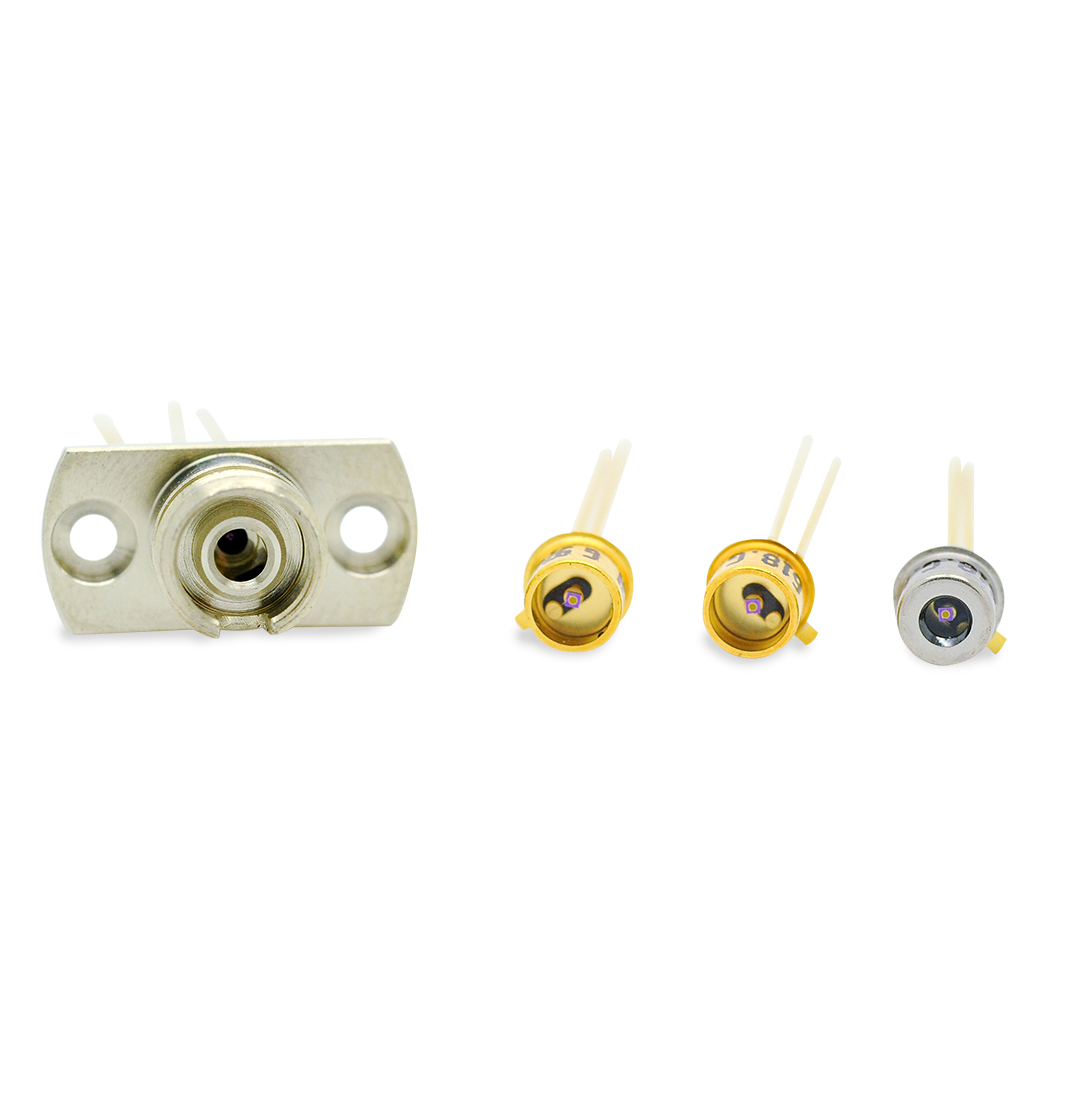

The C30617BFCH is a high-speed InGaAs PIN Photodiode with a 100µm active diameter chip in TO-18 ball lens package and FC receptacle. This photodiode provides high quantum efficiency from 800 nm to 1700 nm. It features low capacitance for extended bandwidth, as well as high resistance for high sensitivity, high linearity and uniformity within two percent across the detector active area.
Features & Benefits:
- High speed InGaAs PIN photodiode
- Standard package: TO-18 ball lens package with FC receptacle
- 100 µm active diameter
- High responsivity at 1300 and 1550 nm
- Low capacitance for high bandwidths (to 3.5 GHz)
Applications:
- Telecommunications
- Instrumentation
- Data transmission
- High speed switching
- Data links and fiber optic communications
- Breakdown Voltage: 100 V
- Operating voltage: 5V
- Capacitance: 0.45 pF
- Dark Current: 1 nA
- Noise Current: 0.02 pA/√Hz
- Package: Ceramic carrier
- High responsivity at 1300 and 1550 nm
- Responsivity: 0.90 A/W
- Rise/Fall Time: < 0.5ps
- Breakdown Voltage: 100 V
- Operating voltage: 5V
- Capacitance: 0.45 pF
- Dark Current: 1 nA
- Noise Current: 0.02 pA/√Hz
- Package: Ceramic carrier
- High responsivity at 1300 and 1550 nm
- Responsivity: 0.90 A/W
- Rise/Fall Time: < 0.5ps
