Excelitas C30618L-350 InGaAs PIN Photodiodes
PART/ C30618L-350

C30618L-350 InGaAs PIN, 350um, Ceramic SMD

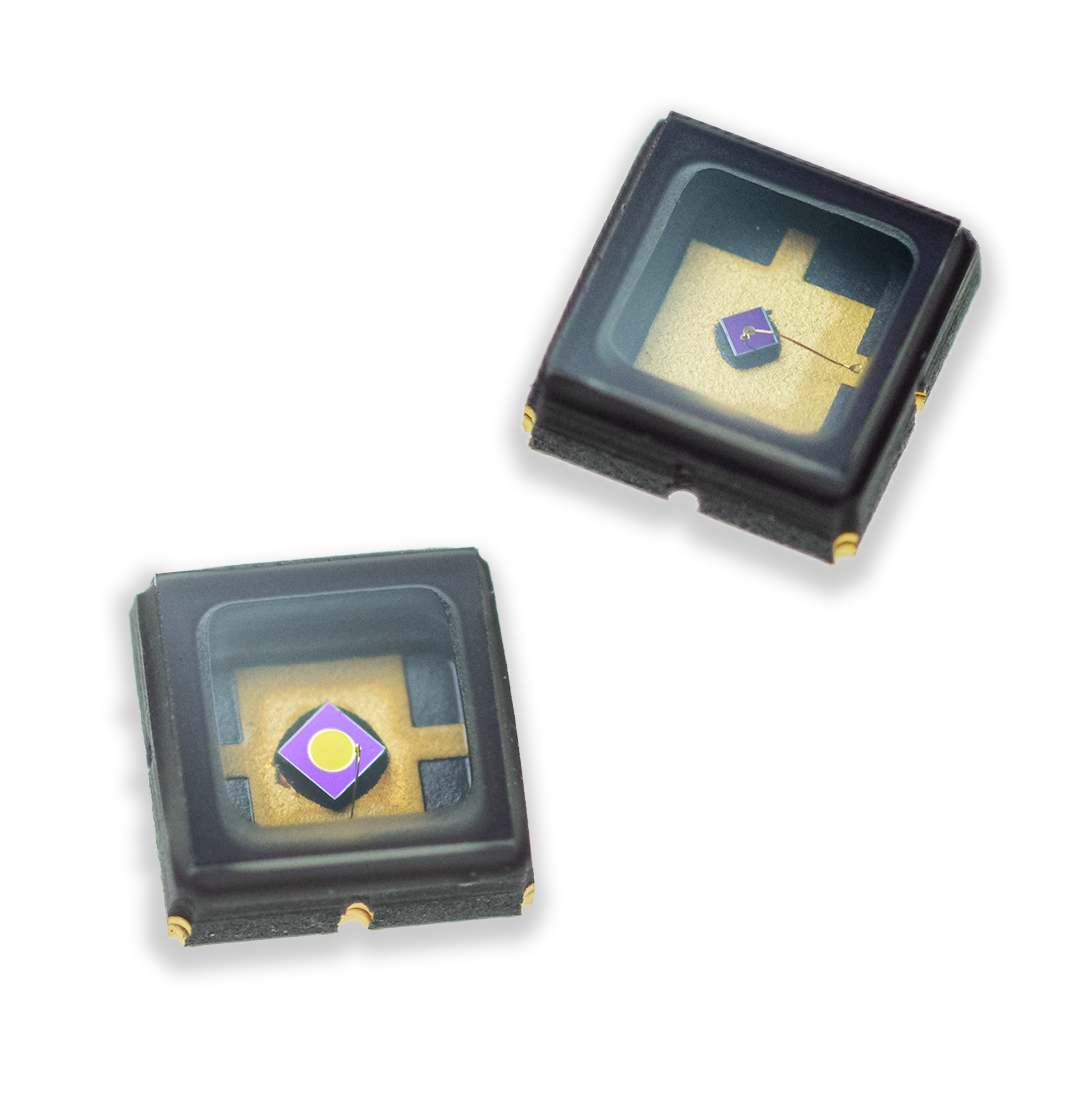

The C30618L-350 is a high-speed InGaAs PIN Photodiode with a 350 µm active diameter chip in a ceramic SMD package with window. This photodiode provides high quantum efficiency from 960 nm to 1700 nm. It features low capacitance for extended bandwidth, as well as high resistance for high sensitivity, high linearity and uniformity within two percent across the detector active area.

Applications:

  • High volume consumer applications
  • Telecommunication
  • Instrumentation
  • High speed switches
  • Optical time reference for laser range finders
  • LiDAR

Features & Benefits:

  • High Bandwidth, up to 3.5 GHz
  • High responsivity at 1300 nm and 1550 nm
  • Active Area diameter of 350 μm
  • Low capacitance
  • Compact, robust ceramic SMT package
  • Customizations (e.g. filters) possible
  • RoHS compliant

Breakdown Voltage: 60 V
Operating voltage: 5 V
Capacitance: Typ. 4.0 pF
Dark Current: Typ. <1.0 nA
Dark Noise: Typ. <0.08 pA/√Hz
Package: Ceramic SMD with window
High responsivity at 1300 and 1550 nm
Responsivity: Typ. 1.05 A/W @ 1550 nm
Rise/Fall Time: Typ. 0.5 ns

Breakdown Voltage: 60 V
Operating voltage: 5 V
Capacitance: Typ. 4.0 pF
Dark Current: Typ. <1.0 nA
Dark Noise: Typ. <0.08 pA/√Hz
Package: Ceramic SMD with window
High responsivity at 1300 and 1550 nm
Responsivity: Typ. 1.05 A/W @ 1550 nm
Rise/Fall Time: Typ. 0.5 ns
