C30626FH - Si APD, 5x5mm, Flatpack

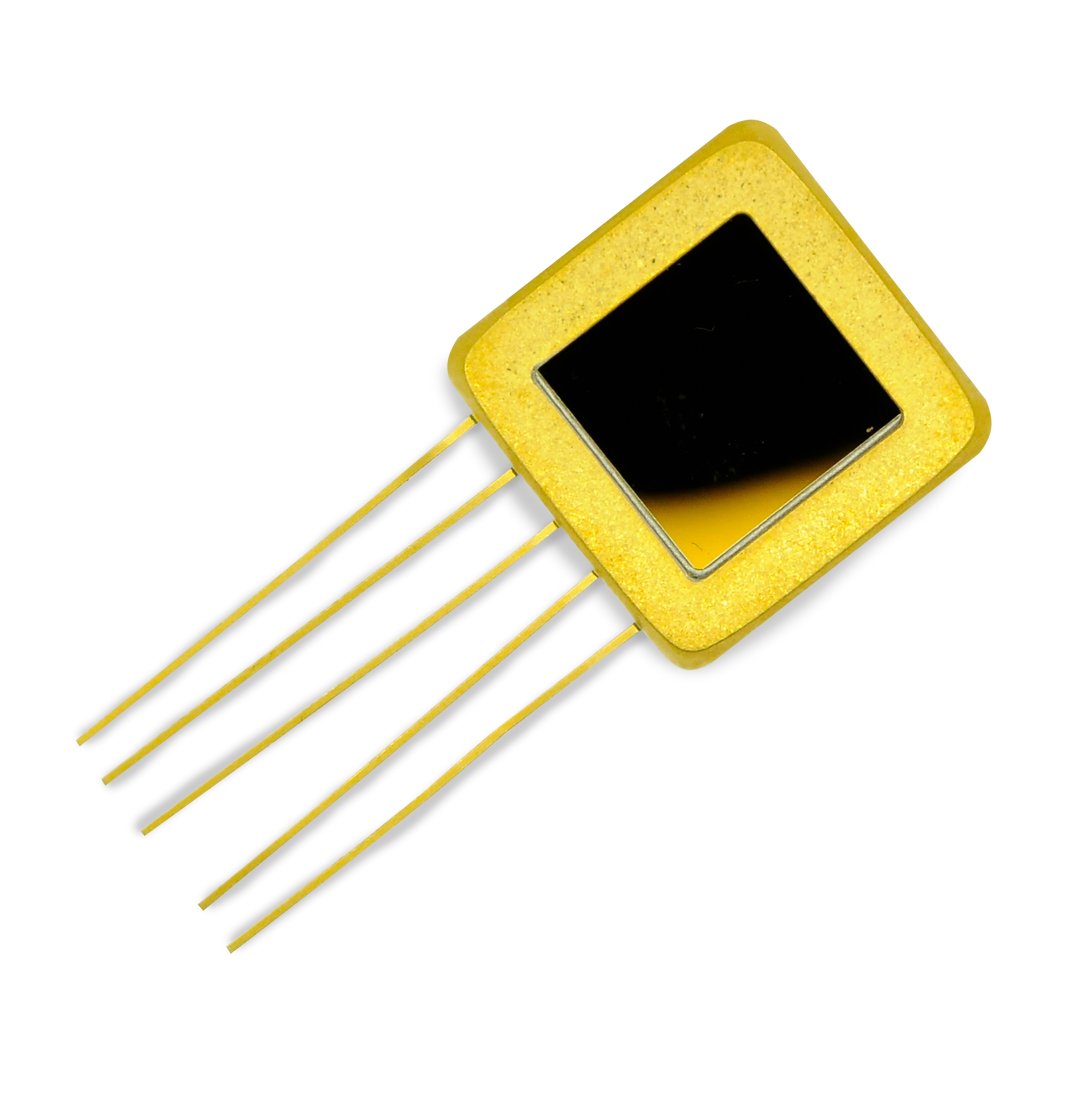

The large area C30626FH Series Silicon Avalanche Photodiode (Si APD) with dimensions of 4.7 x 4.7 mm are offered in a flat-pack package for either direct detection or easy coupling to scintillator crystals.
Excelitas' 5x5 mm, Flatpack Silicon Avalanche Photodiodes (Si APD) is square in shape and provides an active area of 25 mm2 with responsivity of 22 A/W at 900 nm.
Key Features:
- High quantum efficiency
- Low dark currents
- Easy coupling to scintillator crystals
Applications
- Nuclear medicine
- Fluorescence detection
- High energy physics
- Medical imaging
- Radiation detection
- Particle physics
- Instrumentation
Responsivity at 900 nm 22 A/W
Dark Current 250 nA
Spectral noise density 0.5 pA /√Hz
Capacitance, 30 pF (100μm effective thickness)
20 pF (200μm effective thickness)
Rise Time 5 ns
N.E.P. at 900 nm 23 fW /√Hz
Responsivity at 900 nm 22 A/W
Dark Current 250 nA
Spectral noise density 0.5 pA /√Hz
Capacitance, 30 pF (100μm effective thickness)
20 pF (200μm effective thickness)
Rise Time 5 ns
N.E.P. at 900 nm 23 fW /√Hz
