Large area, UV-Enhanced APDs

The large-area, UV-enhanced Silicon Avalanche Photodiodes (Si APDs) are intended for use in a wide variety of broadband low-light-level applications covering the spectral range from below 400 to over 700 nm. These low noise, low capacitance and high gain Si APDs are available in flat-pack packages for either direct detection or easy coupling to scintillator crystals.

Additional Resources
Why should you choose Excelitas as your provider of Large Area, UV-Enhanced APDs?
Excelitas is a leading provider of advanced photonic solutions designed for optimum performance in each application. Our superior solutions are headlined by our UV-enhanced Silicon Avalanche Photodiodes (Si APDs), designed for applications requiring low noise, high quantum efficiency, and high gain while maintaining reasonably low operating voltages. These large-area, UV-enhanced Si APDs are intended for use in various broadband low-light applications from below 400nm to over 700nm. Through our innovative technology, Excelitas is able to deliver market-driven photonic solutions designed to help the needs of our OEM and end-user customers.
What are the different uses of Large Area, UV-Enhanced APDs?
Excelitas features a comprehensive line of high-performing UV-enhanced APDs that fully use the photoelectric effect to convert light energy into electricity. Our extensive products have been manufactured with easy handling and superior wavelength responsivity in mind, making them ideal for such demanding applications, including Positron Emission Tomography (PET) and other equipment in the medical and biomedical fields.
What types of Large Area, UV-Enhanced APD Solutions do you offer?
Excelitas proudly offers a comprehensive range of Si APD solutions to cater to a wide range of potential applications for OEM and end-user applications. Our large-area, UV-enhanced Si APD solutions include the following:
  • C30626FH - Si APD, 5x5mm, Flatpack - has actual dimensions of 4.7 x 4.7 mm and is capable of direct detection or easy coupling to scintillator crystals thanks to its flat-pack package design.
  • C30703FH - Si APD, 10x10mm, Flatpack - has 10 x 10 mm dimensions and is designed for extremely large areas. It comes in a flat-pack package design. It is enhanced for blue-wavelength response with a peak quantum efficiency at ~ 530nm, making it ideal for radiation detection.
  • C30703FH-200 - Si APD, 10x10mm Flatpack without Glued Window - also comes in a flat-pack assembly while offering the same level of performance as the C30703FH. It is well-suited for radiation detection in extremely large areas.
  • C30739ECERH - Si APD, Ceramic Carrier - covers the spectral range from less than 400 nm to greater than 700 nm. It has low noise, high gain, low capacitance, and an enhanced UV response, with a quantum efficiency above 70% at 430 nm. This Si APD series is ideally suited for applications at low-light-levels, like molecular imaging.
  • C30739ECERH-2 - Si APD, Ceramic Carrier, High-Gain - comes in a ceramic carrier package, enabling easy handling and coupling to scintillation crystals, such as LSO and BGO.
What are the applications of Large Area, UV-Enhanced APDs?
Excelitas is on the cutting edge of innovation with its wide range of large-area Si APD offerings. They are designed for optimal performance in the following applications:
  • Nuclear medicine
  • Fluorescence detection
  • High energy physics
  • Medical imaging
  • Radiation detection
  • Particle physics
  • Instrumentation
  • Environmental monitoring
Do you offer Custom Large Area, UV-Enhanced APDs?
Excelitas continues to be at the forefront of tech excellence and smart design with its offerings of high-performance APDs that integrate seamlessly within any application while providing top-notch performance. Each product has been manufactured while complying with our strict production standards - a testament to our continued commitment to quality and excellence. Rest assured that this same commitment to quality remains in place while accommodating special requests from our clients. Should you have any special requirements or considerations for custom products, communicate them with us so we can accommodate them during the design and manufacturing processes.
Excelitas Large-area, UV-Enhanced Silicon APDs

Product List

Part Number
C30626FH

C30626FH - Si APD, 5x5mm, Flatpack

The large area C30626FH Series Silicon Avalanche Photodiode (Si APD) with dimensions of 4.7 x 4.7 mm are offered in a flat-pack package for either direct detection or easy coupling to scintillator crystals.
Part Number
C30703FH

C30703FH - Si APD, 10x10mm, Flatpack

The C30703FH Series of Silicon Avalanche Photodiodes (Si APD) with dimensions of 10 mm x 10 mm are designed for extremely large areas and offered in a flat-pack package suitable for radiation detection. The Si APD C30703 is enhanced for blue-wavelength response and has a peak quantum efficiency at ~ 530 nm.
Part Number
C30703FH-200

C30703FH-200 - Si APD, 10x10mm, Flatpack without Glued Window

The C30703FH-200 Silicon Avalanche Photodiode (Si APD) with dimensions of 10 mm x 10 mm is designed for extremely large areas and offered in a flat pack suitable for radiation detection. The C30703 Si APD is enhanced for blue wavelength response and has a peak quantum efficiency at ~ 530 nm.
Part Number
C30739ECERH

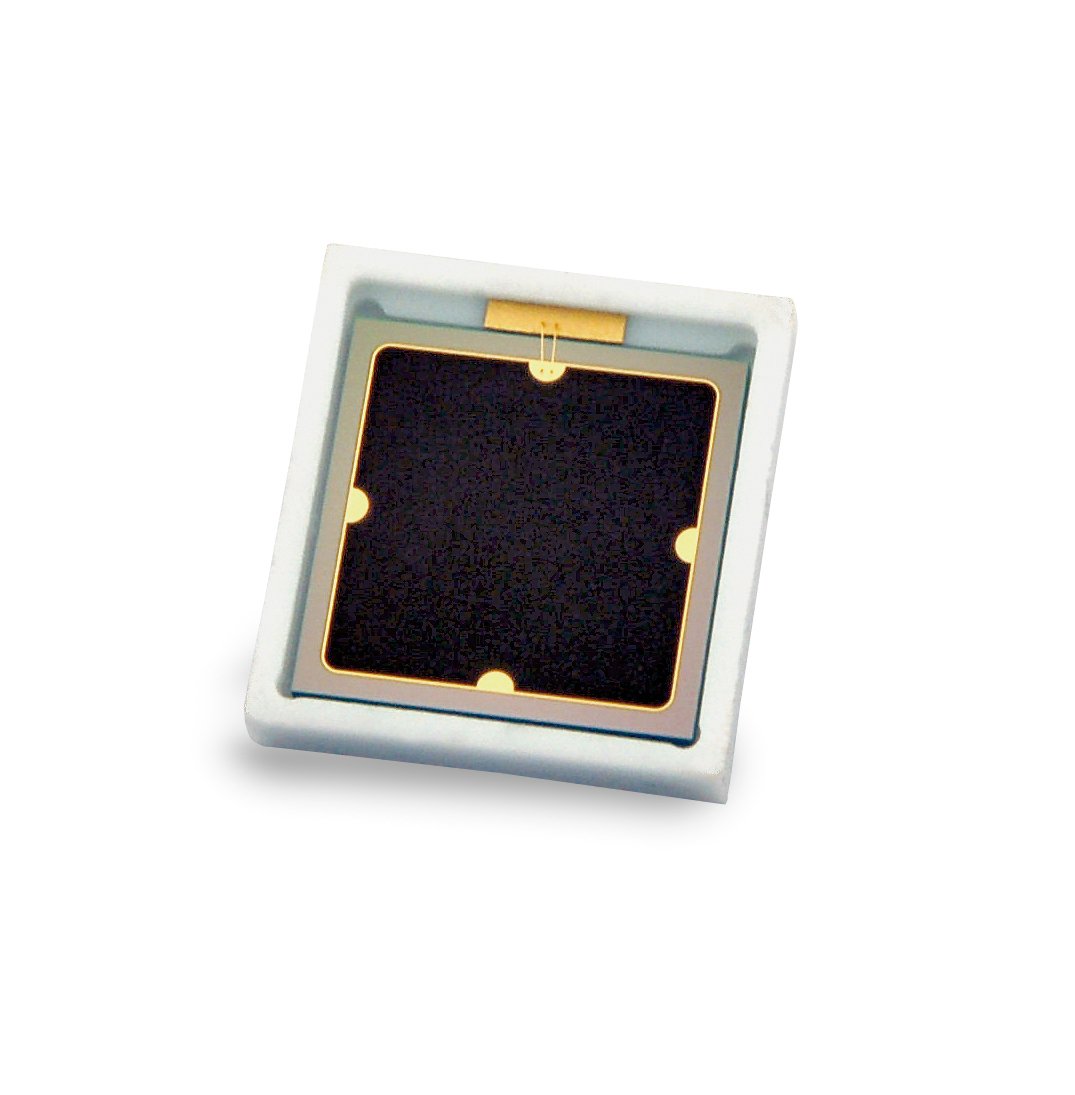

C30739ECERH - Si APD, Ceramic Carrier

The C30739ECERH Short-Wavelength, Enhanced Silicon Avalanche Photodiode (Si APD) covers the spectral range from less than 400 nm to greater than 700 nm. With low noise, high gain, low capacitance and an enhanced UV-response with a quantum efficiency above 70% at 430 nm, this Si APD is designed for low-light-level applications such as molecular imaging. Its ceramic carrier package allows for easy handling and coupling to scintillation crystals such as LSO and BGO.
Part Number
C30739ECERH-2

C30739ECERH-2 - Si APD, Ceramic Carrier, High-Gain

The C30739ECERH-2 Short-Wavelength, Enhanced Silicon Avalanche Photodiode (Si APD) covers the spectral range from less than 400 nm to greater than 700 nm. With low noise, high gain, low capacitance and an enhanced UV-response with a quantum efficiency above 70% at 430 nm, this Si APD is designed for low-light level applications such as molecular imaging. Its ceramic carrier package allows for easy handling and coupling to scintillation crystals such as LSO and BGO.
