Excelitas C30703FH Si APD
PART/ C30703FH

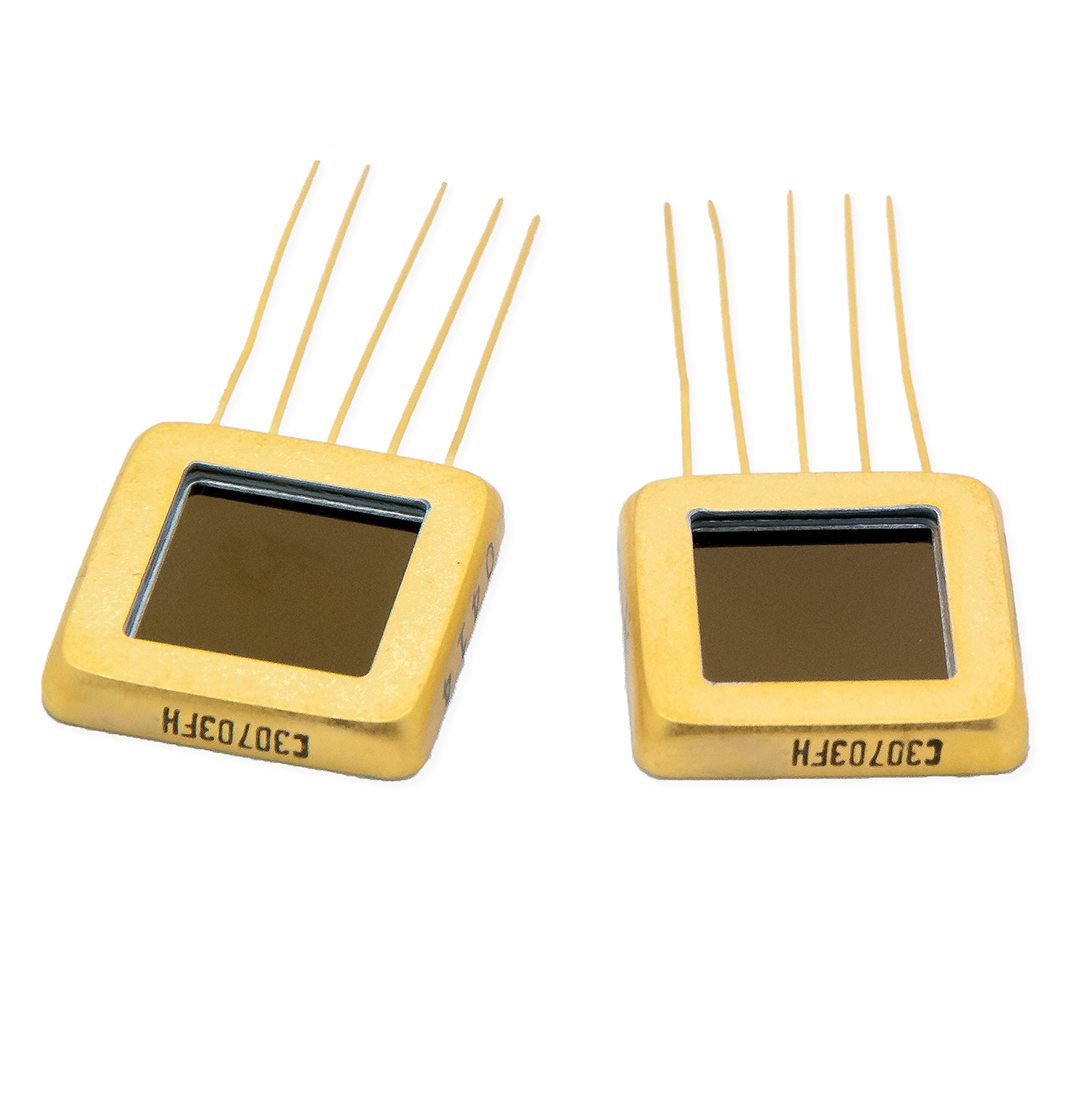

C30703FH - Si APD, 10x10mm, Flatpack

The C30703FH Series of Silicon Avalanche Photodiodes (Si APD) with dimensions of 10 mm x 10 mm are designed for extremely large areas and offered in a flat-pack package suitable for radiation detection. The Si APD C30703 is enhanced for blue-wavelength response and has a peak quantum efficiency at ~ 530 nm.

Features & Benefits:

  • High-quantum efficiency
  • Low dark currents
  • Easy coupling to scintillator crystals
  • Immunity to electromagnetic fields
  • Short wavelength enhanced responsivity; Custom packaging available
  • Excellent timing resolution
  • RoHS compliant

Applications:

  • High-energy physics
  • Radiation detection
  • Particle physics
  • Instrumentation
  • Environmental monitoring



Active Area: 100 mm²
Vop Range: 275 - 425V
Capacitance: 100 pF
Dark Current: 250 nA
Noise Current: 0.5 pA/√Hz
NEP: 40 fW/√Hz, 530nm
Package: Flat-pack
Peak Sensitivity Wavelength: 530nm
Photosensitive area: 10 x 10 mm
Response Time: 5 ns
Responsivity: 16 A/W at 530 nm

Active Area: 100 mm²
Vop Range: 275 - 425V
Capacitance: 100 pF
Dark Current: 250 nA
Noise Current: 0.5 pA/√Hz
NEP: 40 fW/√Hz, 530nm
Package: Flat-pack
Peak Sensitivity Wavelength: 530nm
Photosensitive area: 10 x 10 mm
Response Time: 5 ns
Responsivity: 16 A/W at 530 nm
