Excelitas C30642GH large-area InGaAs PIN Photodiode
PART/ C30642GH

C30642GH - InGaAs PIN, 2mm, TO-5

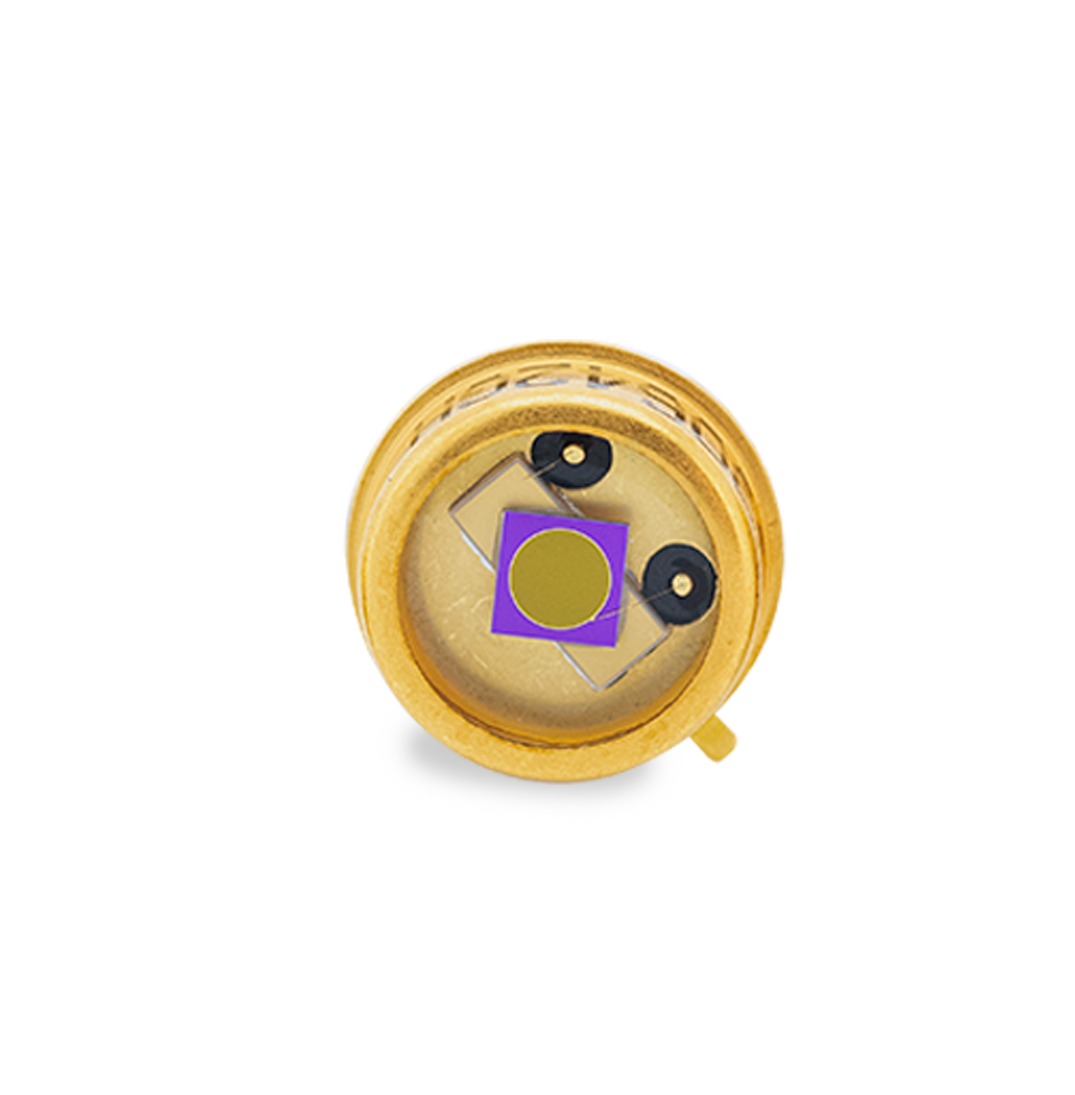

The C30642GH is a large-area InGaAs PIN Photodiode with a 2.0 mm active diameter chip in TO-5 package and a flat glass window. This photodiode provides high quantum efficiency from 800 nm to 1700 nm. It features high responsivity, high shunt resistance, low dark current, low capacitance for fast response time and uniformity within two percent across the detector active area.

Features & Benefits:

  • Ultra-low capacitance option available
  • High responsivity at 1300 nm and 1550 nm
  • Active area diameter: 2.0 mm
  • High linearity over large dynamic range
  • Available in various robust TO packages
  • Customizations (e.g. TEC) possible
  • RoHS compliant

Applications:

  • Optical power meter
  • Fiber optic test communication
  • Near-IR spectroscopy
  • Laser profiling stations
  • Instrumentation
  • LiDAR

Breakdown Voltage: > 15 V
Operating voltage: 5 V
Fully Depleted Capacitance: 75 pF
Dark Current (at 5V): 2.0 nA
Dark Noise: 0.03 pA/√Hz
Package: TO-5
High responsivity at 1300 and 1550 nm
Responsivity:

  • 0.20 A/W at 850 nm
  • 0.90 A/W at 1300 nm
  • 0.95 A/W at 1550 nm

Breakdown Voltage: > 15 V
Operating voltage: 5 V
Fully Depleted Capacitance: 75 pF
Dark Current (at 5V): 2.0 nA
Dark Noise: 0.03 pA/√Hz
Package: TO-5
High responsivity at 1300 and 1550 nm
Responsivity:

  • 0.20 A/W at 850 nm
  • 0.90 A/W at 1300 nm
  • 0.95 A/W at 1550 nm
