Excelitas C30724PH Silicon APDs
PART/ C30724PH

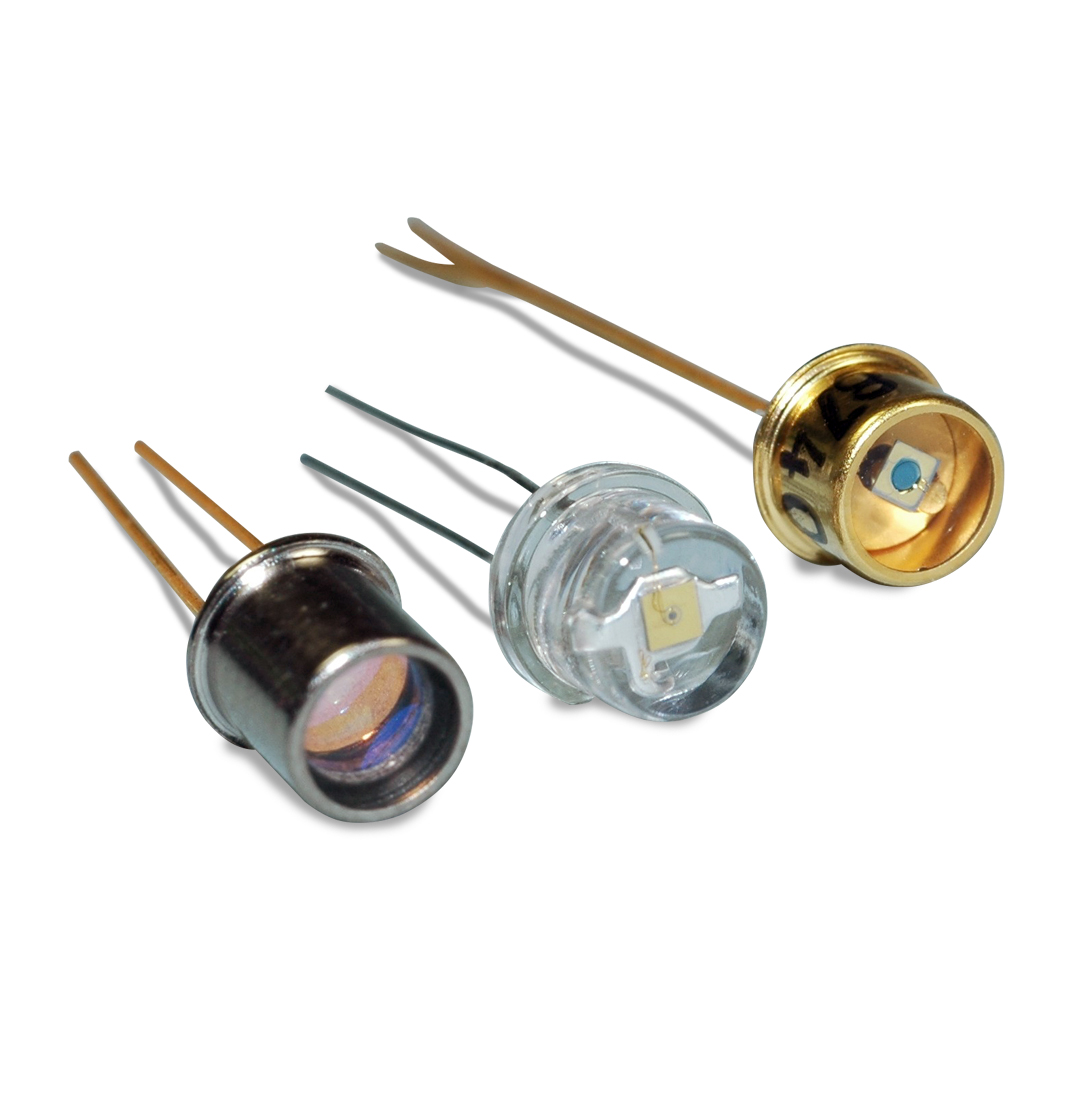

C30724PH - Si APD, 500um, Plastic

The C30724PH Silicon Avalanche Photodiode (Si APD) offers 920 nm peak sensitivity and a low-temperature coefficient in a plastic TO-housing.

The C30724PH Si APD is optimized for the wavelength range of 800 to 950 nm. Particularly suited for high volume 905 nm laser range finding applications, this Si APD can be operated at fixed voltage without the need for temperature compensation.

Key Features:

  • Si APD with 920 nm peak-sensitivity wavelength
  • High-volume device
  • Plastic TO-can
  • 5 ns rise + fall time - no tail.
  • Operates at low amplification
  • No temperature compensation necessary

Applications:

  • Laser-range finding
  • Laser-meter
  • Traffic speed gun

Active Diameter: 0.5 mm
Breakdown Voltage: 350 V
Capacitance: 1 pF
Dark Current: 20, <40 nA
Gain: >12, 15, <18
Noise Current: 0.1, <0.25 pA/√Hz
Package: T1 ¾ plastic (TO-18)
Peak Sensitivity Wavelength: 920 nm
Responsivity: 8.5 A/W at 920 nm
Rise/Fall Time: 5 ns
Total Dark Current (Bulk + Surface): 20, <40 nA
Vop Range: 120-200 V
Wavelength: 400-1100 nm

Active Diameter: 0.5 mm
Breakdown Voltage: 350 V
Capacitance: 1 pF
Dark Current: 20, <40 nA
Gain: >12, 15, <18
Noise Current: 0.1, <0.25 pA/√Hz
Package: T1 ¾ plastic (TO-18)
Peak Sensitivity Wavelength: 920 nm
Responsivity: 8.5 A/W at 920 nm
Rise/Fall Time: 5 ns
Total Dark Current (Bulk + Surface): 20, <40 nA
Vop Range: 120-200 V
Wavelength: 400-1100 nm
