High-Volume, Cost-Effective Si APDs

Our C30724 Series of APDs provide high responsivity in the wavelength range of 800 to 950 nm and are designed to meet the needs of high-volume and low-cost applications. The C30724EH is in a hermetically-sealed TO-18 can. The C30724EH-2 is a modified TO-18 with a built in 905 nm narrow band pass filter. Lastly, the C30724PH is in a TO-18 plastic encapsulated package.

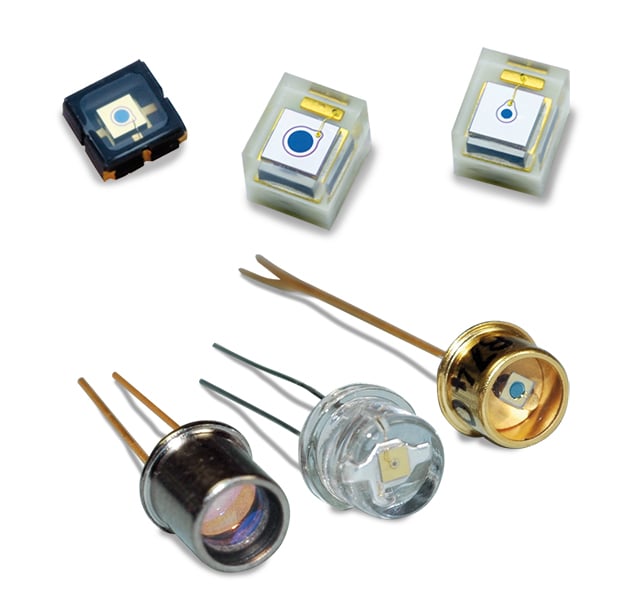

Excelitas High-Volume, Cost-Effective Si APDs

Product List

Excelitas C30724EH Si APDs
Part Number
C30724EH

C30724EH - Si APD, 500um, TO

The C30724EH Silicon Avalanche Photodiode (Si APD) offers 920 nm peak sensitivity and low-temperature coefficient in a metal TO-housing.
Excelitas C39737LH Silicon APD in LCC package
Part Number
C30737LH-500-81N

C30737LH-500-81N - Si APD, 500um, LCC, 635nm filter, 800nm enhanced

The C30737LH-500-81N Silicon Avalanche Photodiode (Si APD) provides an active diameter of 500 µm with enhanced 800 nm response and a 635 nm optical bandpass in a leadless ceramic carrier (LCC).
Excelitas C39737PH Silicon APD in plastic package
Part Number
C30737PH-500-80N

C30737PH-500-80N - Si APD, 500um, Plastic, 800nm enhanced

The C30737PH-500-80N Silicon Avalanche Photodiode (APD) provides an active diameter of 500 µm with enhanced 800 nm response in a Plastic T 1¾ housing.
Excelitas C39737PH Silicon APD in plastic package
Part Number
C30737PH-230-90N

C30737PH-230-90N - Si APD, 230um, Plastic, 900nm enhanced

The C30737PH-230-90N Silicon Avalanche Photodiode (Si APD) provides an active diameter of 230 µm and enhanced 900 nm response in a Plastic T 1¾ package.
Excelitas C39737PH Silicon APD in a plastic package
Part Number
C30737PH-230-80N

C30737PH-230-80N - Si APD, 230um, Plastic, 800nm enhanced

The C30737PH-230-80N Silicon Avalanche Photodiode (Si APD) offers an active diameter of 230 µm and enhanced 800 nm response in a plastic T 1¾ through-hole package.
Excelitas C30737MH-500-90N Silicon Avalanche Photodiode (APD)
Part Number
C30737MH-500-90N

C30737MH-500-90N - Si APD, 500um, LLC, 900nm enhanced

The C30737MH-500-90N Silicon Avalanche Photodiode (APD) provides an active diameter of 500 µm with enhanced 900 nm response in a leadless laminated carrier (LLC).
Excelitas C30737MH-500-80N Silicon Avalanche Photodiode (APD)
Part Number
C30737MH-500-80N

C30737MH-500-80N - Si APD, 500um, LLC, 800nm enhanced

The C30737MH-500-80N Silicon Avalanche Photodiode (APD) provides an active diameter of 500 µm with enhanced 800 nm response in a leadless laminated carrier (LLC).
C30737MH-230-90N Silicon Avalanche Photodiode (Si APD)
Part Number
C30737MH-230-90N

C30737MH-230-90N - Si APD, 230um, LLC, 900nm enhanced

The C30737MH-230-90N Silicon Avalanche Photodiode (Si APD) provides an active diameter of 230µm and enhanced 900 nm response in a leadless laminated carrier (LLC).
Excelitas C30737MH-230-80N Silicon Avalanche Photodiode (Si APD)
Part Number
C30737MH-230-80N

C30737MH-230-80N - Si APD, 230um, LLC, 800nm enhanced

The C30737MH-230-80N Silicon Avalanche Photodiode (Si APD) offers enhanced 800 nm response with an active diameter of 230µm in a leadless laminated carrier (LLC).
C39737LH Silicon APD in LCC package
Part Number
C30737LH-500-92N

C30737LH-500-92N - Si APD, 500um, LCC, 905nm filter, 900nm enhanced

The C30737LH-500-92N Silicon Avalanche Photodiode (Si APD) provides an active diameter of 500 µm with enhanced 900nm response and a 905 nm optical bandpass in a leadless ceramic carrier (LCC).
Excelitas C39737LH Silicon APD in LCC package
Part Number
C30737LH-500-90N

C30737LH-500-90N - Si APD, 500um, LCC, 900nm enhanced

The C30737LH-500-90N Silicon Avalanche Photodiode (APD) offers an active diameter of 500 µm with enhanced 900 nm response in a leadless ceramic carrier (LCC).
Excelitas C39737LH Silicon APD in LCC package
Part Number
C30737LH-500-83N

C30737LH-500-83N - Si APD, 500um, LCC, 650nm filter, 800nm enhanced

The C30737LH-500-83N Silicon Avalanche Photodiode (Si APD) provides an active diameter of 500µm with enhanced 800nm response and 650 nm optical bandpass in a leadless ceramic carrier (LCC).
Excelitas C39737LH Silicon APD in LCC package.
Part Number
C30737LH-500-80N

C30737LH-500-80N - Si APD, 500um, LCC, 800nm enhanced

The C30737LH-500-80N Silicon Avalanche Photodiode (Si APD) provides an active diameter of 500 µm and enhanced 800 nm response in a leadless ceramic carrier (LCC).
Excelitas C30724EH-2 Silicon APD, 500um, TO, 905nm filter
Part Number
C30724EH-2

C30724EH-2 - Si APD, 500um, TO, 905nm filter

The C30724EH-2 Silicon Avalanche Photodiode (Si APD) provides a 905 nm filter and low-temperature coefficient in a metal TO-housing.
Excelitas C39737LH Silicon APD in LCC package
Part Number
C30737LH-300-73N

C30737LH-300-73N - Si APD, 300um, LCC, 650nm filter

The C30737LH-300-73N Silicon Avalanche Photodiode (APD) provides a 300 µm active diameter with enhanced 800nm response and a 650 nm optical bandpass in a leadless ceramic carrier (LCC).
C39737LH Silicon APD in LCC package
Part Number
C30737LH-300-72N

C30737LH-300-72N - Si APD, 300um, LCC, 905nm filter

The C30737LH-300-72N Silicon Avalanche Photodiode (Si APD) provides a 300 µm active diameter with enhanced 800nm response and 905 nm optical bandpass in a leadless ceramic carrier (LCC).
C39737LH Silicon APD in LCC package
Part Number
C30737LH-300-71N

C30737LH-300-71N - Si APD, 300um, LCC, 635nm filter

The C30737LH-300-71N Silicon Avalanche Photodiode (Si APD) provides a 300 µm active diameter with an enhanced 800 nm response and 635 nm optical bandpass in a leadless ceramic carrier (LCC).
C39737LH Silicon APD in LCC package
Part Number
C30737LH-300-70N

C30737LH-300-70N - Si APD, 300um, LCC

The C30737LH-300-70N Silicon Avalanche Photodiode (Si APD) provides an active diameter of 300 µm and enhanced 800 nm response in a leadless ceramic carrier (LCC).
C39737LH Silicon APD in LCC package.
Part Number
C30737LH-230-92N

C30737LH-230-92N - Si APD, 230um, LCC, 905nm filter, 900nm enhanced

The C30737LH-230-92N Silicon Avalanche Photodiode (Si APD) provides an active diameter of 230 µm with enhanced 900nm response and a 905 nm optical bandpass in a leadless ceramic carrier (LCC).
Excelitas C39737LH Silicon APD in LCC package
Part Number
C30737LH-230-90N

C30737LH-230-90N - Si APD, 230um, LCC, 900nm enhanced

The C30737LH-230-90N Silicon Avalanche Photodiode (Si APD) provides an active diameter of 230 µm with enhanced 900 nm response in a leadless ceramic carrier (LCC).
C39737LH Silicon APD in LCC package
Part Number
C30737LH-230-83N

C30737LH-230-83N - Si APD, 230um, LCC, 800nm enhanced, 650nm filter

The C30737LH-230-83N Silicon Avalanche Photodiode (Si APD) provides an active diameter of 230 µm, enhanced 800nm response and 650 nm optical bandpass in a leadless ceramic carrier (LCC).
Excelitas C39737LH Silicon APD in LCC package.
Part Number
C30737LH-230-81N

C30737LH-230-81N - Si APD, 230um, LCC, 800nm enhanced, 635nm filter

The C30737LH-230-81N Silicon Avalanche Photodiode (SI APD) provides enhanced 800 nm response with an active diameter of 230 µm and a 635 nm optical bandpass in a leadless ceramic carrier (LCC).
Excelitas C39737LH Silicon APD in LCC package
Part Number
C30737LH-230-80N

C30737LH-230-80N - Si APD, 230um, LCC, 800nm enhanced

The C30737LH-230-80N Silicon Avalanche Photodiode (Si APD) offers enhanced 800 nm response with an active diameter of 230 µm in a leadless ceramic carrier (LCC).
C39737LH Silicon APD in LLC FR4 Side-looking package
Part Number
C30737CH-300-70

C30737CH-300-70 - Si APD, 300um, LLC side-looking

The C30737CH-300-70 Silicon Avalanche Photodiode (Si APD) provides a 300 µm active diameter with enhanced 800 nm response in a leadless laminated carrier (LCC).
Excelitas C30724PH Silicon APDs
Part Number
C30724PH

C30724PH - Si APD, 500um, Plastic

The C30724PH Silicon Avalanche Photodiode (Si APD) offers 920 nm peak sensitivity and a low-temperature coefficient in a plastic TO-housing.
Excelitas C39737PH Silicon APD in plastic package
Part Number
C30737PH-500-90N

C30737PH-500-90N - Si APD, 500um, Plastic, 900nm enhanced

The C30737PH-500-90N Silicon Avalanche Photodiode (APD) provides an active diameter 500 µm with enhanced 900 nm response in a plastic T 1¾ package.
