PART/ C30737PH-230-90N
C30737PH-230-90N - Si APD, 230um, Plastic, 900nm enhanced

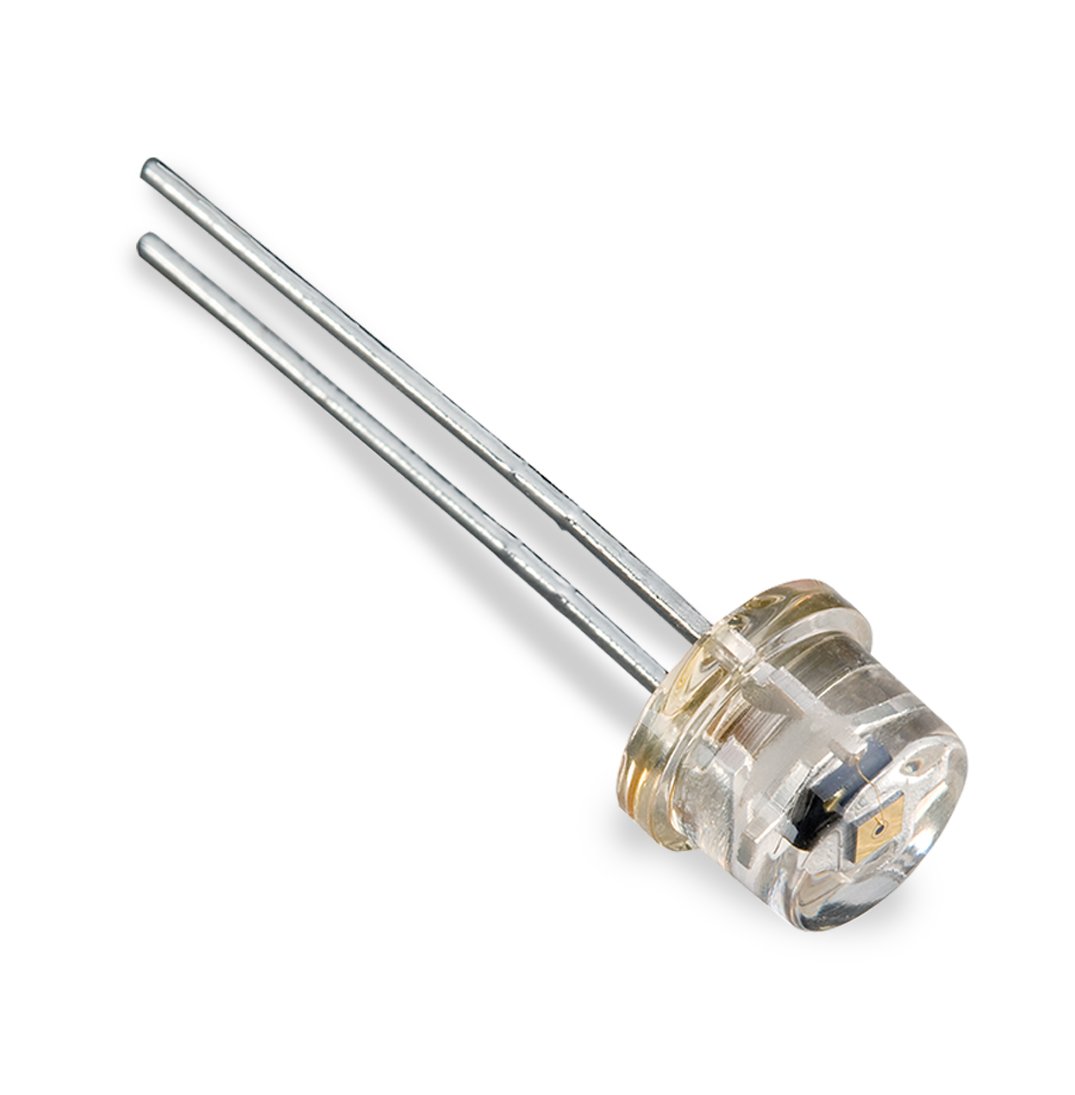

The C30737PH-230-90N Silicon Avalanche Photodiode (Si APD) provides an active diameter of 230 µm and enhanced 900 nm response in a Plastic T 1¾ package.
Key Features:
- High responsivity between 500 and 1000 nm
- Low noise and extremely fast rise times at all wavelengths with a frequency response above 380MHz
- Active diameter of 230μm and optimized for 900 nm peak sensitivity
- Plastic T 1-3/4 option "PH"
Applications:
- LiDAR
- Laser-range finding
- Security scanning
- Applications requiring a low-cost, high-performing detector
- Active Diameter: 230μm
- Peak Sensitivity Wavelength: 900 nm
- Breakdown Voltage Vbd: 180-260
- Temperature Coefficient of Vop for Constant M: 1.3 V/°C
- Gain: 100 @900nm
- Responsivity: 60 A/W at 800 nm
- Dark Current Id: 0.05 <0.5 nA
- Noise Current: 0.1 pA/√Hz
- Capacitance: 0.6 pF
- Rise/Fall Time: 0.9 ns R load = 50Ω
- Cut: off Frequency: 380 MHz
- Storage Temp: -50°C to +100°C
- Operating Temp: -40°C to +85°C
- Package: Plastic T 1¾ through-hole
