PART/ C30737LH-300-72N

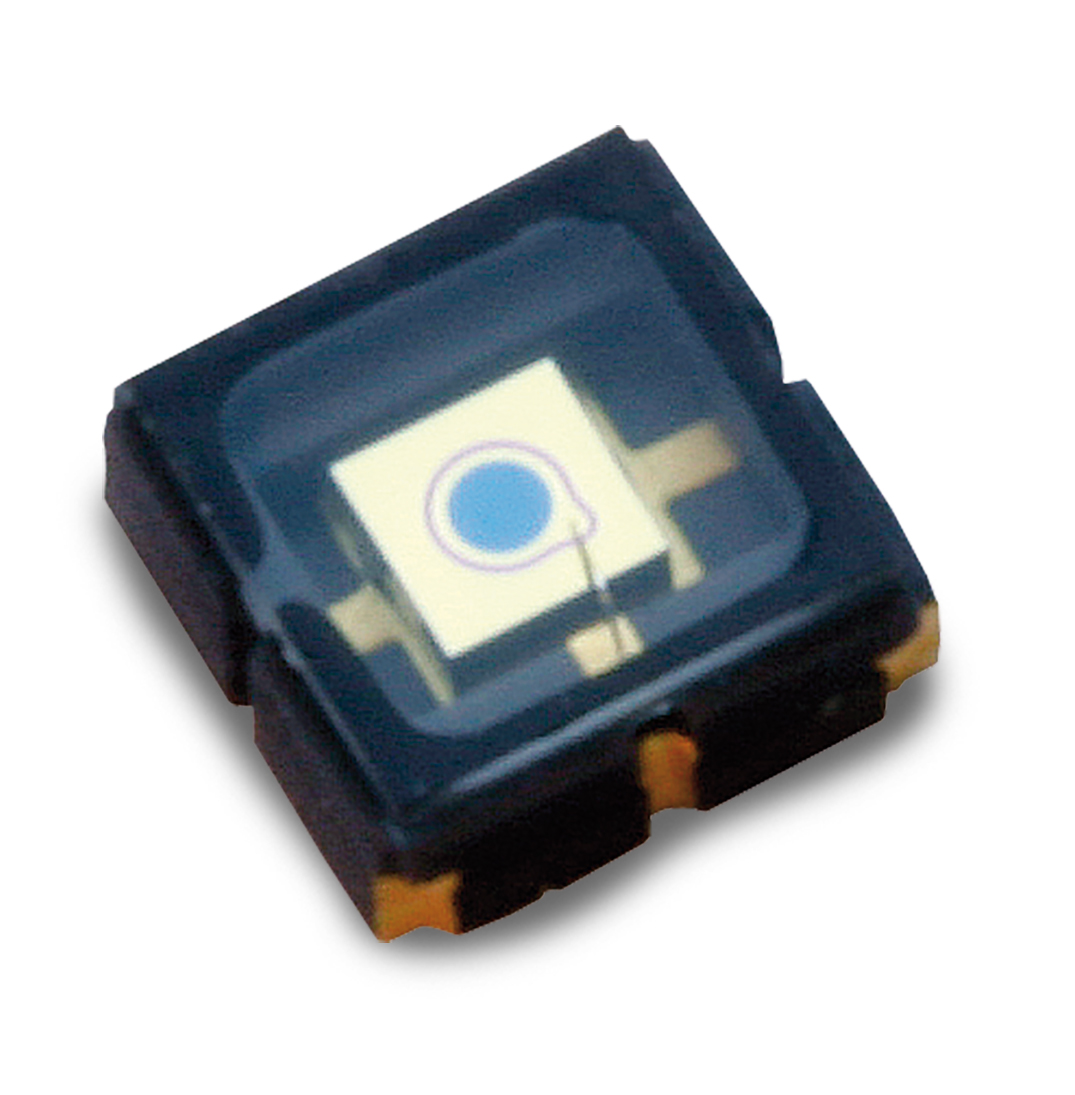

C30737LH-300-72N - Si APD, 300um, LCC, 905nm filter
The C30737LH-300-72N Silicon Avalanche Photodiode (Si APD) provides a 300 µm active diameter with enhanced 800nm response and 905 nm optical bandpass in a leadless ceramic carrier (LCC).
Key Features:
- High responsivity filtered at 905nm
- Low noise and extremely fast rise time at all wavelengths with a frequency response above 700 MHz
- Active diameter of 300μm and optimized for 800 nm
- Optical bandpass filter at 905nm
- Leadless ceramic carrier option "LH"
Applications:
- Laser-range finding
- Distance meters
- Area and security scanning
- Applications requiring a low-cost, high-performing detector
- Active Diameter: 300μm
- Peak Sensitivity Wavelength: 905 nm
- Breakdown Voltage Vbd: 110-165
- Temperature Coefficient of Vop for Constant M: 0.6V/°C
- Gain: 100 @ 800 nm
- Responsivity: 35A/W at 905 nm
- Dark Current Id: 1 nA
- Noise Current: 0.2 pA/√Hz
- Capacitance: 0.7 pF
- Cut-off Frequency: 700 MHz
- Storage Temp: -40°C to +100°C
- Operating Temp: -20°C to +60°C
- Package: 3x3mm glass window leadless ceramic carrier (LCC)
- Window: 905 nm filter window
- Active Diameter: 300μm
- Peak Sensitivity Wavelength: 905 nm
- Breakdown Voltage Vbd: 110-165
- Temperature Coefficient of Vop for Constant M: 0.6V/°C
- Gain: 100 @ 800 nm
- Responsivity: 35A/W at 905 nm
- Dark Current Id: 1 nA
- Noise Current: 0.2 pA/√Hz
- Capacitance: 0.7 pF
- Cut-off Frequency: 700 MHz
- Storage Temp: -40°C to +100°C
- Operating Temp: -20°C to +60°C
- Package: 3x3mm glass window leadless ceramic carrier (LCC)
- Window: 905 nm filter window
