LINOS Base Plate X 95
The LINOS® Base Plate X 95 delivers a solid foundation for optical rail systems, ensuring precise alignment and dependable stability. Its robust design minimizes vibration, supporting high-accuracy optical setups in research and industrial environments. Seamlessly compatible with the X 95 rail profile, it enables flexible system expansion and easy reconfiguration. For complex assemblies and precision experiments, the base plate provides the reliability and durability needed for consistent, repeatable results.
Engineered for maximum stability, the LINOS Base Plate X 95 is essential for secure mounting in demanding optical applications. Its rigid construction supports accurate positioning and long-term performance.
- Reduced vibration for improved measurement accuracy
- Modular integration with X 95 rail profiles for versatile setups

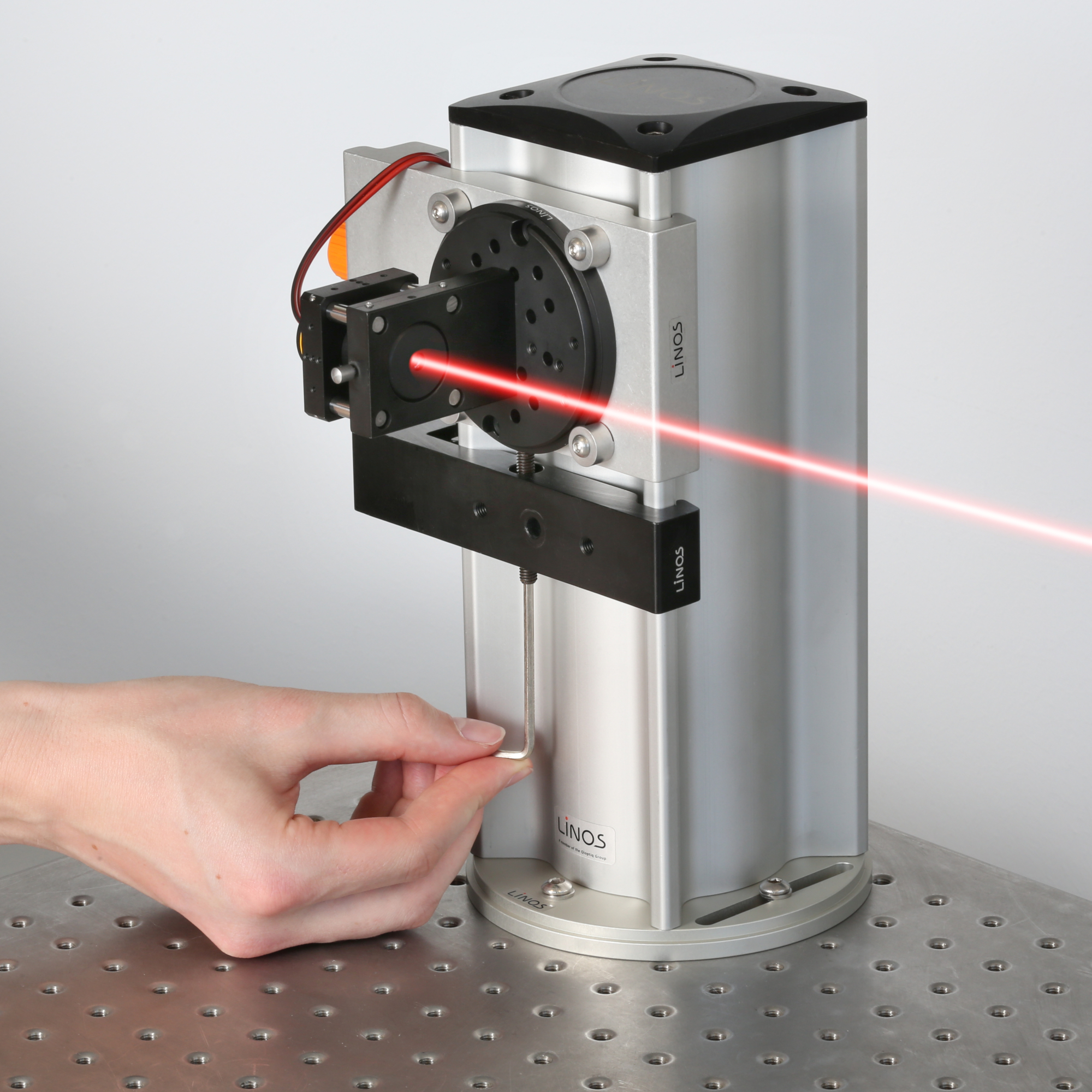

Application Example: An X 95 Profile with an attached alignment laser is mounted vertically on an optical table using the Base Plate X 95.
| Product | Base plate X 95, round, colorless | Base plate X 95, angular, black |
| Width | 120.0 mm | |
| Height | 10.0 mm | 10.0 mm |
| Weight (kg) | 0.38 | 0.38 |
| Material / Finishing | Colorless Anodized Aluminum | Black Anodized Aluminum |
| Outer Mount Diameter | 135.0 mm | |
| Threads / Boreholes | Ø6.6 mm□63 mm | Ø6.6 mm□63 mm |
| Part Number | G026206000 | G026205000 |
- Flexible positioning with slotted holes
M6 mounting screws included
- Black or colorless anodizing
Easy clamping with clamps SP4 (part number: G085922000)
- Optical Benches
- Measurement Systems
- Mechanical Engineering
Base Plate X 95 Black
