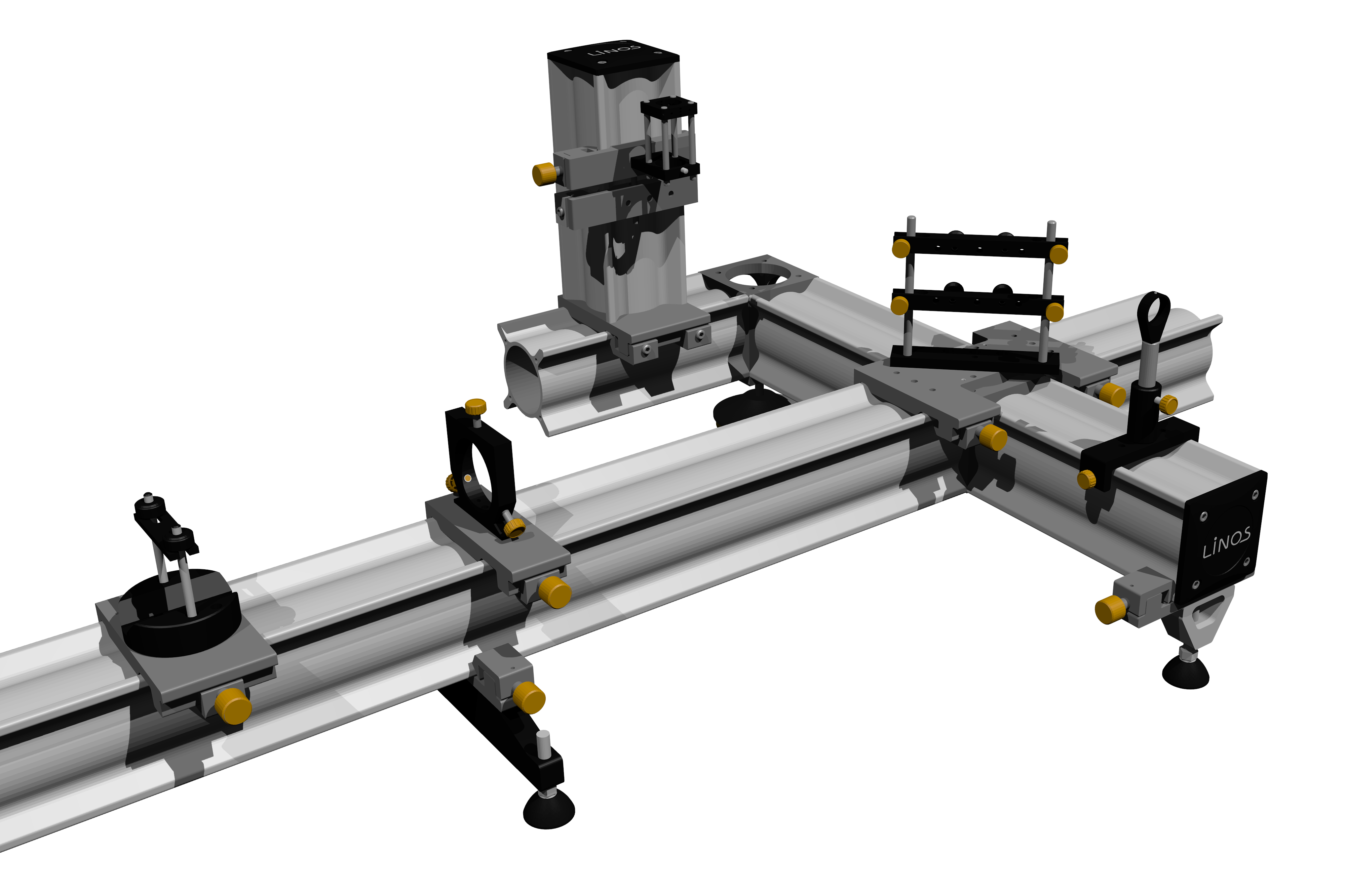

LINOS Profile System X 95
The LINOS® Profile System X 95 is a versatile solution for building stable optical benches, tables and framework structures. Its modular design enables easy assembly of complex three-dimensional setups, making it ideal for research laboratories and precision engineering environments. With smooth-gliding carriers and robust profiles, the system ensures accurate alignment and reliable support for sensitive optical components. Whether you need a compact bench or a large-scale structure, the X 95 Profile System offers flexibility, strength, and precision for demanding optical and mechanical applications.
Engineered for durability and adaptability, the LINOS Profile System X 95 combines hollow aluminum profiles with reinforced ribs for exceptional rigidity and torsional strength. Carriers equipped with spring-loaded clamps allow smooth, backlash-free movement for precise positioning.
- Modular design for easy assembly of optical benches and frameworks
- Compatible with vibration-isolation platforms for enhanced stability

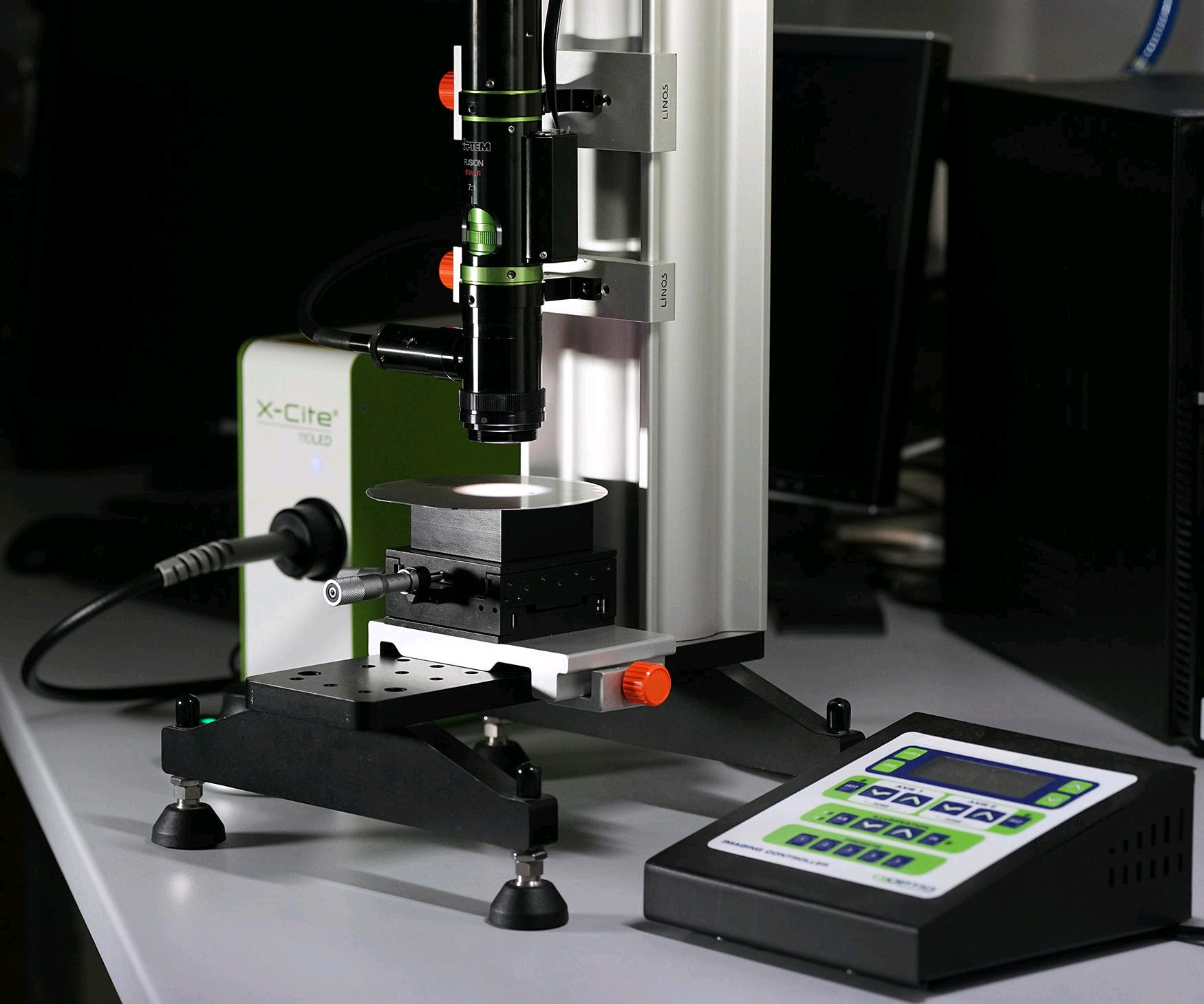

Application Example: X 95-Rail System components with Optem FUSION Lens System.
Application Example: X 95 setup with various construction elements and mounts.
| Product | Profile X 95; 3000 mm | Profile X 95; 250 mm | Profile X 95; 500 mm | Profile X 95; 640 mm | Profile X 95; 750 mm | Profile X 95; 1000 mm | Profile X 95; 1500 mm | Profile X 95; 2000 mm | Profile X 95; 2500 mm |
| Length | 3000.0 mm | 250.0 mm | 500.0 mm | 640.0 mm | 750.0 mm | 1000.0 mm | 1500.0 mm | 2000.0 mm | 2500.0 mm |
| Width | 95.0 mm | 95.0 mm | 95.0 mm | 95.0 mm | 95.0 mm | 95.0 mm | 95.0 mm | 95.0 mm | 95.0 mm |
| Height | 95.0 mm | 95.0 mm | 95.0 mm | 95.0 mm | 95.0 mm | 95.0 mm | 95.0 mm | 95.0 mm | 95.0 mm |
| Weight (kg) | 16.2 | 1.4 | 2.7 | 3.4 | 4.1 | 5.4 | 8.1 | 10.8 | 13.5 |
| Material / Finishing | Colorless Anodized Aluminum | Colorless Anodized Aluminum | Colorless Anodized Aluminum | Colorless Anodized Aluminum | Colorless Anodized Aluminum | Colorless Anodized Aluminum | Colorless Anodized Aluminum | Colorless Anodized Aluminum | Colorless Anodized Aluminum |
| Part Number | G026125300 | G026102000 | G026105000 | G026106000 | G026107000 | G026110000 | G026115000 | G026120000 | G026125000 |
For assembly of tables or framework structures
Mounting on vibration-isolation platforms or columns for vibration-free, precise positioning
Hollow extrusions with a cruciform arrangement of longitudinal ribs
Supports assembly of three-dimensional structures
Smooth-gliding carriers with spring-loaded clamps for easy positioning and secure, automatic locking
Easy assembly
