LINOS Cross Carrier X 95
The LINOS® Cross Carrier X 95 is an ideal solution for mounting components at the intersection of two optical axes, such as beam steering mirrors or beamsplitters. Designed for precision and flexibility, it enables accurate alignment and stable positioning in complex optical setups. Its smooth gliding action ensures effortless adjustments without jolts, making it ideal for sensitive experiments and modular assemblies. Built for durability and ease of use, the Cross Carrier X 95 delivers reliable performance for research laboratories and industrial applications where precision and repeatability are essential.
Engineered for demanding optical configurations, the LINOS Cross Carrier X 95 combines spring-loaded clamps with Teflon-coated guide surfaces for smooth, backlash-free movement. Two anvil clamps provide rigid mounting, while the integrated locking mechanism ensures secure fixation during operation.
- Enables precise component positioning at intersecting optical axes
- Smooth, controlled adjustments for accurate alignment

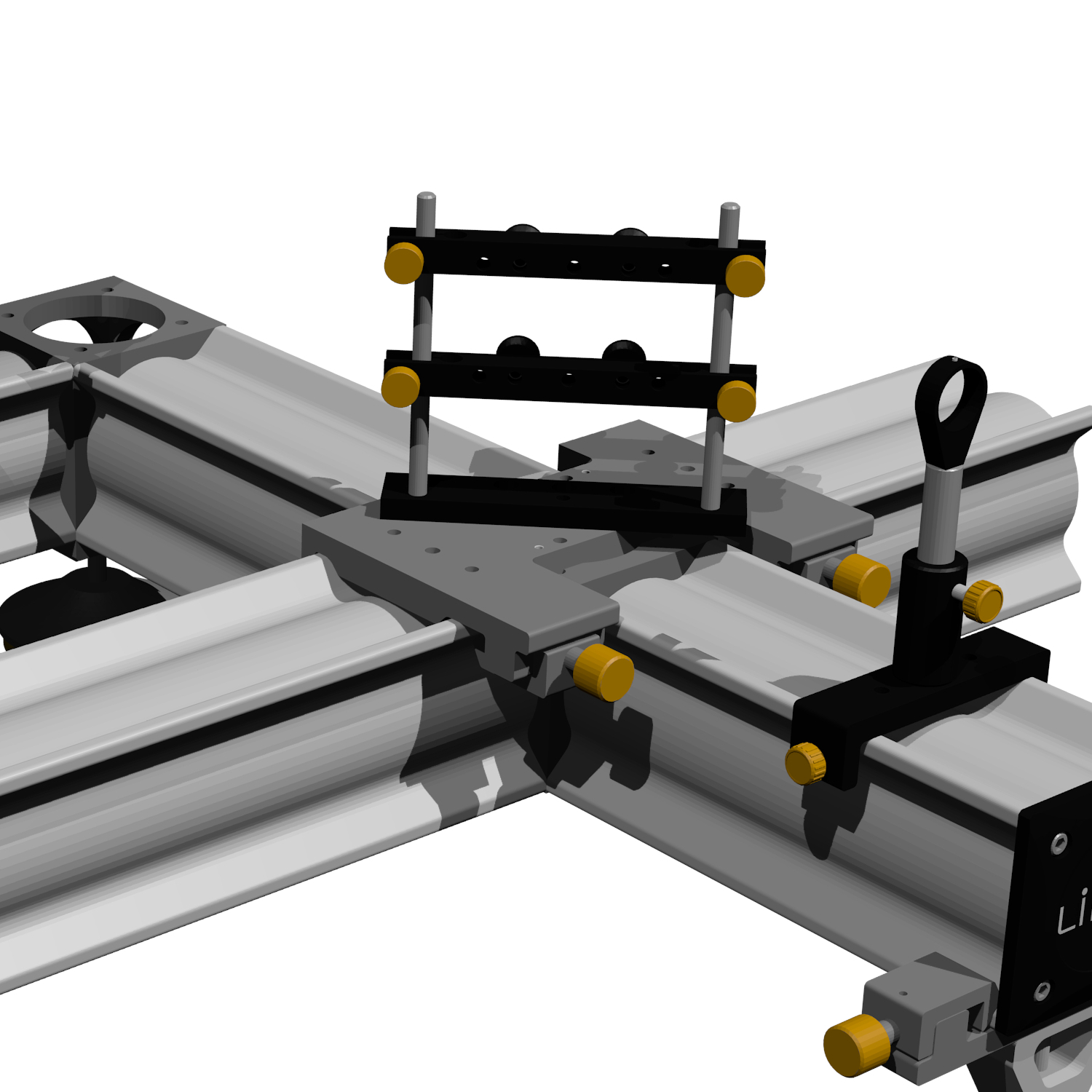

Application Example: The Cross Carrier X 95 enables integration of the Frame Holder 100-M with the X 95 Profile System.
| Product | Cross Carrier X 95, Colorless | Cross Carrier X 95, Black |
| Width | 200.0 mm | 200.0 mm |
| Weight (kg) | 1.01 | 1.01 |
| Material / Finishing | Colorless Anodized Aluminum | Black Anodized Aluminum |
| Threads / Boreholes |
M4 M6□50 mm Ø6.6 mm |
M4 M6□50 mm Ø6.6 mm |
| Part Number | G026424000 | G026524000 |
For mounting components at the intersection of two optical axes, such as beam-steering mirrors or beamsplitters
Teflon-coated guide surfaces for smooth motion and long service life
Anvil/clamping screw locking mechanisms for stable positioning
Two anvil clamps for rigid mounting
Spring-loaded clamps for smooth gliding
Ø 6.6 mm center bore for mounting posts or similar devices
M6 threaded hole for top mounting; 50 mm hole pattern
Bottom mounting with counterbored holes for M4 screws; 50 mm hole pattern
M4 mounting threads with a 63 mm hole pattern for mounting plate MP 80
