LINOS Carriers X 95

LINOS Carrier X 95

The LINOS® Carrier X 95 is designed for smooth, precise positioning of optical components on X 95 profiles and FLS 95 rails. Its advanced clamping system enables backlash-free adjustment for high-precision optical setups in research and industrial environments. With a robust design and durable finish, this carrier provides long-term reliability and flexibility for modular assemblies. The X 95 Carrier supports complex optical paths and stable experimental setups with the accuracy and ease of use needed for consistent, repeatable results.

Contact Us Buy Now at Digikey

The LINOS Carrier X 95 combines spring-loaded clamps with Teflon-coated surfaces for smooth gliding and secure fixation. Its locking mechanism provides stable positioning during operation, while optional hole patterns allow integration of mounting plates and accessories.

  • Smooth, backlash-free movement for accurate alignment
  • Modular compatibility for flexible system configurations

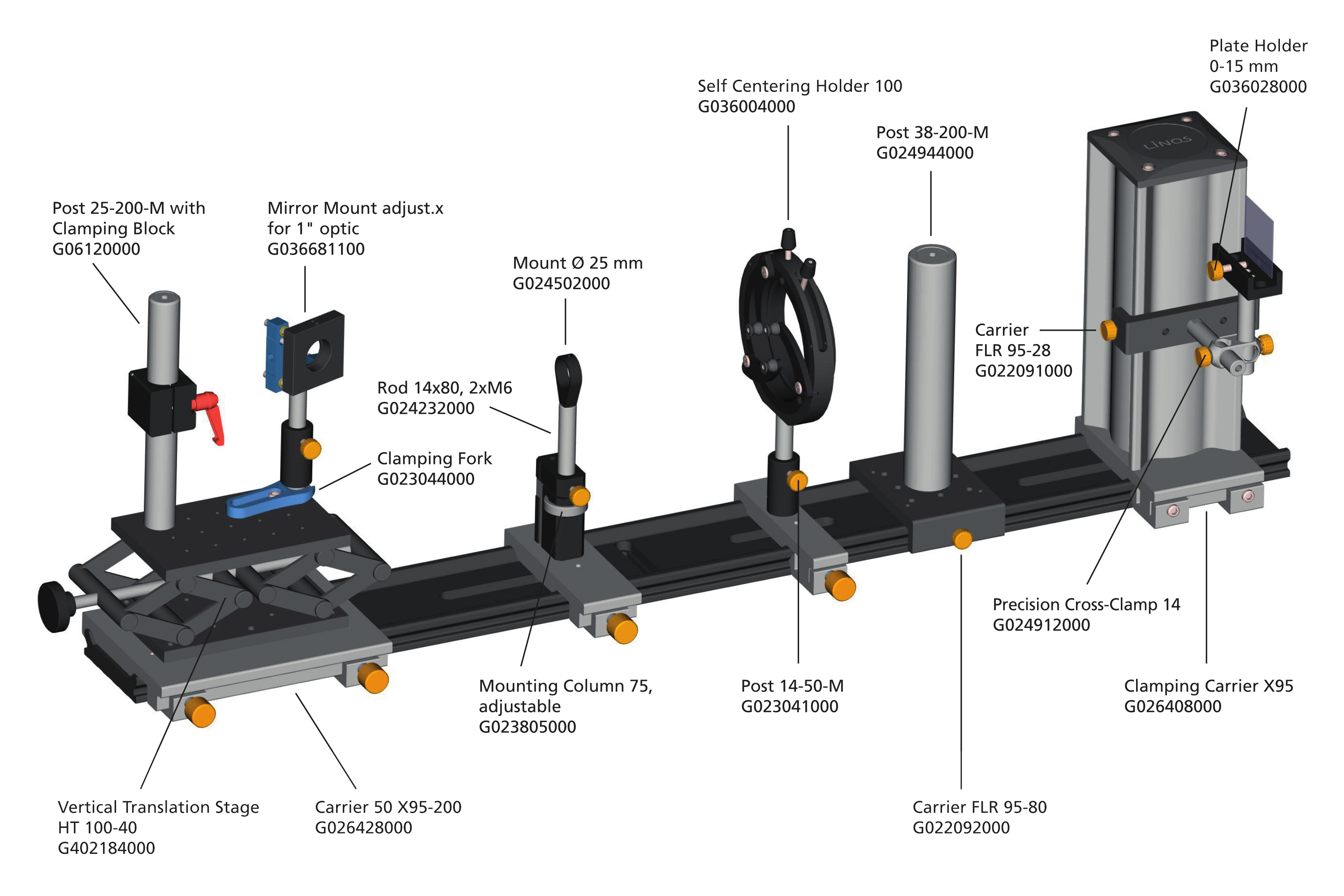

Application example: Combination of rails and carriers from the Flat Rail System 95 with the X 95 components and various optomechanical components in an optical bench set-up

Application Example: A combination of rails and carriers from the Flat Rail System 95 is used with X 95 components and various optomechanical components in an optical bench setup.

Product Carrier X 95-30, colorless, w/ hole pattern Carrier X 95-30, black, w/ hole pattern Carrier X 95-30, colorless, w/o hole pattern Carrier X 95-30, black, w/o hole pattern Carrier X 95-50, colorless, w/ hole pattern Carrier X 95-50, black, w/ hole pattern Carrier X 95-50, colorless, w/o hole pattern Carrier X 95-80, colorless, w/ hole pattern Carrier X 95-50, black, w/o hole pattern Carrier X 95-80, black, w/ hole pattern Carrier X 95-80, colorless, w/o hole pattern Carrier X 95-80, black, w/o hole pattern Carrier X 95-120, colorless, w/ hole pattern Carrier X 95-120, black, w/ hole pattern Carrier X 95-120, colorless, w/o hole pattern Carrier X 95-120, black, w/o hole pattern Carrier X 95-200, colorless, w/ hole pattern Carrier X 95-200, black, w/ hole pattern Carrier X 95-200, colorless, w/o hole pattern Carrier X 95-200, black, w/o hole pattern Carrier X 95-300, colorless, w/ hole pattern Carrier X 95-300, black, w/ hole pattern Carrier X 95-300, colorless, w/o hole pattern Carrier X 95-300, black, w/o hole pattern
Width 30.0 mm 30.0 mm 30.0 mm 30.0 mm 50.0 mm 50.0 mm 50.0 mm 80.0 mm 50.0 mm 80.0 mm 80.0 mm 80.0 mm 120.0 mm 120.0 mm 120.0 mm 120.0 mm 200.0 mm 200.0 mm 200.0 mm 200.0 mm 300.0 mm 300.0 mm 300.0 mm 300.0 mm
Weight (kg) 0.24 0.24 0.24 0.24 0.37 0.37 0.38 0.54 0.38 0.54 0.57 0.57 0.78 0.77 0.81 0.8 1.32 1.3 1.3 1.3 1.88 1.8 1.9 1.9
Material / Finishing Colorless Anodized Aluminum Black Anodized Aluminum Colorless Anodized Aluminum Black Anodized Aluminum Colorless Anodized Aluminum Black Anodized Aluminum Colorless Anodized Aluminum Colorless Anodized Aluminum Black Anodized Aluminum Black Anodized Aluminum Colorless Anodized Aluminum Black Anodized Aluminum Colorless Anodized Aluminum Black Anodized Aluminum Colorless Anodized Aluminum Black Anodized Aluminum Colorless Anodized Aluminum Black Anodized Aluminum Colorless Anodized Aluminum Black Anodized Aluminum Colorless Anodized Aluminum Black Anodized Aluminum Colorless Anodized Aluminum Black Anodized Aluminum
Threads / Boreholes M6
Ø6.6 mm 		M6
Ø6.6 mm 		None None M6
Ø6.6 mm 		M6
Ø6.6 mm 		None M4□63 mm
M6□50 mm
Ø6.6 mm 		None M4□63 mm
M6□50 mm
Ø6.6 mm 		None None M4□63 mm
M6□50 mm
Ø6.6 mm 		M4□63 mm
M6□50 mm
Ø6.6 mm 		None None M4□63 mm
M6□50 mm
Ø6.6 mm 		M4□63 mm
M6□50 mm
Ø6.6 mm 		None None M6
Ø6.6 mm 		M6
Ø6.6 mm 		None None
Part Number G026420000 G026519000 G026412000 G026512000 G026421000 G026521000 G026413000 G026422000 G026513000 G026522000 G026414000 G026514000 G026423000 G026523000 G026416000 G026516000 G026428000 G026528000 G026417000 G026517000 G026429000 G026529000 G026418000 G026518000

  • Carrier for profile X 95 and rail FLS 95

  • Smooth gliding enabled by spring-loaded clamps and Teflon-coated surfaces

  • Anvil/clamping screw locking mechanisms for stable positioning

  • Available with or without a hole pattern

  • Ø 6.6 mm center bore for securing posts or similar devices

  • M4 mounting threads, 63 mm hole pattern, for mounting the MP 80 mounting plate and mounting bases

  • M6 threaded hole for top mounting, with a 50 mm hole pattern

  • Bottom mounting with counterbored holes for M4 screws, with a 50 mm hole pattern

Carrier X 95-50, Black, w/o Hole Pattern
Carrier X 95-300
