LINOS Leveling Foot X 95
The LINOS® Leveling Foot X 95 is designed to provide exceptional stability and vibration isolation for optical frameworks and precision setups. By minimizing external disturbances, it supports accurate alignment and reliable performance in demanding environments. Its adjustable design allows easy leveling of structures, making it ideal for laboratories, production facilities, and applications requiring precise positioning. Designed to support both heavy assemblies and precision optical systems, the X 95 Leveling Foot helps maintain consistent, repeatable results.
Engineered for durability and precision, the LINOS Leveling Foot X 95 combines high load capacity with effective vibration damping for optimal system stability. Height adjustment is simple and secure, enabling quick setup and fine tuning.
- Isolates sensitive optical structures from vibrations
- Adjustable leveling for accurate positioning of X 95 profiles

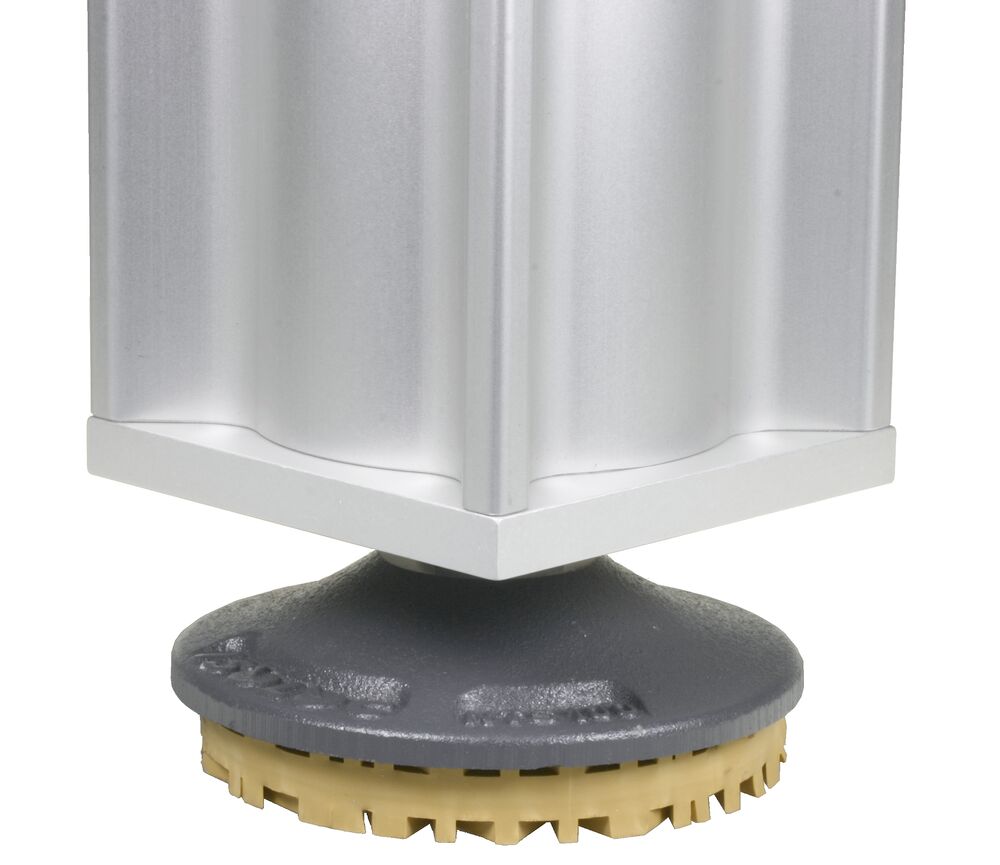

Application Example: Vertical X 95 profiles can be mounted with their front side on the Leveling foot.

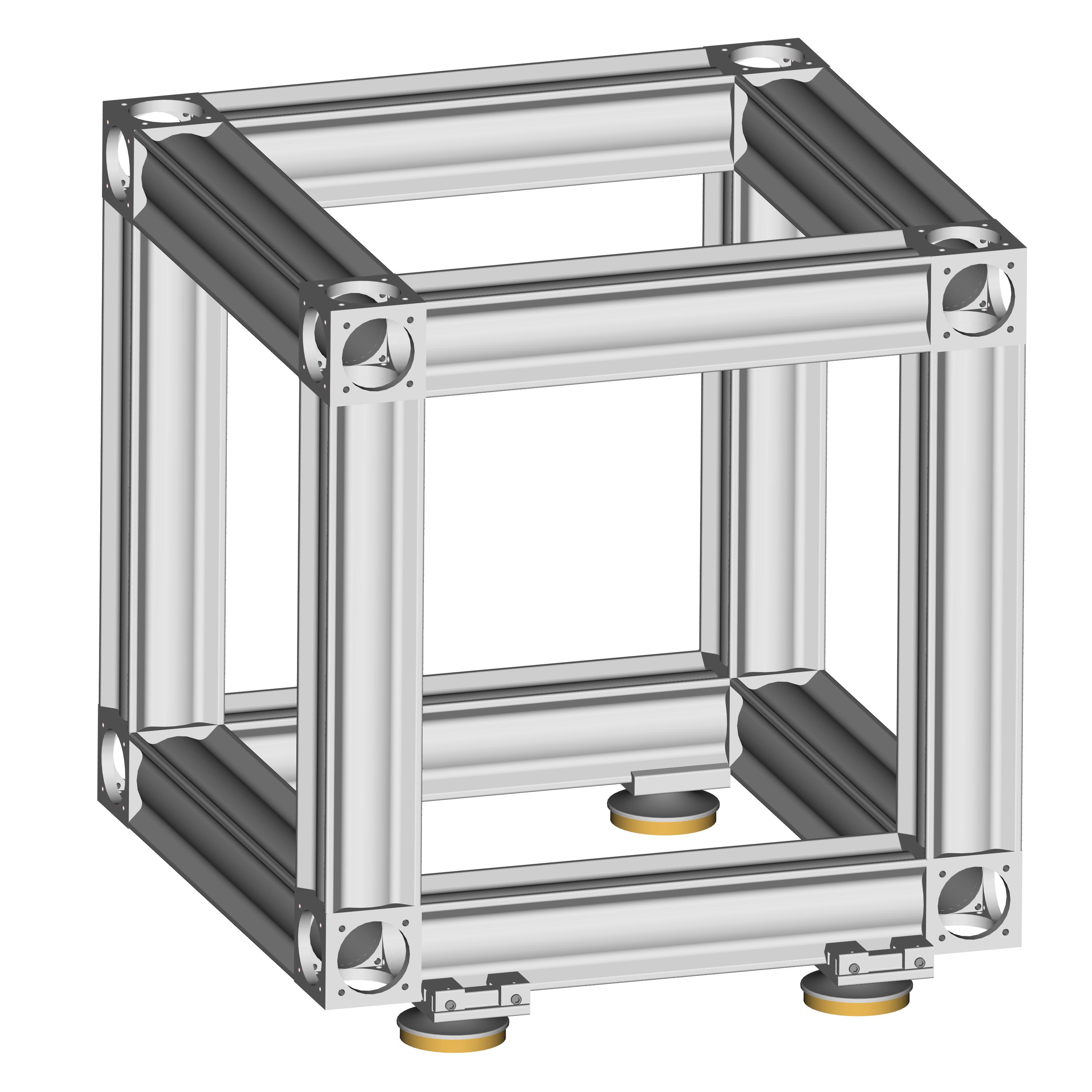

Application Example: Horizontal X 95 Profiles can be put on dampening Leveling discs by mounting clamping carriers (G026408000) on the profiles.
| Product | Leveling Disc X 95 | Leveling Foot X 95 |
| Weight (kg) | 0.83 | 0.03 |
| Threads / Boreholes | None | Ø6.6 mm□63 mm |
| Part Number | G026261000 | G026202000 |
Laminated vibration isolator plate: 100 mm diameter, 15 mm thickness
Maximum load capacity: 3.5 kN
Height adjustment by turning the lower nut
For mounting vertically oriented X 95 profiles
For mounting horizontally oriented X 95 profiles with Clamping Carrier (G026408000)
Included end plate for direct mounting to X 95 profile
LINOS Leveling Foot X 95
Leveling Disc X 95
