PART/ G026218000
LINOS Hinged Connector X 95
The LINOS® Hinged Connector X 95 offers a versatile way to create adjustable connections within X 95 profile structures. Its pivoting design makes it possible to position rails at a wide range of angles, enabling flexible layouts that can adapt to changing requirements. Whether used to position components at a specific orientation or to connect structures that require controlled movement, the hinged connector delivers both precision and stability. Its robust construction and easy mounting process make it a dependable choice for building adaptable assemblies in optical, mechanical, and laboratory environments.
The LINOS Hinged Connector X 95 enables adjustable linkages between profile rails and supports accurate angular positioning through its pivoting interface. It can also be used as a structural cross brace to reinforce assemblies.
- Angle adjustability allows reliable alignment in variable system configurations
- Pivoting design supports both flexible layouts and stable component positioning

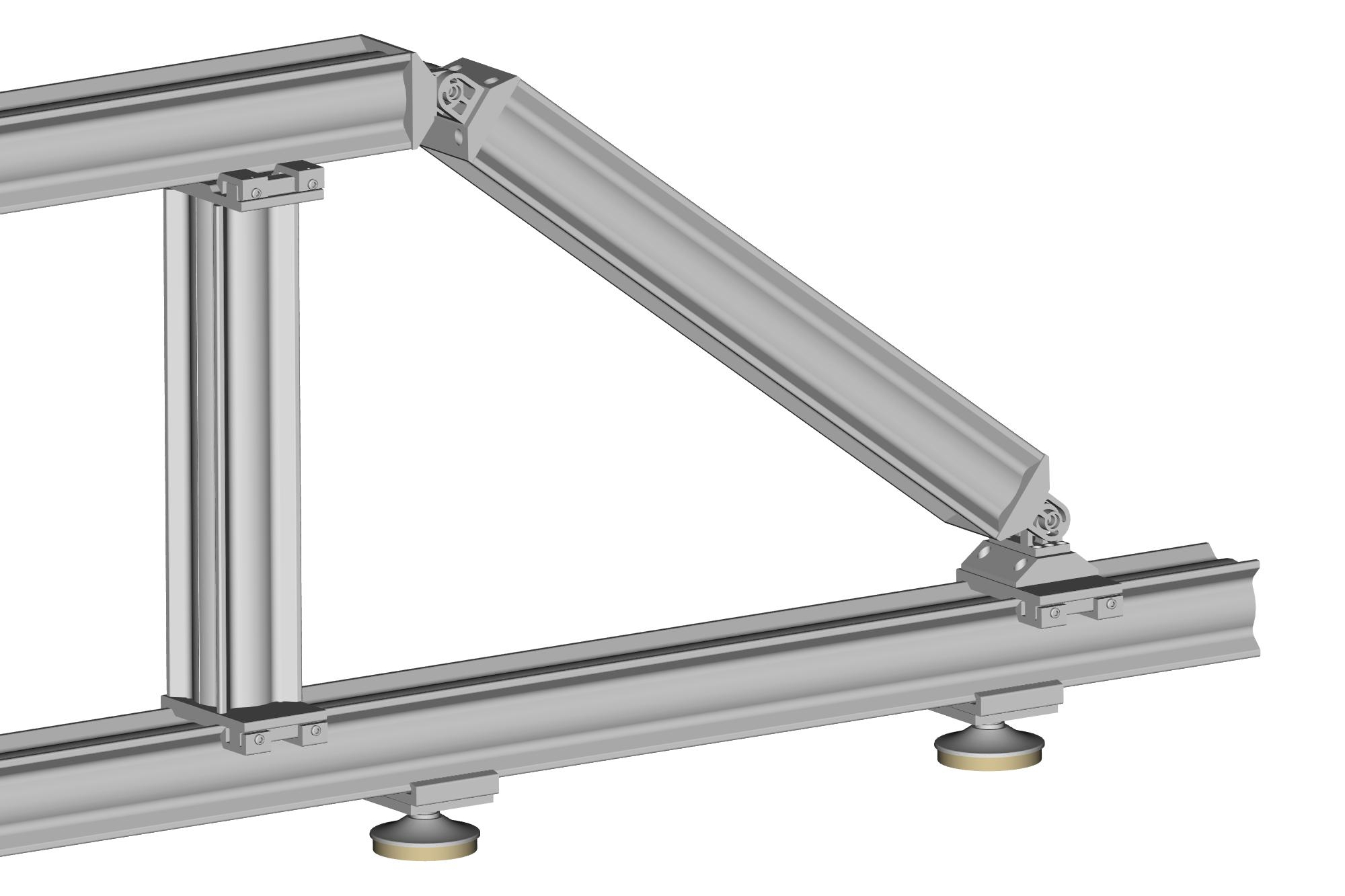

Application Example: The upper X 95 Hinged Connector is used to connect two X 95 Profiles; the lower one connects an X 95 Profile with an X 95 Clamping Carrier.
Allows angular adjustment between two X 95 profile rails for flexible positioning
Serves as a cross brace for X 95 structures to increase structural rigidity
±90° pivot enables precise alignment at variable angles
Supplied with mounting screws for immediate installation
