CERMAX PE300 322BFX 3763 5in SILO

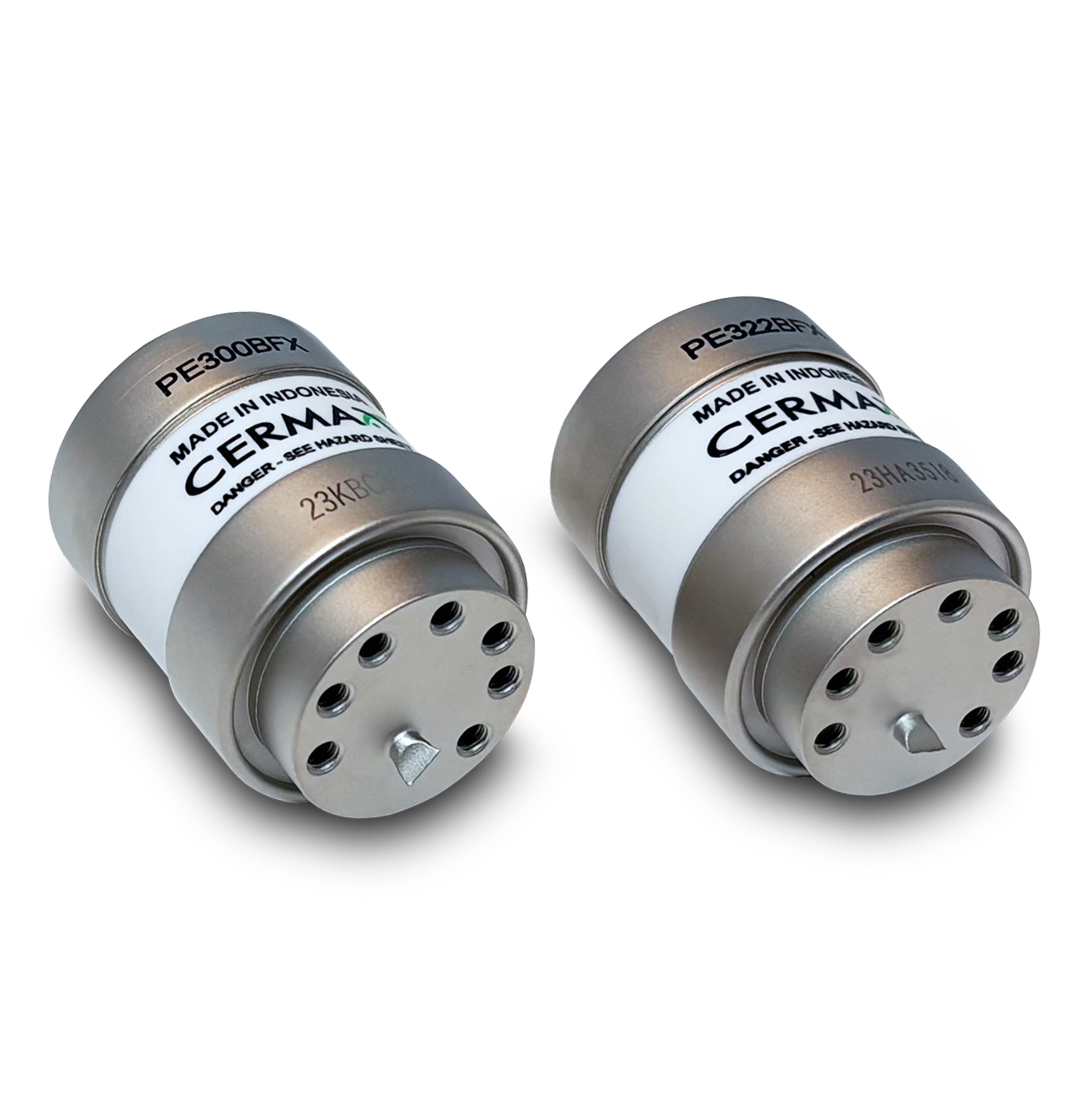

PE300BFX Series Long-life Xenon Ceramic Body Parabolic Lamps, 300W

With new universal 7-hole bases, these 300-watt Cermax® Xenon lamps are designed to fit most ceramic-body xenon lamp applications, providing a versatile solution for a wide range of lighting needs. Incorporating the same robust design that makes Cermax the industry standard, these lamps feature an extended 1000-hour warranty while maintaining the high performance and broad spectral output expected by the most demanding customers.

Contact Us Find a Distributor

The PE300BFX lamp features high-intensity illumination—4,000 Lumens—with a power range of 180-320 Watts. For applications where increased intensity is required, the high-output PE322BFX lamp features a 10% increase in output within the same power range. Both lamps come with a 1,000-hour warranty and boast a broad spectral range with a 5,900 Kelvin color temperature

  • Reflector Type: Parabolic

  • Body Type: Ceramic

  • Total Visible Output: 4000 Lumens, 4650 for the PE322BFX

  • Power - Nominal: 300 Watts

  • Power - Range: 180-320 Watts

  • Current - Nominal: 21 Amps (DC)

  • Current - Range: 10-22 Amps (DC)

  • Ignition Voltage: 23-35 kilovolts (system dependent)

  • Operating Voltage - Nominal: 14 Volts (DC)

  • Operating Voltage - Range: 13-16 Volts (DC)

  • Warranty: 1000 hours

  • Temperature: 150 °C (maximum)

  • Radiant Output: 50 Watts

  • Reflector Type: Parabolic

  • Body Type: Ceramic

  • Total Visible Output: 4000 Lumens, 4650 for the PE322BFX

  • Power - Nominal: 300 Watts

  • Power - Range: 180-320 Watts

  • Current - Nominal: 21 Amps (DC)

  • Current - Range: 10-22 Amps (DC)

  • Ignition Voltage: 23-35 kilovolts (system dependent)

  • Operating Voltage - Nominal: 14 Volts (DC)

  • Operating Voltage - Range: 13-16 Volts (DC)

  • Warranty: 1000 hours

  • Temperature: 150 °C (maximum)

  • Radiant Output: 50 Watts
