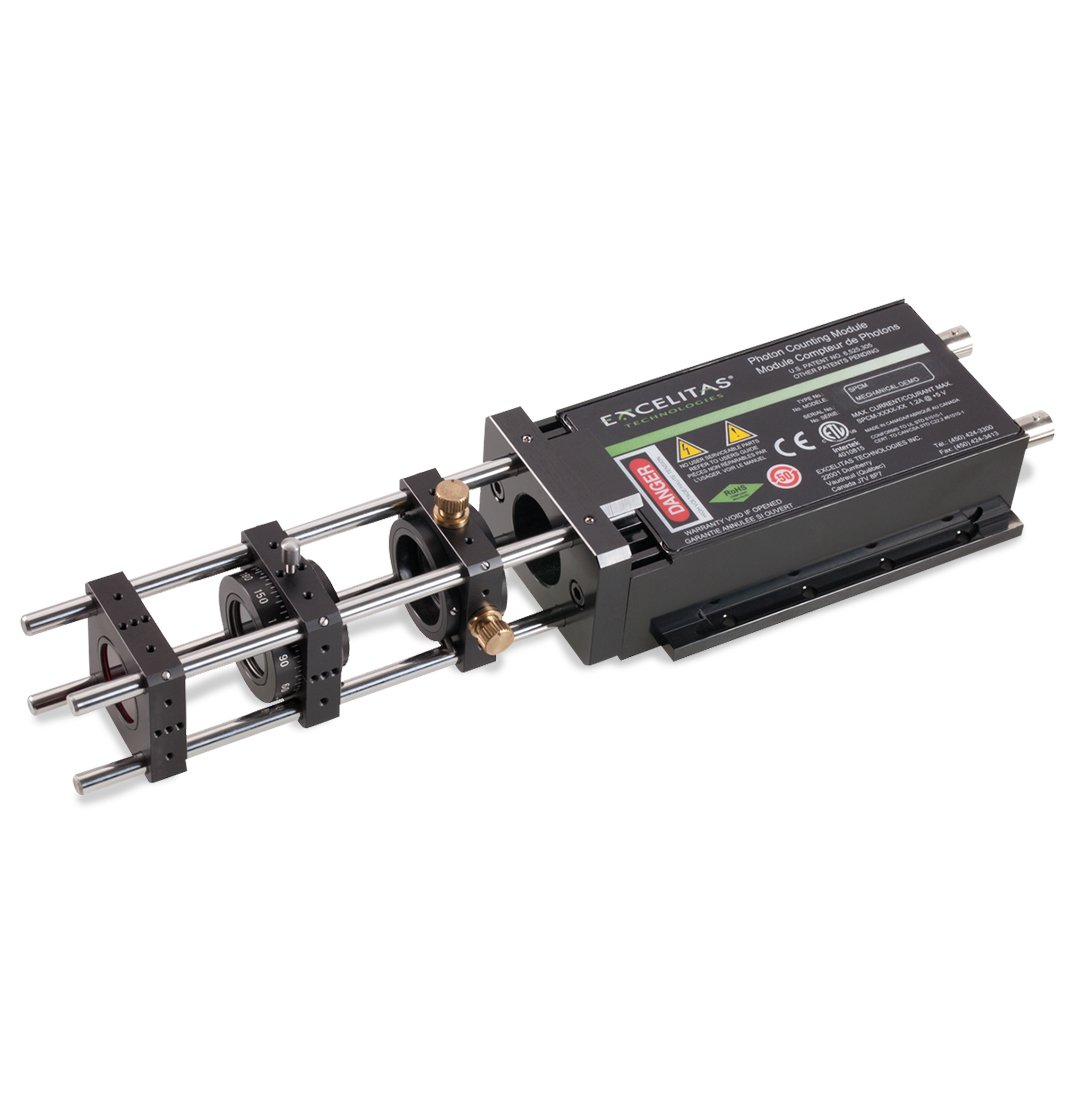

SPCM with optional bracket allowing the easy addition of a cage or tube-mount system for linking to the optical set-up.
PART/ SPCM-AQRH-wx(-FC)

SPCM-AQRH

Excelitas' newly enhanced SPCM-AQRH Single-Photon Counting Module detects single photons over the wavelength range of 400 nm to 1064 nm with performance parameters superior to other solid state or vacuum-tube based photon counters.

The SPCM-AQRH uses a unique silicon avalanche photodiode (SLiK) with a circular active area, achieving peak photon detection efficiency greater than 70% at 650 nm over a 180 µm diameter, with unmatched uniformity over the full active area. A TTL-level pulse is generated for each photon detected and the signal is available at the BNC connector at the rear of the module.

The photodiode is both thermoelectrically cooled and temperature controlled, ensuring stabilized performance despite ambient temperature changes. Operating temperature range has been increased and the module will function with case temperatures between 5ËšC and 70ËšC.

The module comes as standard with a free-space window to the APD, with FC fiber adapter, C-mount or tube cage mount bracket/adapter options.

Recent electronic circuit enhancements have reduced the minimum dead time to less than 25 ns, thereby increasing linearity and improving the dynamic range of the module. Timing resolution of the module was also improved significantly. The SPCM-AQRH has internal protection circuitry that protects the avalanche photodiode and the module electronics from damage due to accidental overload from exposure to ambient lighting.



  • Peak PDE: > 70% @ 650 nm
  • 180 µm active area
  • > 35 Mcps dynamic range
  • Gated output
  • Single +5 V supply
  • RoHS-compliant
  • Low after pulse probability
  • High uniformity over large active area
  • Unmatched linearity
  • Free space window, FC fiber adapter, C-mount bracket, Tube cage mount bracket options



STANDARD SPCM-AQRH-WX OPTION TABLE (ADD -FC FOR REGULAR FC VERSION)
Model Output Pulse Options X - Maximum Dark Count Rates (cps) Optical Mounting Bracket
(Non FC Module only)
SPCM-AQRH-WX (-FC)(-BR_) Output Pulse Width (ns) Dead Time (ns) Output Pulse Height (V) -W0 -W1 -W2 -W3 -W4 -W5 -W6 -BR1 -BR2
SPCM-AQRH-1X 10 24 2.2 1500 1000 500 250 100 50 25 SM1 C-MOUNT
SPCM-AQRH-2X 18 28 2.2 1500 1000 500 250 100 50 25 SM1 C-MOUNT
SPCM-AQRH-3X 28 35 2.2 1500 1000 500 250 100 50 25 SM1 C-MOUNT
SPCM-AQRH-4X 10 24 4.4 1500 1000 500 250 100 50 25 SM1 C-MOUNT
SPCM-AQRH-5X 18 28 4.4 1500 1000 500 250 100 50 25 SM1 C-MOUNT
SPCM-AQRH-6X 28 42 4.4 1500 1000 500 250 100 50 25 SM1 C-MOUNT



  • Peak PDE: > 70% @ 650 nm
  • 180 µm active area
  • > 35 Mcps dynamic range
  • Gated output
  • Single +5 V supply
  • RoHS-compliant
  • Low after pulse probability
  • High uniformity over large active area
  • Unmatched linearity
  • Free space window, FC fiber adapter, C-mount bracket, Tube cage mount bracket options



STANDARD SPCM-AQRH-WX OPTION TABLE (ADD -FC FOR REGULAR FC VERSION)
Model Output Pulse Options X - Maximum Dark Count Rates (cps) Optical Mounting Bracket
(Non FC Module only)
SPCM-AQRH-WX (-FC)(-BR_) Output Pulse Width (ns) Dead Time (ns) Output Pulse Height (V) -W0 -W1 -W2 -W3 -W4 -W5 -W6 -BR1 -BR2
SPCM-AQRH-1X 10 24 2.2 1500 1000 500 250 100 50 25 SM1 C-MOUNT
SPCM-AQRH-2X 18 28 2.2 1500 1000 500 250 100 50 25 SM1 C-MOUNT
SPCM-AQRH-3X 28 35 2.2 1500 1000 500 250 100 50 25 SM1 C-MOUNT
SPCM-AQRH-4X 10 24 4.4 1500 1000 500 250 100 50 25 SM1 C-MOUNT
SPCM-AQRH-5X 18 28 4.4 1500 1000 500 250 100 50 25 SM1 C-MOUNT
SPCM-AQRH-6X 28 42 4.4 1500 1000 500 250 100 50 25 SM1 C-MOUNT
