Timing Resolution Optimized Single-Photon Counting Module
PART/ SPCM-AQRH-WX-TR

SPCM-AQRH-TR

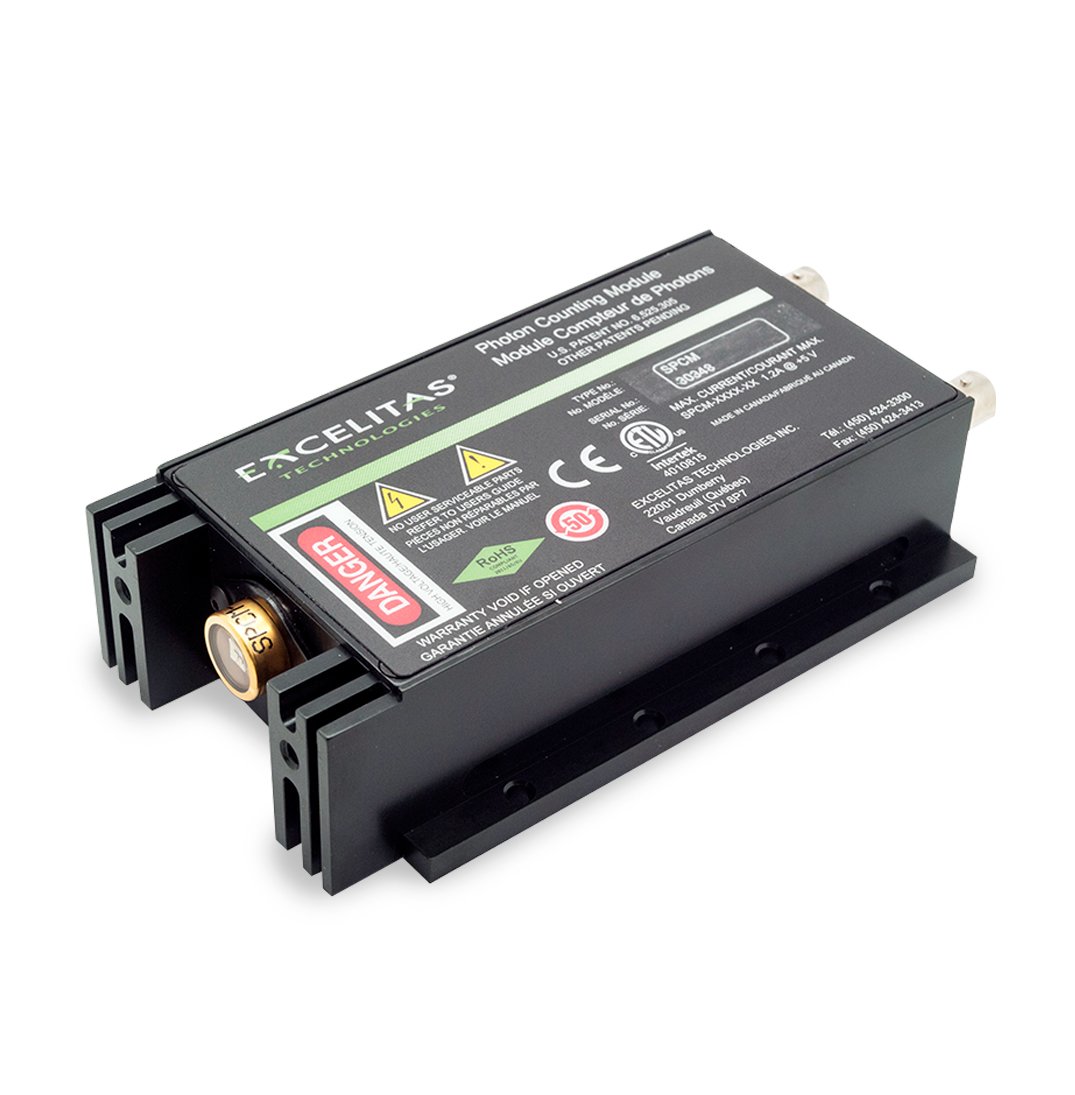

The Excelitas SPCM-AQRH-WX-TR is a Single Photon Counting Module of the latest product generation, specifically selected and performance-optimized for timing resolution. This family of –TR modules is designed to support applications in time-correlated single-photon counting (TCSPC), fluorescence lifetime measurements and fluorescence lifetime imaging microscopy (FLIM).

The SPCM-AQRH-WX-TR uses a specially selected SLiK silicon avalanche photodiode with timing resolution better than 250 ps while maintaining peak photon detection efficiency (PDE) of more than 75% at 650 nm over a 180 µm diameter active area. While some performance parameters, in particular afterpulse probability, are traded off against the optimized timing performance, other performance parameters of the standard SPCM-AQRH, such as outstanding uniformity, overload protection, temperature stability and linearity, are still maintained by this timing-optimized module.





  • Timing resolution <250ps
  • Peak photon detection efficiency (PDE) @ 650 nm: 75% typical
  • Active area: 180 µm
  • Gated output
  • Single +5 V supply
  • RoHS-compliant
  • Linearity over high count rate
TIMING RESOLUTION MODULES SPCM-AQRH-WX-TR OPTION TABLE
Model Output Pulse Options X - Maximum Dark Count Rates Optical Mounting Bracket
(Non FC Module only)
SPCM-AQRH-WX-TR Output Pulse Width (ns) Dead Time (ns) Output Pulse Height (V) -W0 -W1 -W2 -W3 -W4 -BR1 -BR2
SPCM-AQRH-1X-TR 10 24 2.2 1500 1000 500 250 100 SM1 C-MOUNT
SPCM-AQRH-2X-TR 18 28 2.2 1500 1000 500 250 100 SM1 C-MOUNT
SPCM-AQRH-3X-TR 28 35 2.2 1500 1000 500 250 100 SM1 C-MOUNT
SPCM-AQRH-4X-TR 10 24 4.4 1500 1000 500 250 100 SM1 C-MOUNT
SPCM-AQRH-5X-TR 18 28 4.4 1500 1000 500 250 100 SM1 C-MOUNT
SPCM-AQRH-6X-TR 28 35 4.4 1500 1000 500 250 100 SM1 C-MOUNT



  • Timing resolution <250ps
  • Peak photon detection efficiency (PDE) @ 650 nm: 75% typical
  • Active area: 180 µm
  • Gated output
  • Single +5 V supply
  • RoHS-compliant
  • Linearity over high count rate
TIMING RESOLUTION MODULES SPCM-AQRH-WX-TR OPTION TABLE
Model Output Pulse Options X - Maximum Dark Count Rates Optical Mounting Bracket
(Non FC Module only)
SPCM-AQRH-WX-TR Output Pulse Width (ns) Dead Time (ns) Output Pulse Height (V) -W0 -W1 -W2 -W3 -W4 -BR1 -BR2
SPCM-AQRH-1X-TR 10 24 2.2 1500 1000 500 250 100 SM1 C-MOUNT
SPCM-AQRH-2X-TR 18 28 2.2 1500 1000 500 250 100 SM1 C-MOUNT
SPCM-AQRH-3X-TR 28 35 2.2 1500 1000 500 250 100 SM1 C-MOUNT
SPCM-AQRH-4X-TR 10 24 4.4 1500 1000 500 250 100 SM1 C-MOUNT
SPCM-AQRH-5X-TR 18 28 4.4 1500 1000 500 250 100 SM1 C-MOUNT
SPCM-AQRH-6X-TR 28 35 4.4 1500 1000 500 250 100 SM1 C-MOUNT
