X-Cite 110LED Illumination System

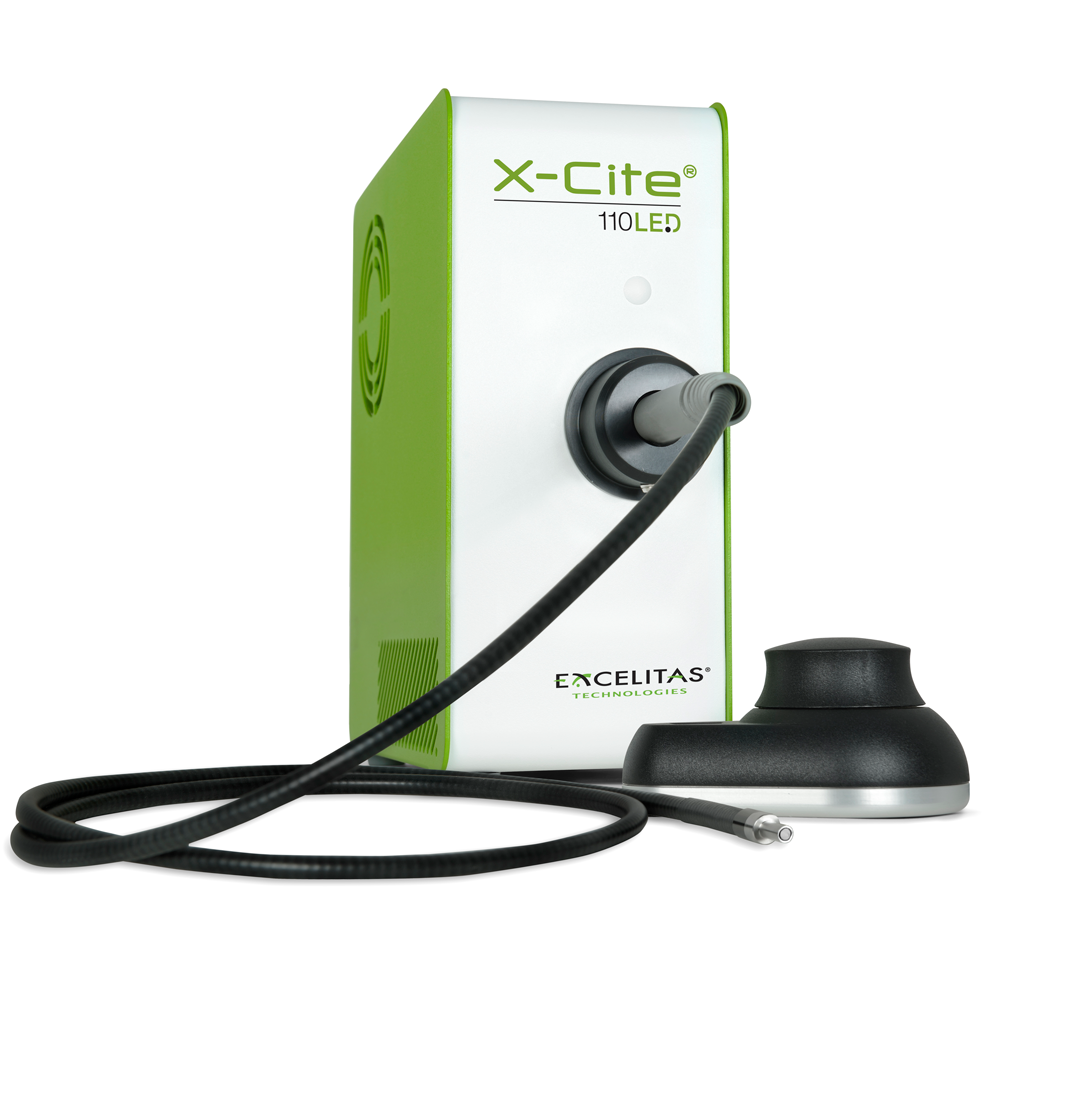

The X-Cite® 110LED is a compact, white light LED light source for fluorescence imaging applications. Providing excitation for DAPI, GFP, mCherry and Cy5 routine imaging, the X-Cite 110LED offers exceptional field uniformity through liquid light guide delivery. With manual, PC and TTL control, the X-Cite 110LED has LEDs guaranteed for 25,000 hours with no lamps or modules to replace.

"We tested the X-Cite 110LED on our white-light Nipkow disk confocal system and found the images to be very bright. Overall, the fluorescence was superior to our other light sources and the system was easy to operate."  Dr. Tim Bromage, Director, Hard Tissue Research Unit, New York University

Features and Benefits:

  • LED Technology: Mercury-free, higher efficiency, stability, instant ON/OFF and long lifetime
  • White Light Excitation: Excitation of commonly used fluorophores such as DAPI, GFP/FITC, mCherry/Texas Red, and Cy5
  • Light Guide Delivery: Flexibility in light delivery as well as unit location
  • Multiple Control Options: Simple operation through USB, TTL or speedDIAL
  • Small Footprint: Minimal space requirement; less bench top real estate used
  • Optimized Thermal Management: Maximum LED output, lifetime, stability and reliability
  • X-Cite Coupling Optics (optional): Efficient optical output and uniformity with the highest performing coupling optics available

Wavelength Range: 360-660nm

LED Peaks/FWHM: 385/30 nm, 475/40 nm, 560/80 nm, 640/40 nm

External Power Supply: Universal input 100-240VAC, 50/60Hz

Power Consumption 160W

LED ON/OFF Response Times: 100μs TTL / 1 ms USB

Control Options:  ON/OFF - TTL compatible, speedDIAL, RS-232 commands (SDK available), USB

I/O Connections: BNC input, USB (B-type)

Dimensions (W x H x D): 95 mm x 230 mm x 212 mm (3.7" x 9.1" x 8.4")

Weight: 3 kg (6.6 lbs)

Certifications: CE, RoHS

Warranty LEDs – 25,000 hours or 3 years; All other X-Cite 110LED components - 1 year, parts and labor (excluding LLG)

Wavelength Range: 360-660nm

LED Peaks/FWHM: 385/30 nm, 475/40 nm, 560/80 nm, 640/40 nm

External Power Supply: Universal input 100-240VAC, 50/60Hz

Power Consumption 160W

LED ON/OFF Response Times: 100μs TTL / 1 ms USB

Control Options:  ON/OFF - TTL compatible, speedDIAL, RS-232 commands (SDK available), USB

I/O Connections: BNC input, USB (B-type)

Dimensions (W x H x D): 95 mm x 230 mm x 212 mm (3.7" x 9.1" x 8.4")

Weight: 3 kg (6.6 lbs)

Certifications: CE, RoHS

Warranty LEDs – 25,000 hours or 3 years; All other X-Cite 110LED components - 1 year, parts and labor (excluding LLG)
