X-Cite 120PC Q Fluorescence Lamp System with PC Control
PART/

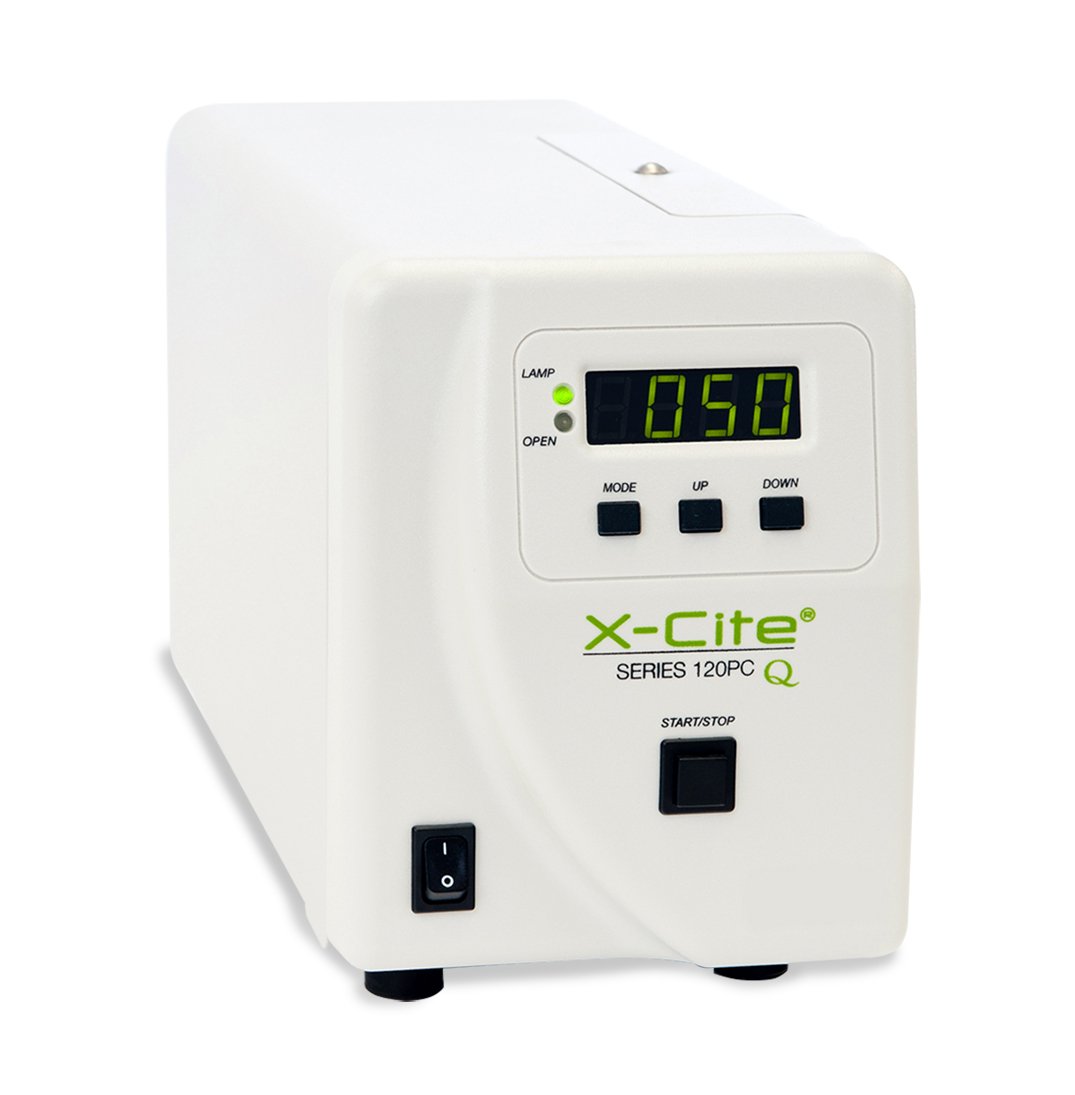

X-Cite 120PC Q

The X-Cite® 120PC Q offers the same performance and convenience as the X-Cite 120Q fluorescence illumination system - rich spectral sample excitation with a uniformly illuminated field-of-view, the convenience of pre-aligned lamps, 2000 hour lamp lifetime, and adjustable iris - with the added option and benefits of a computer controlled microscope light source. The straightforward RS-232 communication and command set easily allows integration into automated systems, as well as commercially available imaging software platforms. X-Cite 120PC Q is also available for online purchasing at Digi-Key.com.

The X-Cite 120PC Q offers the same performance and convenience as the X-Cite 120Q fluorescence illumination system with added PC control.

With a 2000-hour warranty and a typical lamp life of over 2500 hours, the powerful 120 W X-Cite lamp has ten times the life span of a conventional mercury lamp, saving you time and reducing operating costs.

The X-Cite 120PC Q includes a built-in 5-step iris for adjusting intensity to optimize specimen illumination and to help minimize photobleaching of fluorophores. With settings of 100%, 50%, 25%, 12%, and 0%, this is a standard feature of the X-Cite 120PC Q and optional for the X-Cite 120Q.

TECHNICAL SPECIFICATIONS



X-Cite 120Q

X-Cite 120PC Q

Includes

Lamp module, liquid light guide with adaptor, grounded and shielded power cord and manual

Lamp module, liquid light guide with adaptor, software CD, grounded and shielded power cord, 9-pin serial cable, manual and quick start guide

Lamp

Proprietary 120 W Mercury Vapor Short Arc

Lamp Life

2000 hours guaranteed; 2500 hours typical

Power Supply

High efficiency, switch mode, line isolated, 90-264 VAC, 47-63 Hz, universal input

Warm-Up Period

90 seconds (typical)



Panel Controls

Power on/off

Intensity adjustment (if applicable)

Power on/off, mode select, adjust up/down, start/stop

Panel Displays

Accumulated lamp hours, lamp status messages

Iris setting (100%, 50%, 25%, 12%, 0%), accumulated lamp hours, exposure time (0.2-999.9 sec), lamp on, shutter open, lamp/shutter status messages

Weight

6.7 lbs. (3.04 kg)

7 lbs. (3.18 kg)

Dimensions

L x W x H: 13.5" x 5.5" x 6.5" (34.5 cm x 14 cm x 16.5 cm)

Worldwide Certifications

CE Marked, Certified to IEC, Canadian and US Standards

Warranty

1 year (excluding lamp and light guide)
