PART/ G026210000
LINOS Corner Connector X 95
The LINOS® Corner Connector X 95 is a robust building element designed to create stable and precise structural assemblies within the X 95 system. Its cubic form enables accurate right-angle connections, making it easy to expand or reinforce optical and mechanical setups. By providing a reliable junction point without adding unnecessary complexity, it supports the construction of rigid, adaptable framework structures for a wide range of applications.

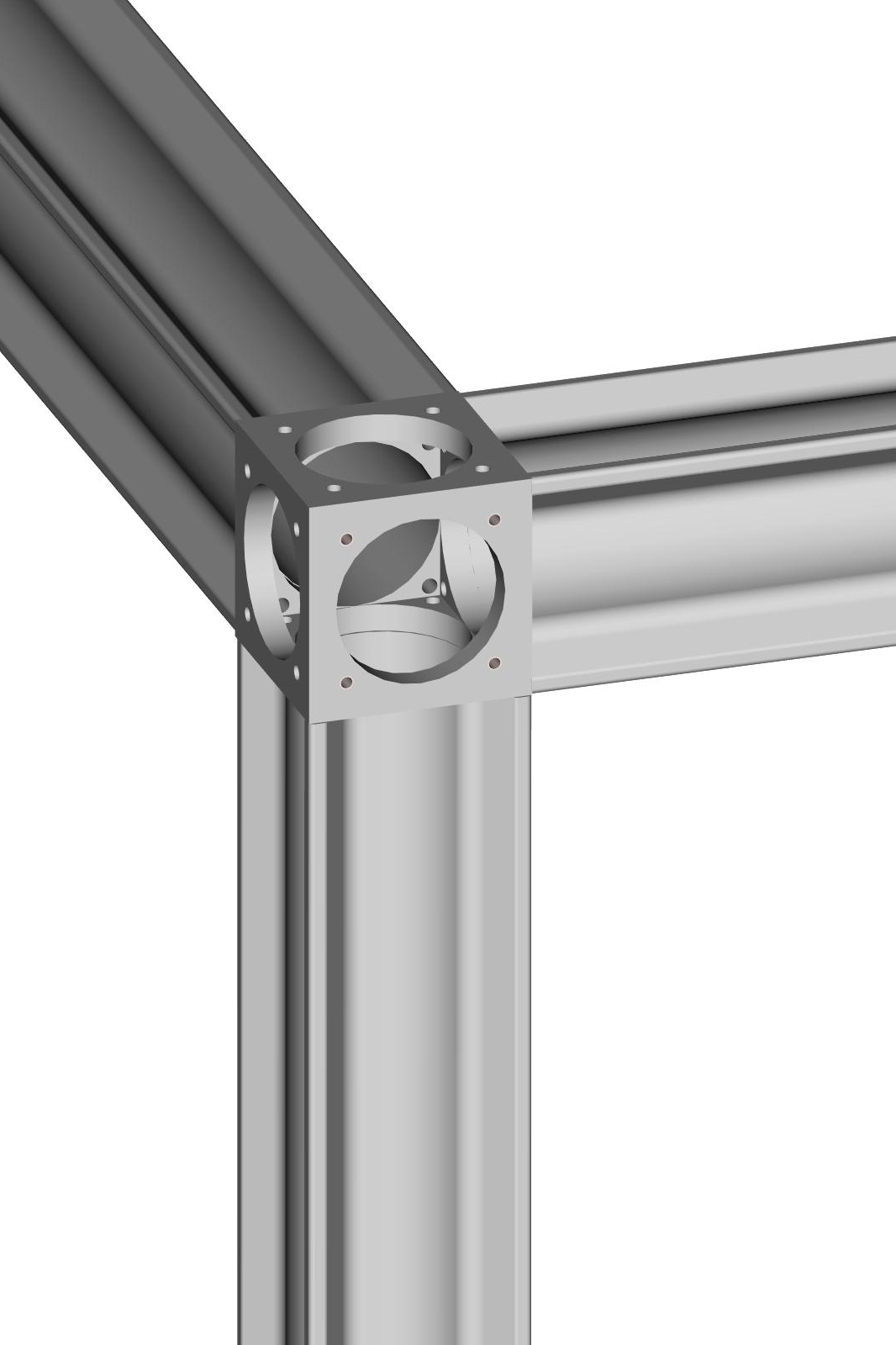

Application Example: Rack mounting of X 95 profiles using the corner connector.
The LINOS Corner Connector X 95 serves as a robust coupling element for constructing rigid framework structures within the X 95 system. Its cubic design offers multiple mounting surfaces, allowing accurate right‑angle connections and convenient attachment of additional components. It supports secure installation at structural junctions and provides a dependable interface for expanding mechanical or optical assemblies.
- Enables precise and stable right‑angle transitions.
- Supports flexible integration into larger structural configurations.
| Length | 95.0 mm |
| Width | 95.0 mm |
| Height | 95.0 mm |
| Weight (kg) | 0.45 |
| Material / Finishing | Colorless Anodized Aluminum |
| Threads / Boreholes |
M6 Ø6.6 mm□63 mm |
| Part Number | G026210000 |
Cubic coupler for assembling framework structures
Five faces have 6.6 mm holes for securely bolting the connector to the ends of X 95 profiles
The remaining face has four M6 tapped holes for installing an X 95 Clamping Carrier
1 kN load capacity for heavy assemblies
Included M6 screws allow immediate installation, eliminating the need for additional hardware.
