PART/ G026201000
LINOS End Plate X 95
The LINOS® End Plate X 95 provides a clean and secure way to finish X 95 profile structures while adding functional stability. By closing open profile ends, it helps protect assemblies and creates defined stopping points for carriers, improving guidance and repeatability in motion setups. Its design also supports mounting profile structures onto legs or vibration‑isolated systems, ensuring that even complex assemblies remain stable and precisely supported. With reliable fastening and straightforward installation, the end plate enhances the durability and usability of any X 95‑based framework, making it a practical addition for both optical and mechanical environments that require consistent structural performance.
The LINOS End Plate X 95 is used to seal open profile ends and provide a stable surface for attaching additional support elements. It helps maintain system protection and contributes to a more controlled structural layout.
- Acts as a stop element and supports secure mounting on legs or vibration isolators
- Includes fastening screws for quick integration into existing assemblies

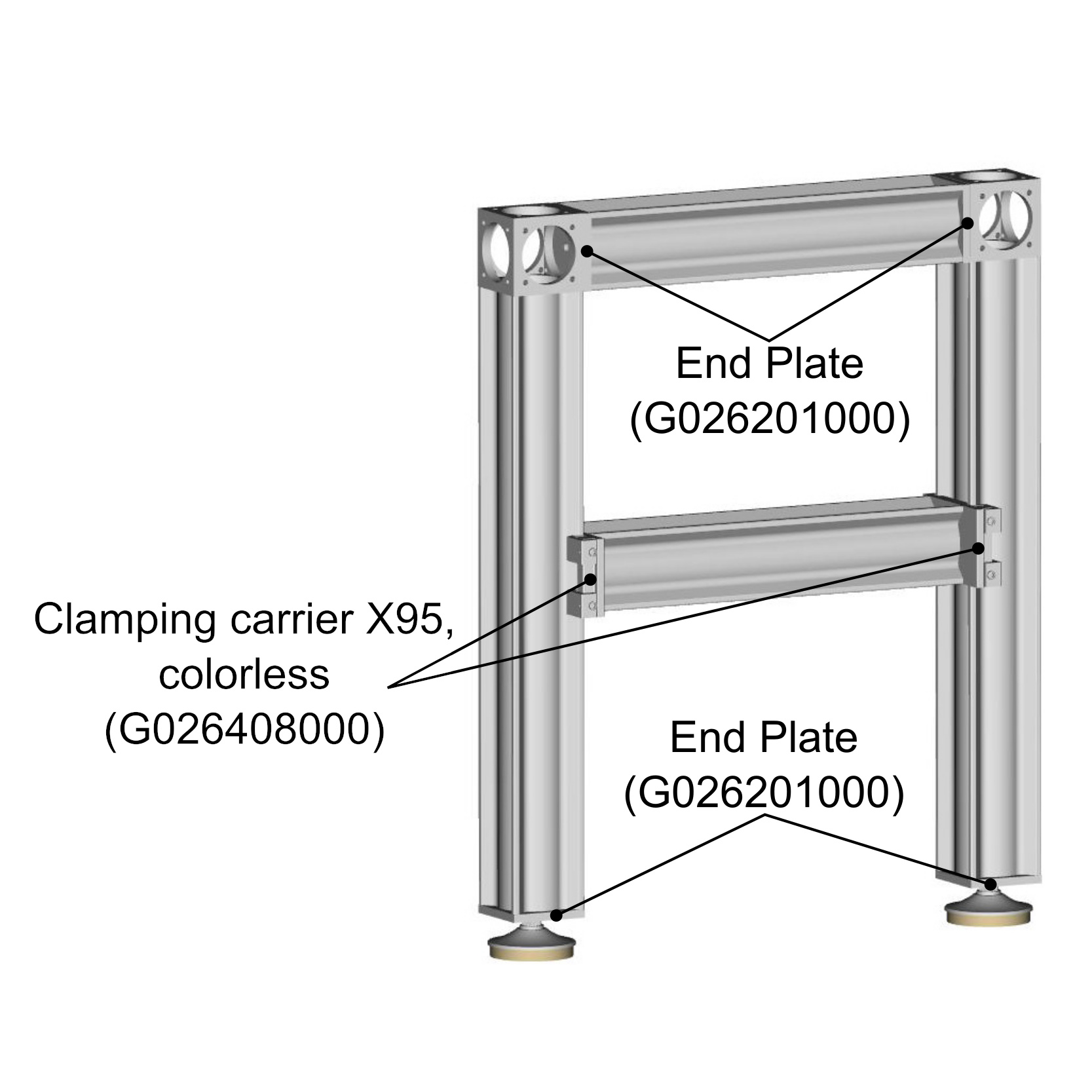

Application Example: Frame assembly built from X 95 profiles, using end plates. A Clamping Carrier X 95 is mounted between the vertical profiles to provide a secure support element within the frame.
Caps open profile ends and provides a defined stop for carriers
Supports mounting X 95 structures on legs or vibration isolators, enabling stable setups with reduced vibration
Includes six M6 × 16 Allen-head screws, allowing quick installation without additional hardware
