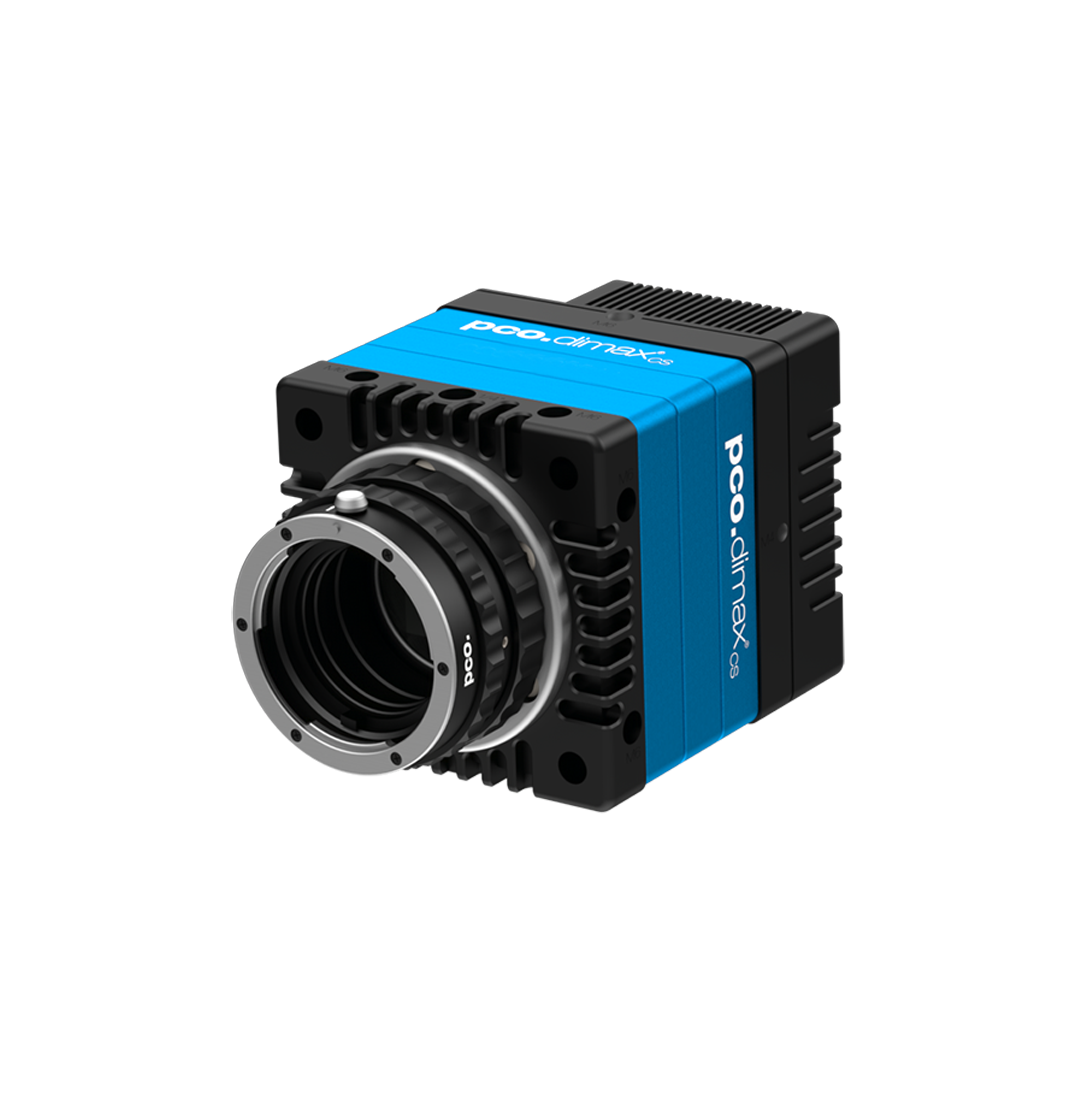

pco.dimax cs1 High-speed Camera
The pco.dimax cs1 camera provides excellent light sensitivity and outstanding image quality ideal for precise analysis and measurements. This high-speed camera offers fast frame rates of up to 3086 fps at a high resolution of 1296 x 1024 pixels. Featuring intuitive control software, the pco.dimax cs1 enables easy playback and export of recorded slow motion video sequences. Its multiple lens mounts (including electronic lens control), HD-SDI video output and automatic image calibration make the pco.dimax cs1 camera a versatile and powerful solution for demanding car safety applications.Â
The pco.dimax cs high-speed camera series are specifically designed for harsh and demanding applications, inter alia, vehicle crash tests or microscopy experiments. With a compact, lightweight and ruggedized design, the pco.dimax cs cameras can be mounted in a multitude of positions for both onboard or off-board use.
Excelitas offers a comprehensive selection of software options for use with PCO cameras to help optimize your application. Visit our PCO Camera Software section to easily access camera control software, software development kits, interface drivers, add-on software, as well as µManager integration software.
Also, try our MachVis Lens Selector tool to help identify the perfect lens solution and PCO camera for your imaging and machine vision requirements.
Parameter |
Unit |
Setpoint |
pco.dimax cs1 |
Resolution (hor x ver) |
pixel |
 |
1296 x 1024 |
Pixel size (hor x ver) |
µm |
 |
11.0 x 11.0 |
Peak quantum efficiency |
% |
@ 600 nm typ. |
50 |
Dynamic range A/D |
bit |
 |
12 |
Readout noise |
e- rms |
 |
22 |
Frame rate |
fps |
color |
3086 |
Exposure time range |
s |
 |
1.5 µs - 40 ms |
Region of interest (ROI) |
 |
steps of |
24 x 4 pixel (centered) |
Optical input |
 |
 |
F-mount, C-mount |
Data interface |
 |
 |
GigE |
