PART/ 85108052001

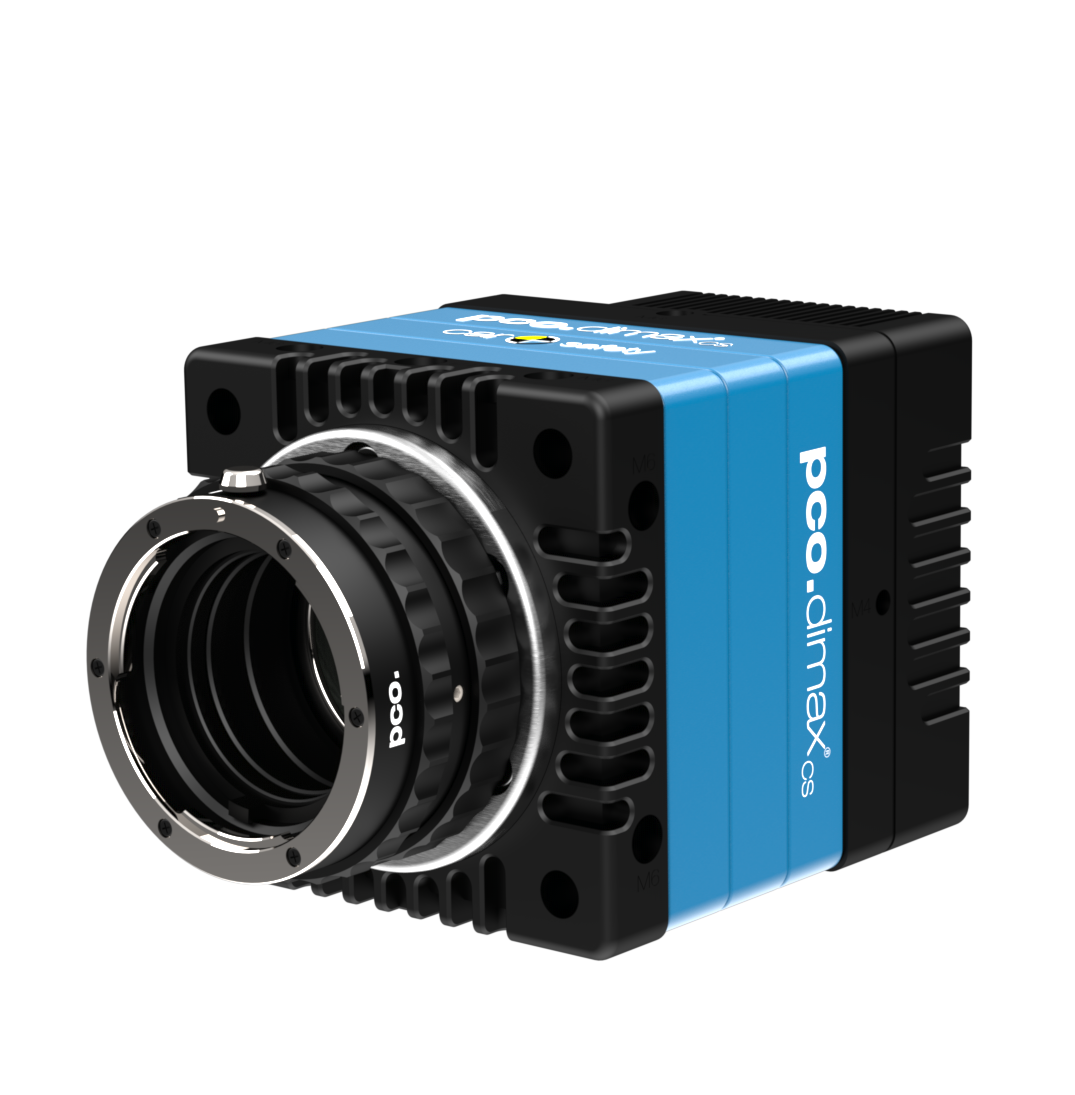

pco.dimax cs3 High-speed Camera
Powered by BiozThe pco.dimax cs3 camera offers outstanding image quality resulting from its exceptional light sensitivity making it ideal for precise analysis and measurements. With fast frame rates of up to 1603 fps at a high resolution of 1920 x 1440 pixels, this high-speed camera features intuitive control software that enables easy playback and export of recorded slow motion video sequences. Its multiple lens mounts (including electronic lens control), HD-SDI video output and automatic image calibration makes the pco.dimax cs3 camera a versatile and powerful solution for demanding car safety applications.
The pco.dimax cs camera series is specifically designed for harsh and demanding applications, inter alia, vehicle crash tests or microscopy experiments. Its compact, lightweight and ruggedized form factor allows greater flexibility to mount in a multitude of positions for both onboard or off-board use.
| Sensor Technology | CMOS |
| Resolution (H x V) | 1920 x 1440 |
| Pixel Size (H x V) | 11.0 x 11.0 |
| Sensor Diagonal | 26.4 mm |
| Peak Quantum Efficiency | 50.0 % |
| Peak Quantum Efficiency Wavelength | 550.0 nm |
| Global Shutter | true |
| Rolling Shutter | false |
| Global Reset | false |
| Operational Modes |
Standard Enhanced Compression Correlated Double Imaging |
| Readout Noise RMS |
22.0 e- 30.0 e- 18.0 e- |
| Readout Noise Median |
22.0 e- 30.0 e- 18.0 e- |
| Fullwell Capacity | 36000 e- |
| Dynamic Range |
1600:1 1200:1 2000:1 |
| Frame rate (Full Sensor) | 1603.0 fps |
| Dynamic Range A/D Converter | 12 bit |
| Exposure Minimum | 1.5 μs |
| Exposure Maximum | 0.04 s |
| Thermo Electric Cooling | true |
| Forced Air | true |
| Liquid Cooling | false |
| Data Interface | Gigabit Ethernet |
| Included Lens Mount |
C-Mount F-Mount |
| Width | 85.0 mm |
| Length | 103.0 mm |
| Weight (kg) | 0.985 |
| Height | 85.0 mm |
| Part Number | 85108052001 |
Front View
Back View
Right Side View
Left Side View
Bottom View
| Sensor Technology | CMOS |
| Resolution (H x V) | 1920 x 1440 |
| Pixel Size (H x V) | 11.0 x 11.0 |
| Sensor Diagonal | 26.4 mm |
| Peak Quantum Efficiency | 50.0 % |
| Peak Quantum Efficiency Wavelength | 550.0 nm |
| Global Shutter | true |
| Rolling Shutter | false |
| Global Reset | false |
| Operational Modes |
Standard Enhanced Compression Correlated Double Imaging |
| Readout Noise RMS |
22.0 e- 30.0 e- 18.0 e- |
| Readout Noise Median |
22.0 e- 30.0 e- 18.0 e- |
| Fullwell Capacity | 36000 e- |
| Dynamic Range |
1600:1 1200:1 2000:1 |
| Frame rate (Full Sensor) | 1603.0 fps |
| Dynamic Range A/D Converter | 12 bit |
| Exposure Minimum | 1.5 μs |
| Exposure Maximum | 0.04 s |
| Thermo Electric Cooling | true |
| Forced Air | true |
| Liquid Cooling | false |
| Data Interface | Gigabit Ethernet |
| Included Lens Mount |
C-Mount F-Mount |
| Width | 85.0 mm |
| Length | 103.0 mm |
| Weight (kg) | 0.985 |
| Height | 85.0 mm |
| Part Number | 85108052001 |
Front View
Back View
Right Side View
Left Side View
Bottom View
