PART/ 85108015110
pco.pixelfly 1.3 SWIR
The Excelitas pco.pixelfly™ 1.3 SWIR is a high-performance machine vision camera due to its special InGaAs image sensor which is sensitive in the shortwave infrared (SWIR), near infrared and visible range of the electromagnetic spectrum. It shows a favorably high sensitivity in the whole spectral range with up to 90 % in the shortwave infrared band. The small pixels enable the use of small magnification optics in microscopy and a low dark current for long exposure times.
High Sensitivity
The pco.pixelfly 1.3 SWIR camera is highly sensitive to shortwave infrared light, making it ideal for use in low-light or challenging imaging environments. The camera can capture high-quality images even in situations where both, visible light as well as near-infrared light, are required for the application.
Wide Spectral Range
VIS & SWIR cameras have a wide spectral range, typically between wavelengths of 400 and 1700 nanometers, allowing them to capture a wide range of information and detail in this broad band of the light spectrum.
Robust Design
Designed to withstand the harsh environments often encountered in industrial and scientific applications, the pco.pixelfly 1.3 SWIR camera is durable, reliable and long-lasting, making it an ideal choice for demanding imaging applications.
High Resolution
This high-resolution imaging camera offers the ability to capture clear and detailed images in even the most challenging of environments making it suitable for applications such as industrial inspection, material analysis, and scientific research.
Versatile
The pco.pixelfly 1.3 SWIR camera can be used in a wide range of applications, from low-light imaging to industrial inspection, material analysis, and scientific research. With the ability to operate effectively in challenging environments and capture detailed images in the short-wave infrared spectrum, this versatile camera is a valuable tool for many industrial applications.
| Length | 115.0 mm |
| Width | 70.0 mm |
| Height | 70.0 mm |
| Weight (kg) | 0.68 |
| Dynamic Range (log) |
57.0 dB 56.0 dB 56.0 dB |
| Forced Air | true |
| Readout Noise RMS |
230.0 e- 242.0 e- 259.0 e- |
| Pixel Size (H x V) | 5.0 x 5.0 |
| Thermo Electric Cooling | true |
| Frame rate (Full Sensor) |
72.0 fps 126.0 fps 130.0 fps |
| Peak Quantum Efficiency | 90.0 % |
| Dark Current | 6000.0 e-/s |
| Working Temperature Image Sensor |
dewpoint regulated +18 °C @ ambient temperature (+25 °C) and humidity 70 % |
| Peak Quantum Efficiency Wavelength | 1200.0 nm |
| Sensor Technology | InGaAs |
| Sensor Version | IMX990 |
| Fullwell Capacity |
157300 e- 157100 e- 156900 e- |
| Sensor Temperature (Dark Current Reference) | 20.0 °C |
| Operational Modes |
12-bit 10-bit 8-bit |
| Dynamic Range A/D Converter |
12 bit 10 bit 8 bit |
| Dynamic Range |
680:1 650:1 600:1 |
| Resolution (H x V) | 1280 x 1024 |
| Sensor Diagonal | 8.2 mm |
| Liquid Cooling | false |
| Included Lens Mount | C-Mount |
| Data Interface | USB 3.1 Gen 1 |
| Line Scanning | false |
| Global Reset | false |
| Trigger Input Signals |
external exposure start external exposure control sequence trigger |
| Global Shutter | true |
| Region of Interest Vertical (ROI) | vertical: steps of 4 rows |
| Non Linearity | ≤ 0.17 % |
| MTF (Theoretical) | 100.0 lp/mm |
| Optional Lens Mount |
F-Mount TFL-Mount |
| Spectral Range Minimum | 350 nm |
| Dark Signal Non-Uniformity DSNU |
131.0 e- (rms) 138.0 e- (rms) 227.0 e- (rms) |
| Default Read Out Mode | 12-bit |
| Operating Temperature Range | +10 °C to +40 °C |
| Photo Response Non-Uniformity PRNU |
0.31 % 0.31 % 0.17 % |
| Sensor Manufacturer | SONY |
| Power Supply | power over USB 3.1 Gen 1 |
| Exposure Minimum | 20 μs |
| Sensor Dimensions (H x V) | 6.4 x 5.1 |
| Spectral Range Maximum | 1700 nm |
| A/D Conversion Factor |
41.0 e-/DN 164.0 e-/DN 652.0 e-/DN |
| Direct Mounting Distance (No Camera Flange) | 5.2 mm (±10 %) |
| Chroma | mono |
| Rolling Shutter | false |
| Humidity Range (Non-Condensing) | 10 % to 80 % (recommended < 65 %) |
| Trigger Cable Connector | SMA |
| Double Shutter | false |
| Power Consumption | max. 15 W, typ. 7 W |
| Storage Temperature Range | -10 °C to +60 °C |
| Pixel Rate |
94 MPixel/s 165 MPixel/s 170 MPixel/s |
| Exposure Maximum | 30 s |
| Compliance Label |
CE FCC |
| Region of Interest Horizontal (ROI) | horizontal: steps of 8 columns |
| Trigger Output Signals | exposure |
| Part Number | 85108015110 |
Front View

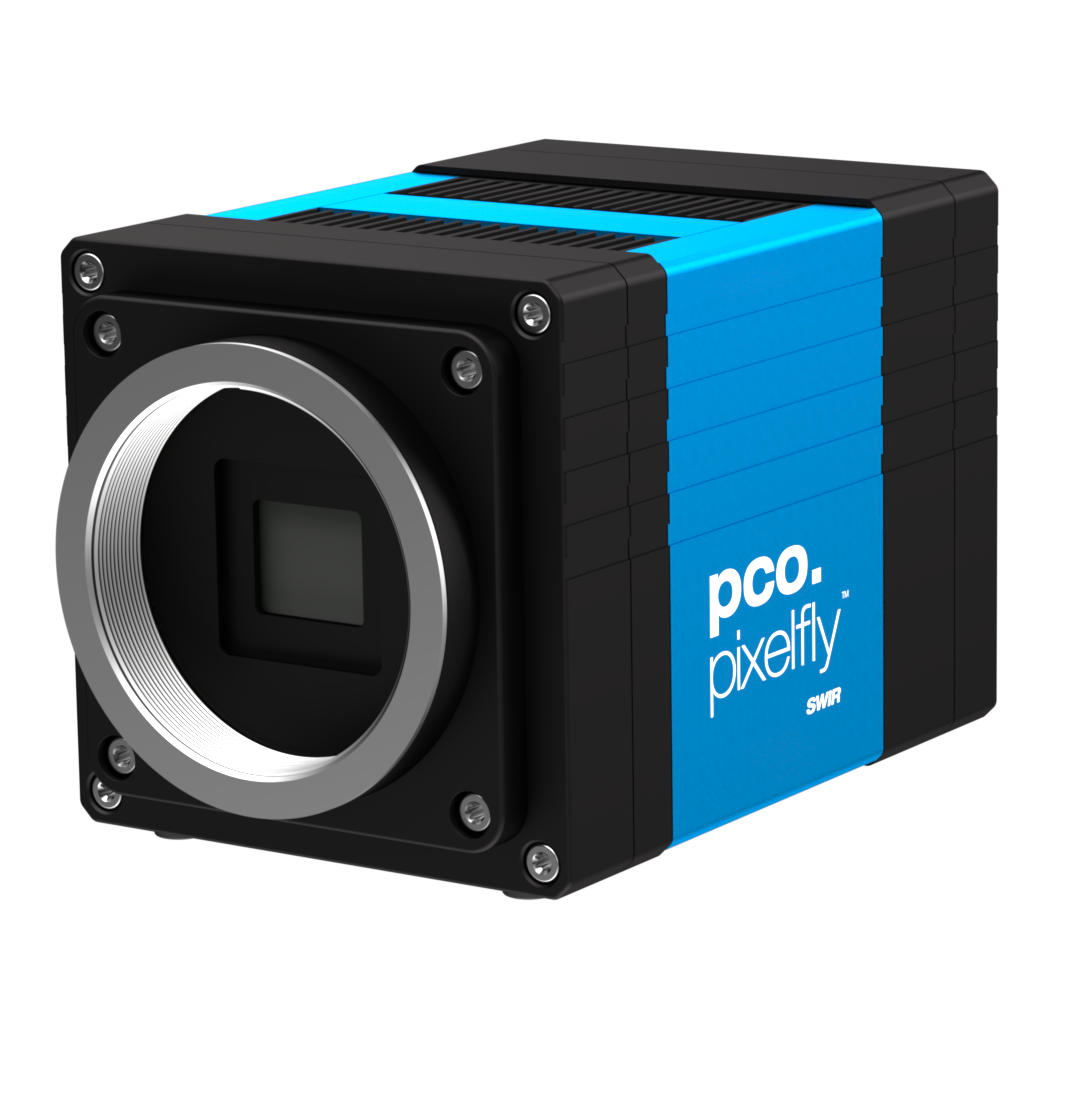

Front View 45 Degree
Rear View
Side View
