X-Cite XLED1 Illumination System
X-Cite XLED1 Recognized with a Microscopy Today Innovation Award
PART/

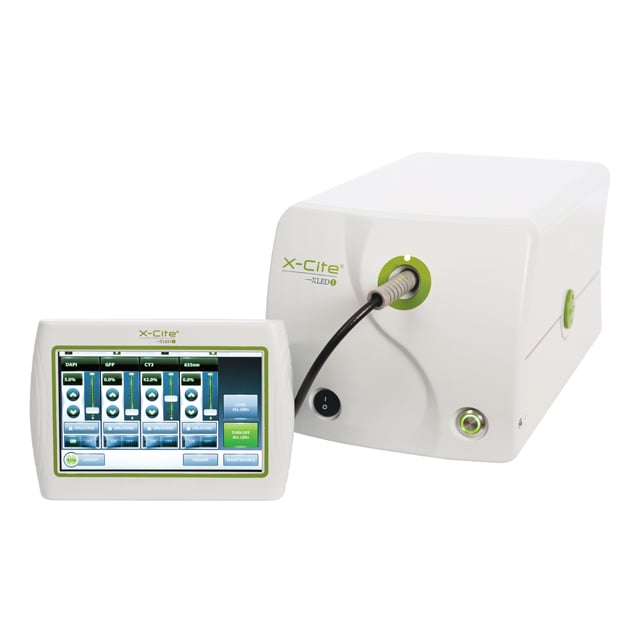

X-Cite XLED1 Multi-Triggering LED Illumination System

The award-winning X-Cite® XLED1 is a high-power LED light source designed to optimize fluorophore excitation with unmatched LED switching speeds. Its unique plug-and-play modularity allows the system to evolve alongside changing research applications, with easily interchangeable LED modules.

With unprecedented wavelength switching speeds to capture fast cell dynamics and advanced triggering options including X-Cite Live Cell Mode® to extend live-cell imaging experiments, the X-Cite XLED1 represents the industry's next generation of fluorescence LED illumination.

Features and Benefits:

Maximum power and individual LED control: Use up to four high-power LED modules with fine excitation control while balancing illumination intensity between channels and protecting specimens against photodamage.

Unmatched field uniformity at the specimen: X-Cite microscope adapters lead the industry in field uniformity without the need for alignment, while saving time on maintenance and ensuring peace-of-mind in experimental results.

Adaptable plug-and-play modularity: Each LED module and associated optical components can be quickly swapped in the field for another wavelength depending on the needs of your application.

Rapid wavelength switching to capture fast cell dynamics: Each LED module is designed to integrate and easily interchange individual excitation filters, allowing accelerated wavelength switching beyond the scope of motorized filter wheels.

Flexible triggering for sequential or simultaneous imaging: Triggering sequences can be combined with a high degree of control over individual LED intensity to excite and image multiple fluorophores when examining very fast moving specimens or for live-cell ratio imaging.

X-Cite Live Cell Mode to limit photobleaching and cellular damage: Researchers can extend the time frame of their live-cell imaging experiments by reducing the degree of free radical formation caused by the continuous illumination of fluorescent proteins.

System includes: X-Cite XLED1 illumination system, optional XLED1 touch screen controller, four modules, user manual (CD) with GUI and USB driver, quick start guide, liquid light guide, microscope adapter, power cord, four excitation filter holders, USB cable

X-Cite XLED1 System:

Wavelengths: View our brochure for available wavelengths

Dimensions: 8.5″ (W) x 8″ (H) x 15″ (D) (22 cm x 20 cm x 39 cm)

Weight: ~7.3 kg, ~16 lbs (full system)

Supply: Universal input of 100-240 Volts AC, 50-60 Hz. Fused at 6.3 A

Connectivity: USB type-B female, Trigger Input BNC (TTL-compatible)*, Sync Output BNC (TTL-compatible)*, *Optional cables required

Triggering: Internal/External User-defined per channel; Global trigger input; User-defined free-running or single shot pulse modes; Internal triggering generated from internal pulse generator 10µs (min), up to 18 hours (max)

Sync Out: Mapped echo of LED cycles on separate output pins

Sync Out Phase Control: Individual control of sync phase advance/retard (half of max cycle duration)

Channel Switching Speeds: USB < 1ms; Internal/External TTL Triggering down to10μs

Minimum Duty Cycle: 10µs

X-Cite XLED1 Touch Screen Controller (Optional):

Screen: Medical/Industrial grade 7″ touch screen; 16:9 aspect ratio and LED backlight with adjustable intensity

Resolution: 800 x 480 pixels

Display Viewing Area: 6″ (W) x 3.5″ (H) (15 cm x 9 cm)

External Dimensions: 8″ (W) x 2.5″ (H) x 5.5″ (D) (20 cm x 7 cm x 14 cm)

Program: Proprietary graphical user interface

Connectivity: ~2.5 m connectorized power and data combo cable

Power: < 10 Watts

Certifications: CE Marked, Certified to IEC, Canadian and US standards, RoHS compliant

Warranty: X-Cite XLED1 System, XLED1 touch screen controller and XLED1 LED drivers: 12 months from shipping. LED modules: 20,000 hours or 3 years
