EXACTD-332 Angle-of-Arrival Photodiode Module
PART/ EXACTD-332

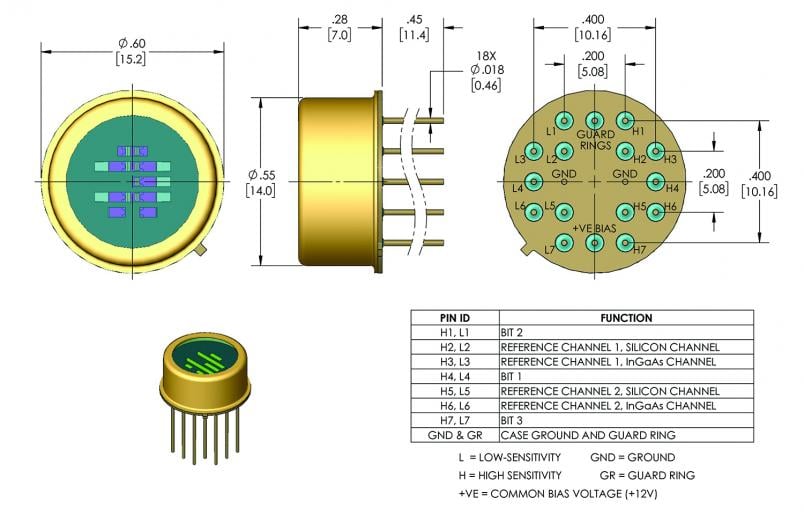

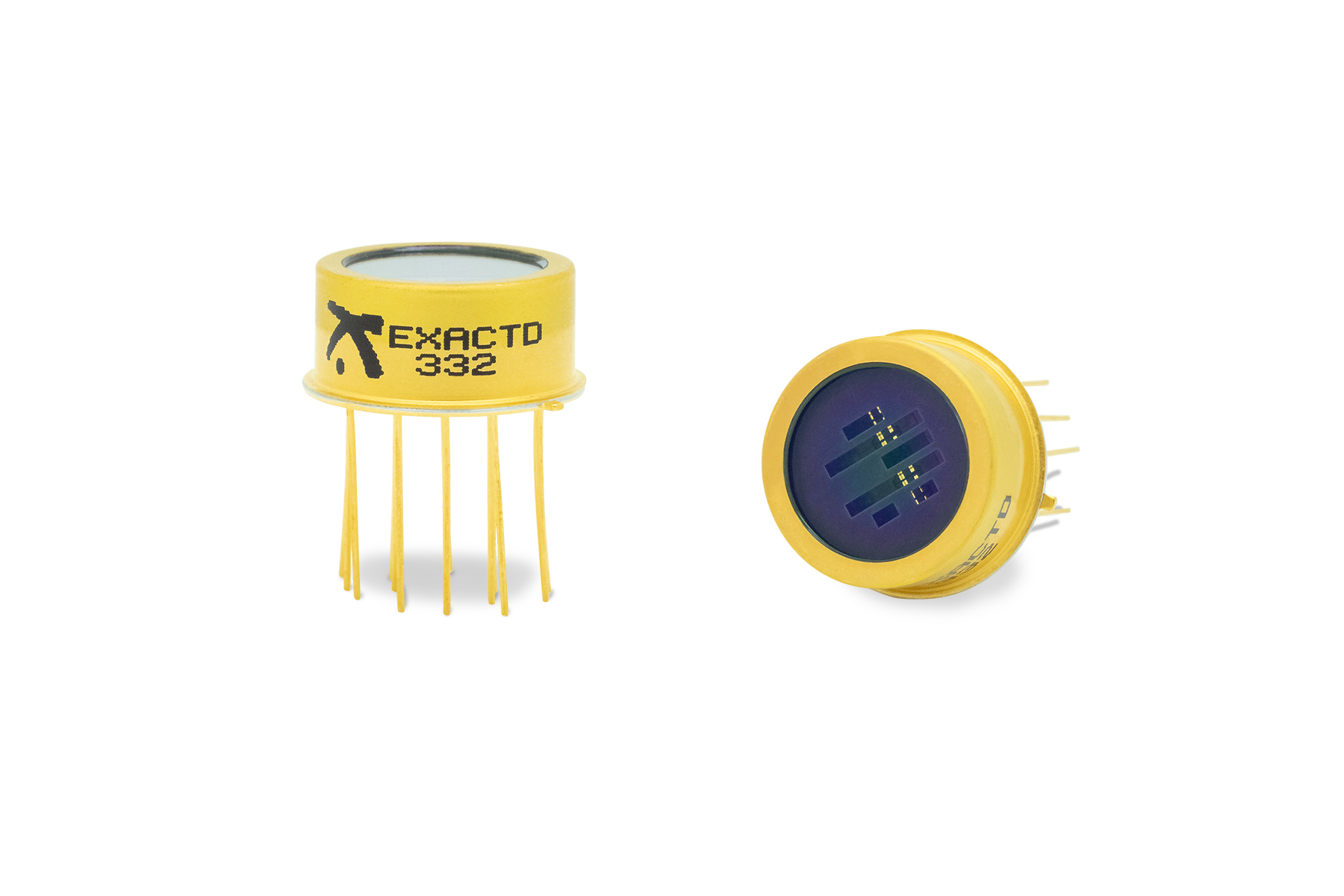

EXACTD-332 Angle-of-Arrival Photodiode Module

The Excelitas EXACTD® platform is designed for use in Laser Warning Receiver Systems to detect and provide precise angle-of-arrival (AoA) information from direct and indirect scattered light from laser range finders, target designators, and active laser Electro-Optic (E.O.) systems.

The 3‑bit Gray code design of the EXACTD allows encoding of incident AoA with an angular resolution of ±6.0°, in either azimuth or elevation depending on the module’s orientation, over the ±45° field-of-view (FoC).

The Si and InGaAs detector arrays have a combined spectral sensitivity range of 500 – 1650 nm in a small compact TO-8 can.

Features & Benefits:

  • Spectral sensitivity range of 500 – 1650 nm
  • 3-bit design for precise ±6.0˚ AoA accuracy, in either azimuth or elevation
  • FOV is ±45˚ for both azimuth and elevation angles
  • Low- and high-sensitivity channels for wide dynamic range
  • Two reference channels are provided in each photodiode array for baseline signal level determination

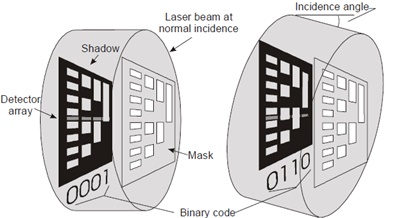

EXACTD-362 Principle of Operation

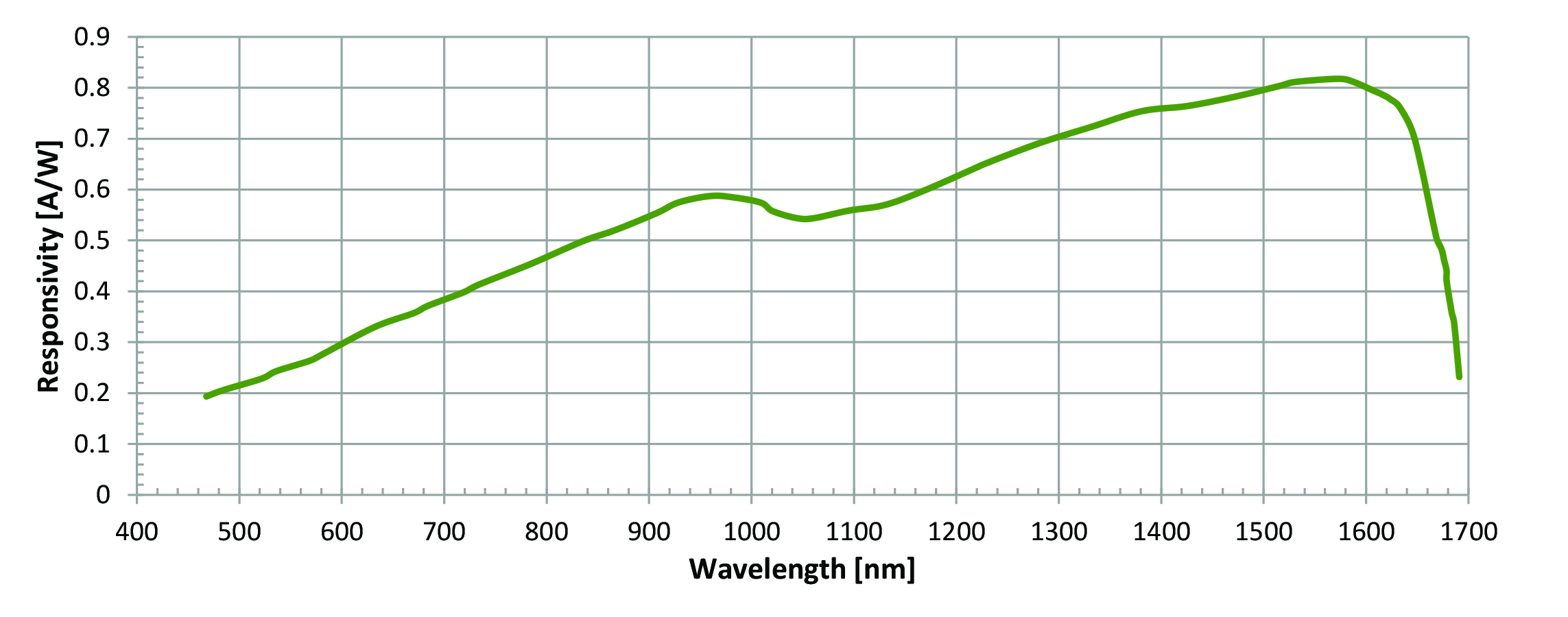

EXACRD-332 Spectral Responsivity

EXACTD VS 655

Noise current per element (pA/Hz): 0.2

Typical capacitance per element (pF): 13.5

Typical Angle-of-Arrival (AoA) accuracy (RMS error) (º): 6.0

Maximal pointing error (º): 1.8

Noise current per element (pA/Hz): 0.2

Typical capacitance per element (pF): 13.5

Typical Angle-of-Arrival (AoA) accuracy (RMS error) (º): 6.0

Maximal pointing error (º): 1.8
