Excelitas EXACTD-362 Module detects and provides highly-precise AoA information from  laser range finders, laser target designators and active E.O. systems for driving effective countermeasures.

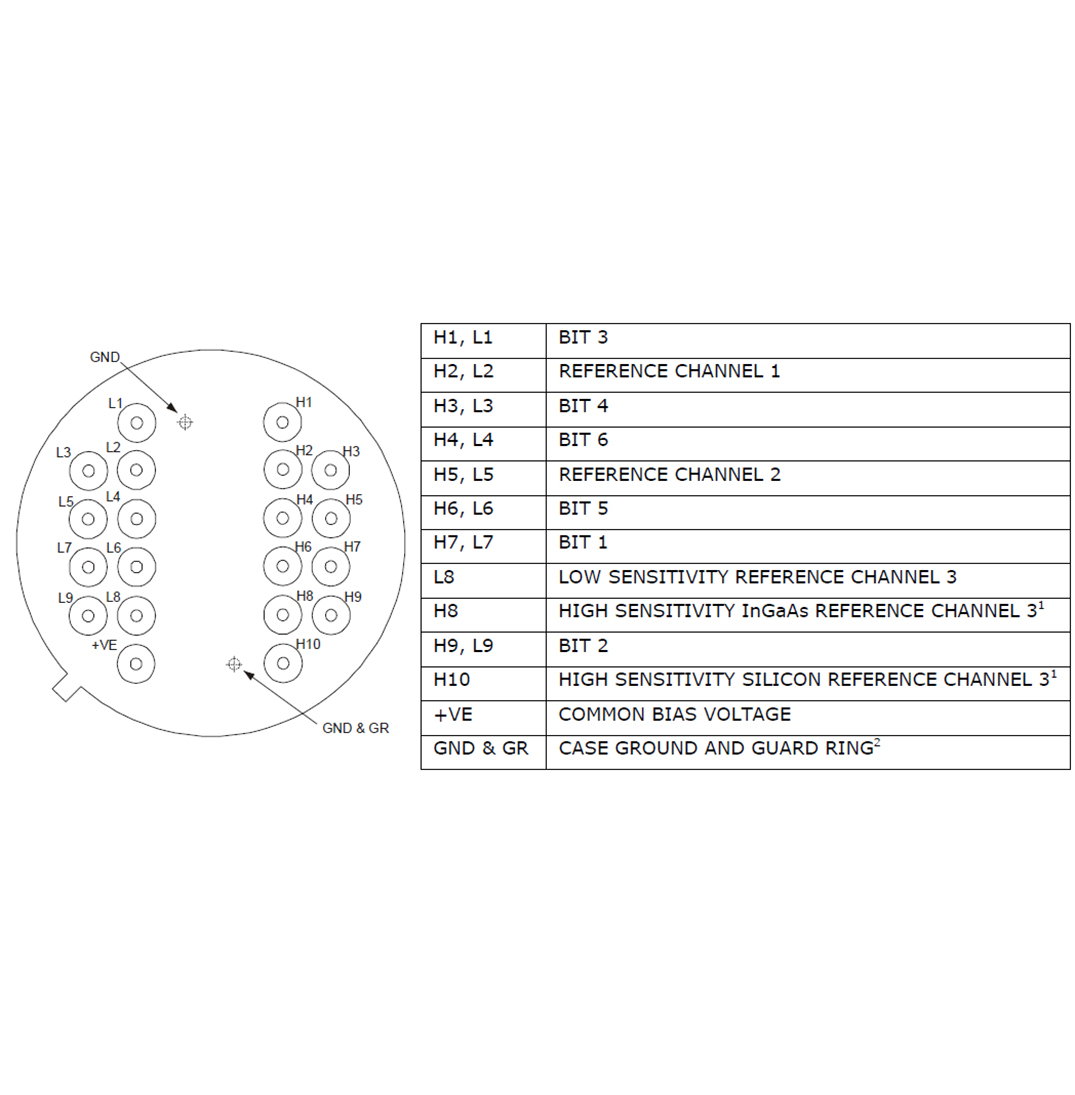

Pin Layout (Bottom View), EXACTD-362

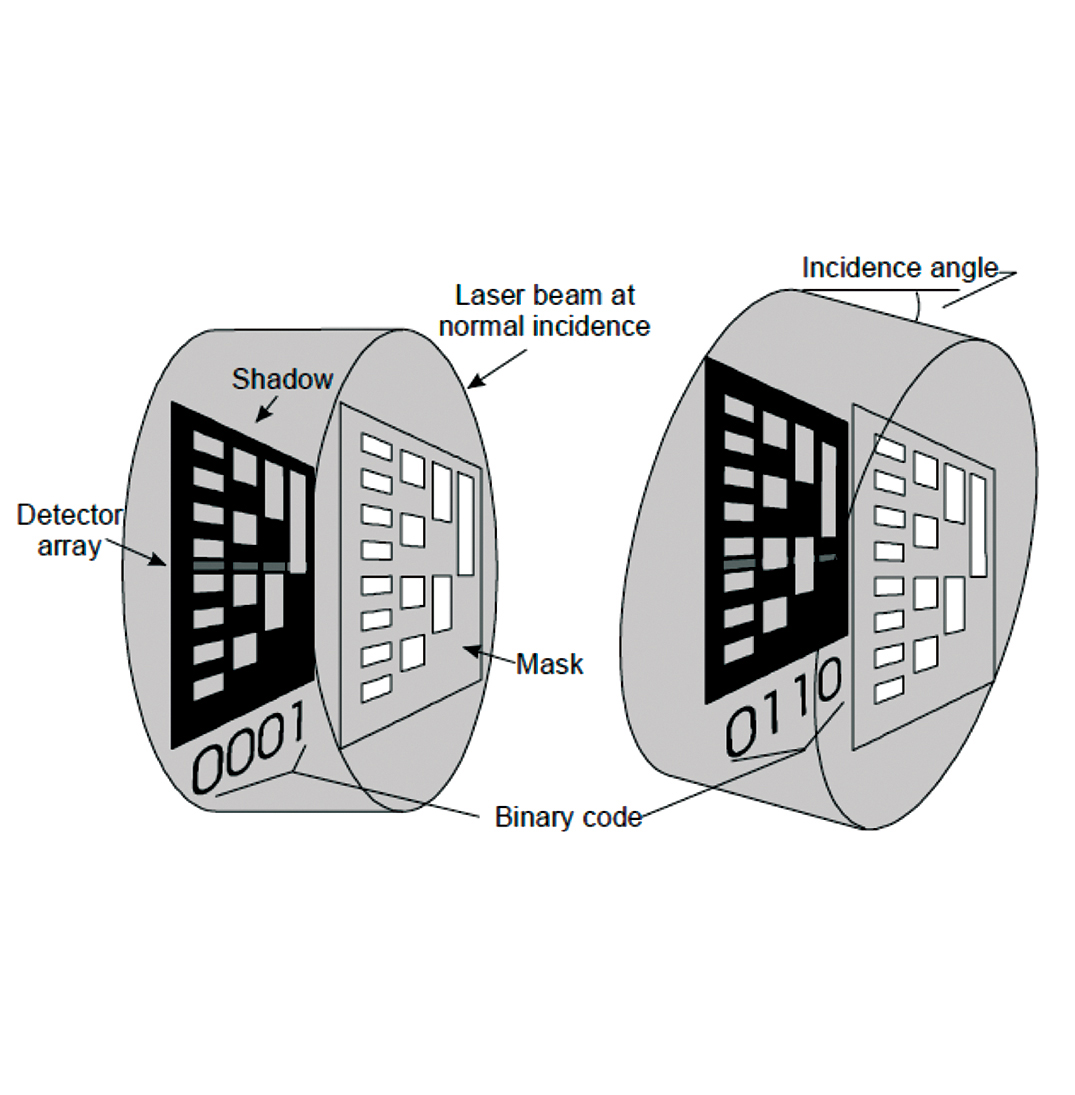

Principle of Operation – EXACTD. Shows varying binary code as a function of incident angle

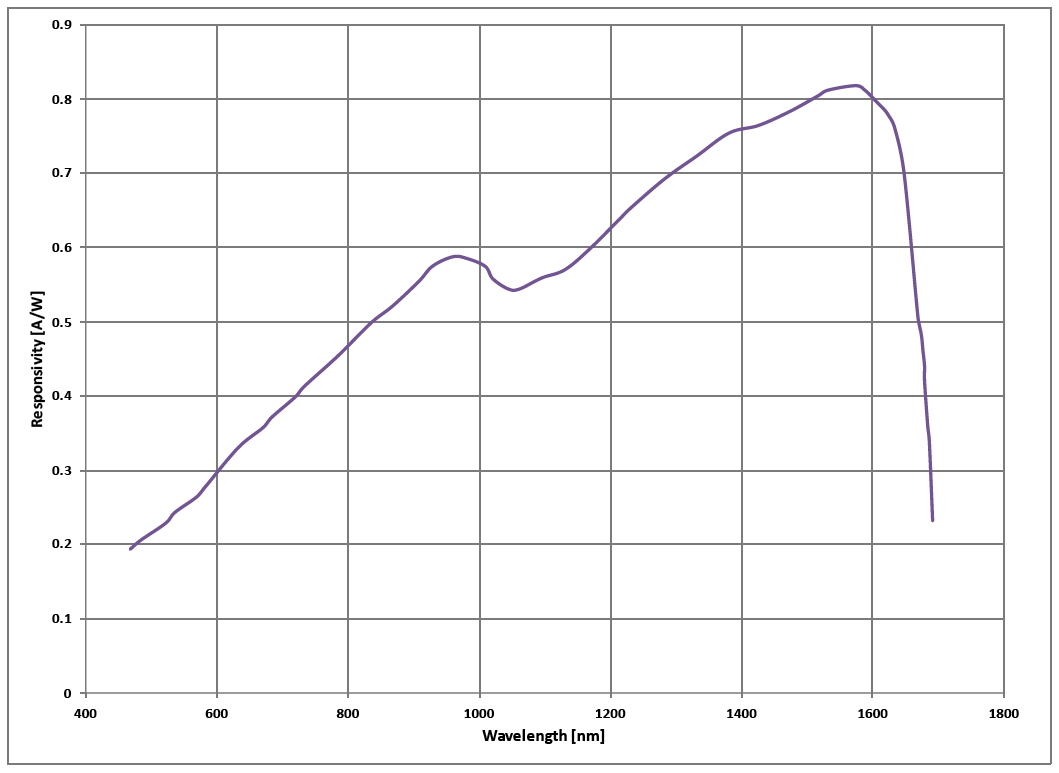

 Typical Spectral Responsivity of combined Si and InGaAs elements, EXACTD-362

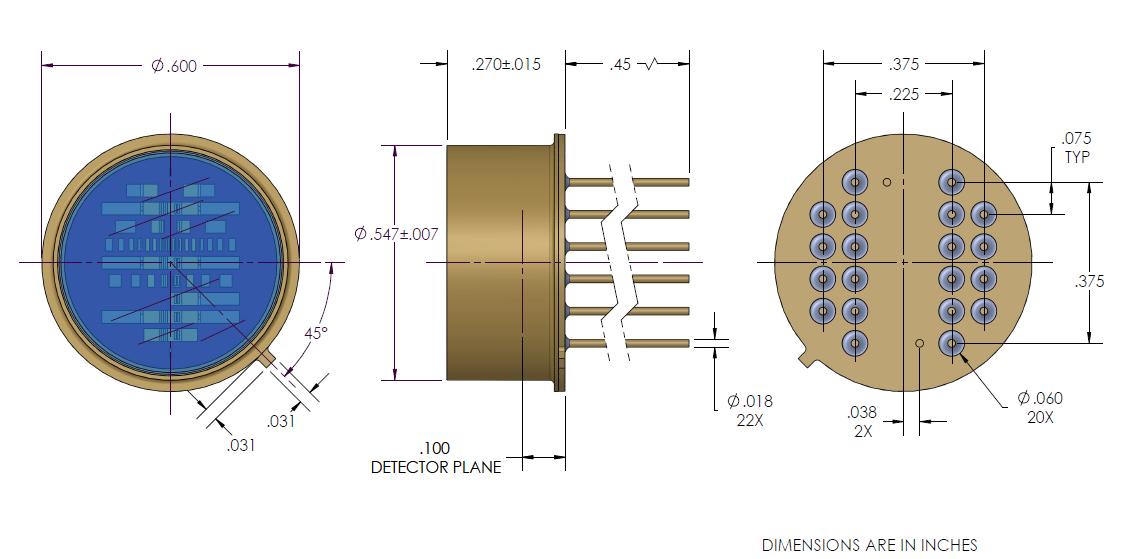

 Mechanical Characteristics, EXACTD-362 (Reference dimensions shown in inches)
PART/ EXACTD-362

EXACTD-362 Angle-of-Arrival Photodiode Module

The Excelitas EXACTD® platform is designed for use in Laser Warning Receiver Systems to detect and provide precise angle-of-arrival (AoA) information from direct and indirect scattered light from laser range finders, target designators, and active laser Electro-Optic (E.O.) systems.

The 6‑bit Gray code design of the EXACTD allows encoding of incident AoA with an angular resolution of ±0.8°, in either azimuth or elevation depending on the module’s orientation, over the ±45° field-of-view (FoC).

The Si and InGaAs detector arrays have a combined spectral sensitivity range of 500 – 1650 nm in a small compact TO-8 can.

Features & Benefits:

  • Spectral sensitivity range of 500 – 1650 nm
  • 6-bit design for precise ±0.8˚ AoA accuracy, in either azimuth or elevation
  • FOV is ±45˚ for both azimuth and elevation angles
  • Low- and high-sensitivity channels for wide dynamic range
  • Three reference channels are provided in each photodiode array for baseline signal level determination
Pin Layout (Bottom View), EXACTD-362
Principle of Operation – EXACTD. Shows varying binary code as a function of incident angle





















Mechanical Characteristics, EXACTD-362 (Reference dimensions shown in inches)
Typical Spectral Responsivity of combined Si and InGaAs elements, EXACTD-362

Wavelength range (nm): 500 to 1650

Bias voltage (V): 12

Typical Responsivity (A/W): 0.2 A/W at 500 nm

Typical Responsivity (A/W): 0.4 A/W at 900 nm

Typical Responsivity (A/W): 0.5 A/W at 1064 nm

Typical Responsivity (A/W): 0.7 A/W at 1540 nm

Maximal dark current per element (nA) : 20

Noise current per element (pA/Hz): 0.5

Typical capacitance per element (pF): 12

Typical rise and fall time (ns): 5

Dynamic range (dB): 60

Field of view (º): ±45

Typical Angle-of-Arrival (AoA) accuracy (RMS error) (º): 0.8

Maximal pointing error (º): 1.0

Case operating temperature (℃): -40 to 85

Typical maximal incident power (kW/cm²): 1.2

Minimal damage threshold (kW/cm²): 100

Wavelength range (nm): 500 to 1650

Bias voltage (V): 12

Typical Responsivity (A/W): 0.2 A/W at 500 nm

Typical Responsivity (A/W): 0.4 A/W at 900 nm

Typical Responsivity (A/W): 0.5 A/W at 1064 nm

Typical Responsivity (A/W): 0.7 A/W at 1540 nm

Maximal dark current per element (nA) : 20

Noise current per element (pA/Hz): 0.5

Typical capacitance per element (pF): 12

Typical rise and fall time (ns): 5

Dynamic range (dB): 60

Field of view (º): ±45

Typical Angle-of-Arrival (AoA) accuracy (RMS error) (º): 0.8

Maximal pointing error (º): 1.0

Case operating temperature (℃): -40 to 85

Typical maximal incident power (kW/cm²): 1.2

Minimal damage threshold (kW/cm²): 100
