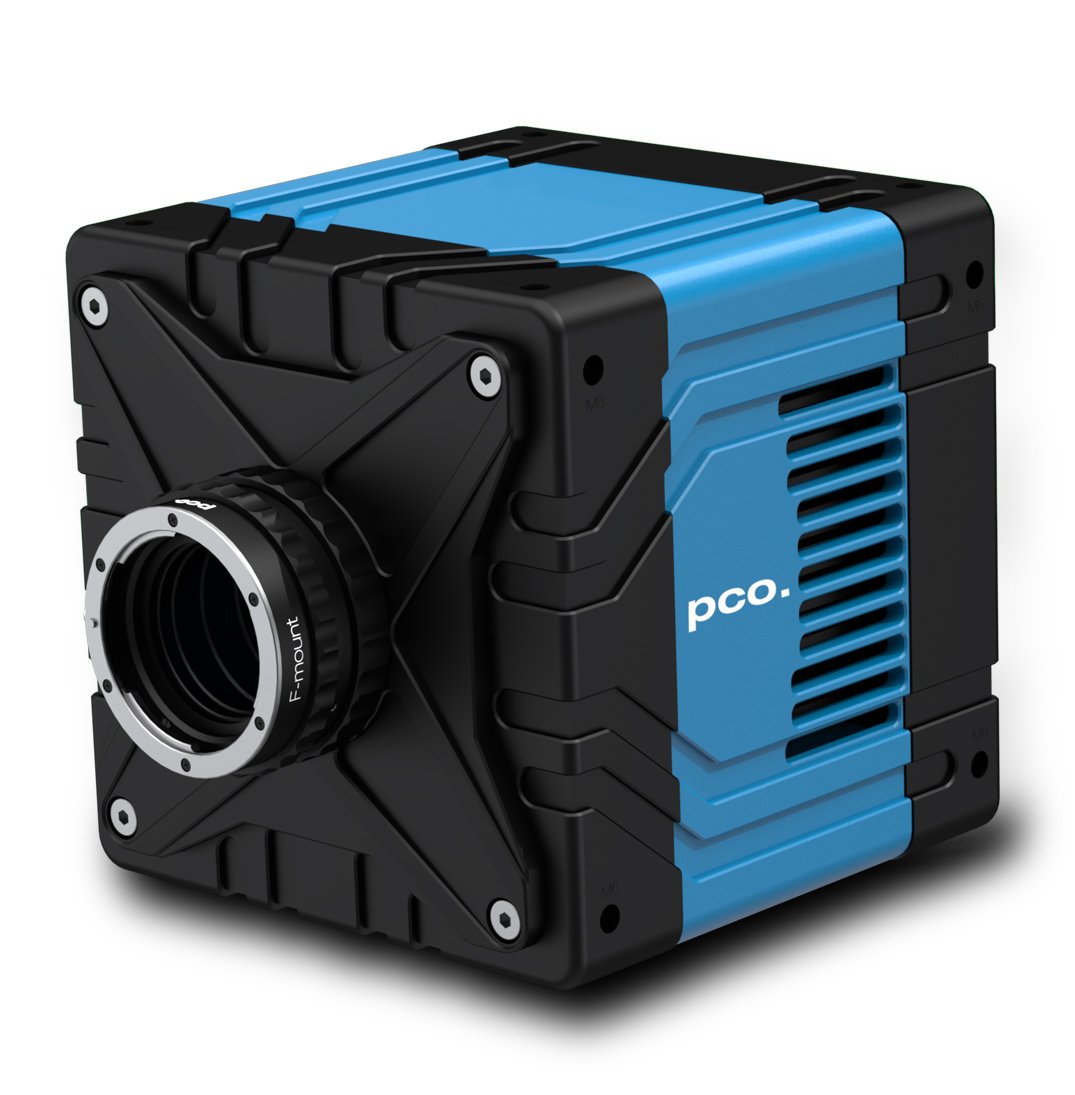

Powered by Biozpco.dimax 3.6 ST High-speed Camera
The pco.dimax 3.6 ST CLHS is a high-speed streaming camera developed for continuous acquisition at full 3.6 MPixel resolution and over 2000 frames per second. Its Camera Link HS (CLHS FOL) interface enables real-time, uncompressed 10-bit data transfer over 8x10 Gb optical fiber. The streaming architecture removes the limitations of internal memory, allowing virtually unlimited recording times and immediate access to captured image data.
Equipped with large 11 µm pixels, the camera offers excellent sensitivity. Its global shutter ensures distortion-free image capture in dynamic processes, while the high fullwell capacity supports accurate signal reproduction. The image sensor is thermally stabilized, resulting in consistently precise and reliable imaging. Two versions are available: air-cooled or liquid-cooled, with the latter providing vibration-free operation.
With this combination of high-speed streaming, stable performance, and advanced sensor technology, the pco.dimax 3.6 ST CLHS is ideally suited for material research, aerospace applications, industrial inspection, and scientific imaging.
| Resolution | 1984 x 1808 pixels |
| Sensor size | 21.8 mm x 19.8 mm |
| Diagonal | 29.5 mm |
| Pixel size | 11 µm x 11 µm |
| Shutter mode | Global shutter |
| Frame rate | 2166 fps |
| Fullwell capacity | 60,000 e- |
| QE (sensor) | 68 % @ 620 nm |
| Spectral range | 340 nm - 1100 nm |
| Readout noise | < 65 e- |
| Dark current | < 250 e-/s/pixel @ 25 °C |
| Exposure time | 10 µs to 10 ms |
| Dynamic range A/D | 10 bit |
| Data interface | Camera Link HS (FOL) |
| Dimensions | 145 mm x 145 mm x 141 mm |
Front View
Rear View
Side View
| Resolution | 1984 x 1808 pixels |
| Sensor size | 21.8 mm x 19.8 mm |
| Diagonal | 29.5 mm |
| Pixel size | 11 µm x 11 µm |
| Shutter mode | Global shutter |
| Frame rate | 2166 fps |
| Fullwell capacity | 60,000 e- |
| QE (sensor) | 68 % @ 620 nm |
| Spectral range | 340 nm - 1100 nm |
| Readout noise | < 65 e- |
| Dark current | < 250 e-/s/pixel @ 25 °C |
| Exposure time | 10 µs to 10 ms |
| Dynamic range A/D | 10 bit |
| Data interface | Camera Link HS (FOL) |
| Dimensions | 145 mm x 145 mm x 141 mm |
Front View
Rear View
Side View
