Excelitas TPD 1T 0625 Thermopile
PART/ TPD 1T 0625, TPD 1T 0623

TPD 1T 0623 and TPD 1T 0625 High-Sensitivity Thermopiles

Excelitas TPD 1T 0623 and TPD 1T 0625 Thermopile Detectors feature high sensitivity sensing chips for general-purpose thermometry. Two different housings are available with varying optical windows. Both versions include a thermistor for temperature compensation.

This Thermopile Detector Series is specially designed for high signal output level. It is equipped with internal Thermistor serving as temperature reference for Thermopile temperature compensation. The Detector is offered in two different housings: TO-46 and TO-5 housing. It can be obtained with either standard IR window or optionally with narrow-band pass filter windows making these Detectors an excellent choice for applications of general-purpose gas monitoring and detection.

Features TPD 1T 0623

  • High output voltage
  • Square window
  • Thermistor included

Features TPD 1T 0625

  • TO-5 metal housing
  • Thermistor included
  • High sensitivity



TPD 1T 0623

  • Responsivity: 33 V/W
  • Sensitivity S100: 177 µV/K
  • Noise: 36 nV/√Hz
  • Time Constant: 27 ms
  • Housing with optical window: TO-46
  • Field of View: 104°

TPD 1T 0625

  • Responsivity: 33 V/W
  • Sensitivity S100: 130 µV/K
  • Noise: 36 nV/√Hz
  • Time Constant: 27 ms
  • Housing with optical window: TO-39

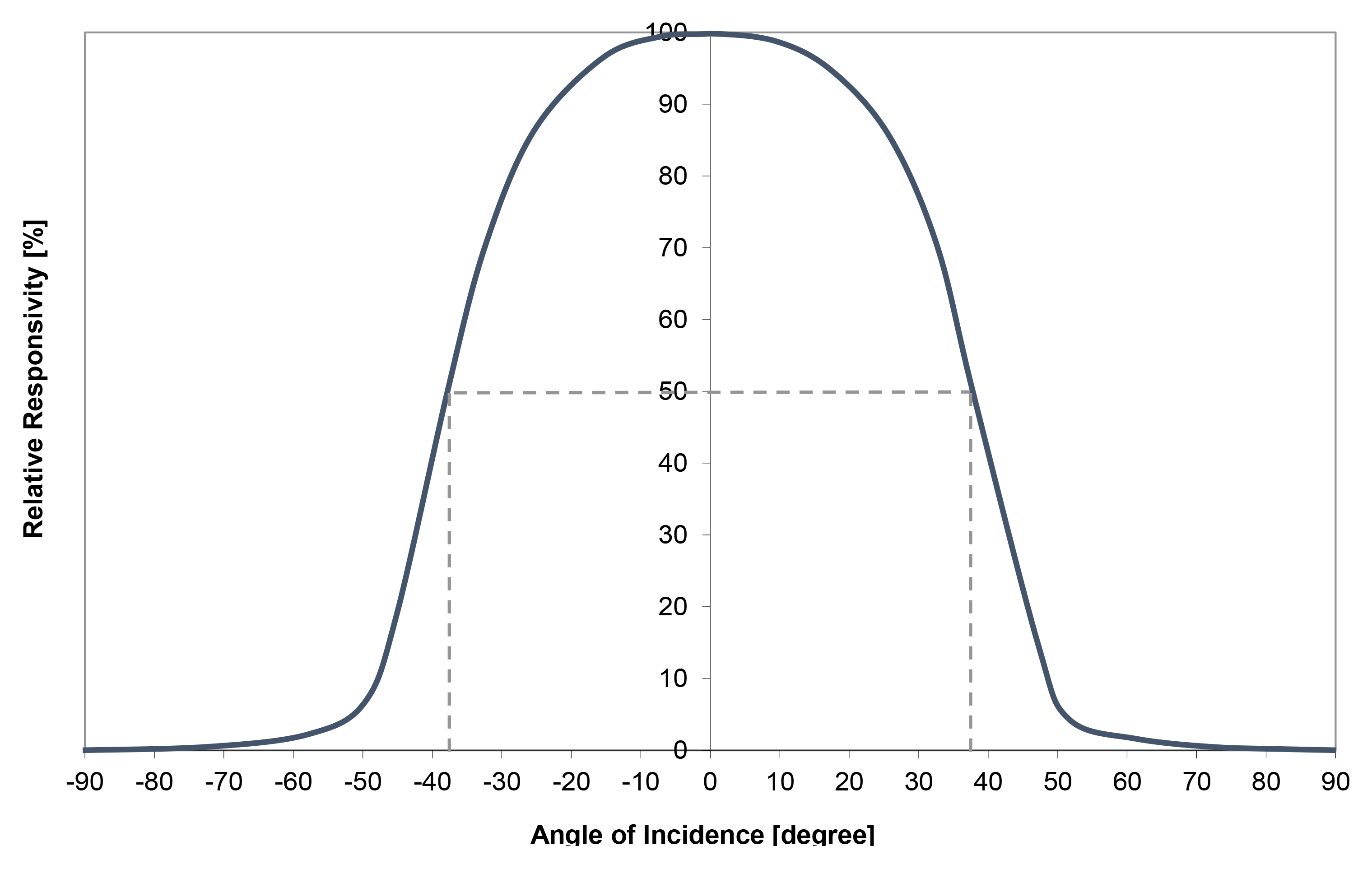

  • Field of View: 76°







TPD 1T 0623

  • Responsivity: 33 V/W
  • Sensitivity S100: 177 µV/K
  • Noise: 36 nV/√Hz
  • Time Constant: 27 ms
  • Housing with optical window: TO-46
  • Field of View: 104°

TPD 1T 0625

  • Responsivity: 33 V/W
  • Sensitivity S100: 130 µV/K
  • Noise: 36 nV/√Hz
  • Time Constant: 27 ms
  • Housing with optical window: TO-39
  • Field of View: 76°
