Excelitas PYQ 2498 Dual-Output Quad-Element Pyrodetector
Excelitas PYQ 2498 schematic
PART/ PYQ 2498

PYQ 2498 Dual-Output Quad Pyro

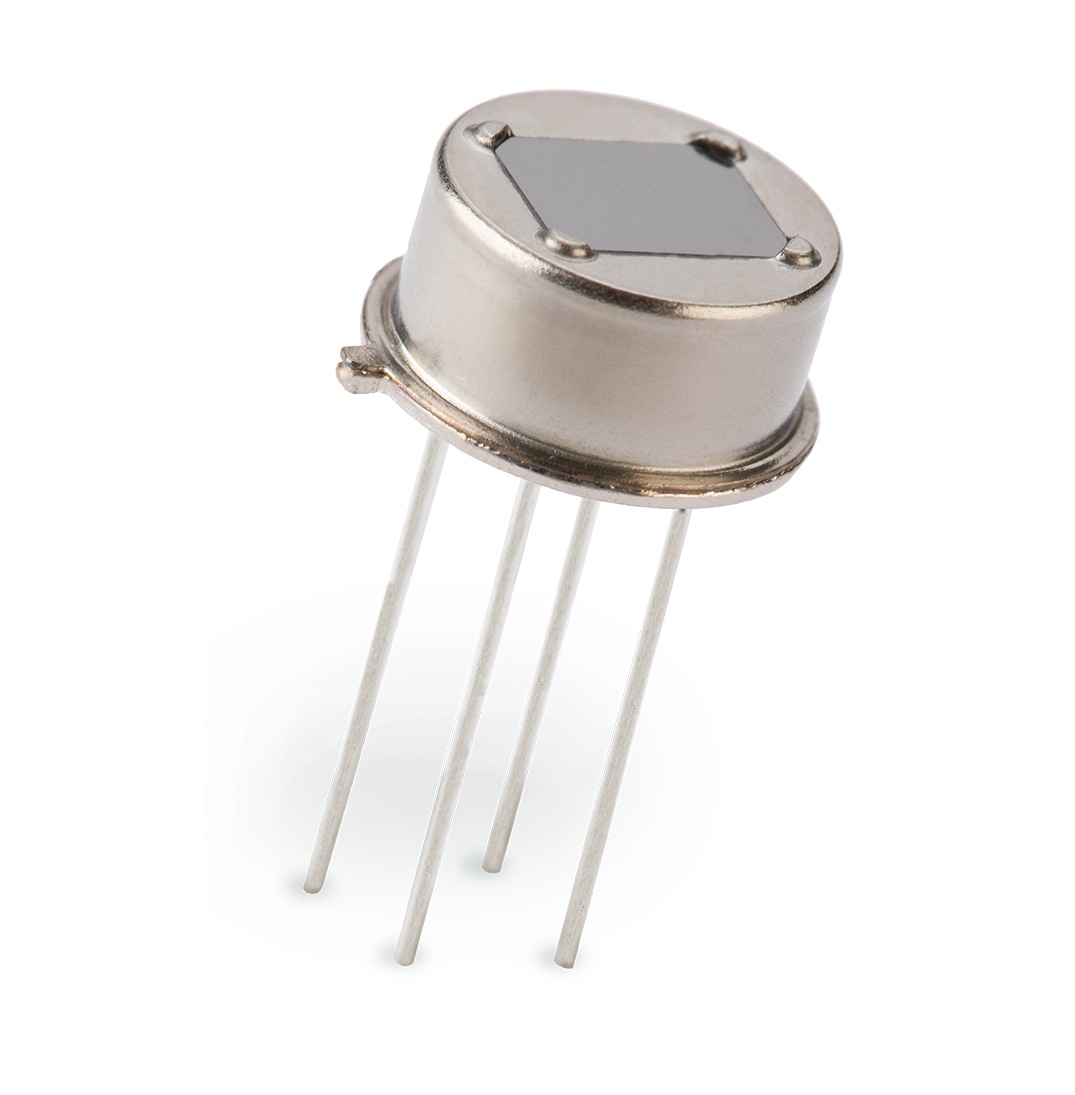

The Excelitas PYQ 2498 Pyrodetector provides two pairs of two elements in a geometric square placement. Two elements per pair are electrically connected in series. Each pair represents an individual analog output signal. The TO-5 housing includes an optical window in rectangular shape.

This "Quad" Pyrodetector series provides four elements separated into two pairs of two. Each pair is electrically connected to one FET in source follower connection forming one analog output signal. With this two individual outputs signals are provided. Geometrically the two pairs have a narrow spacing. For better EMI protection the detector includes an internal RC circuit. The TO-5 housing includes an optical window in rectangular shape

Features

  • TO-5 metal housing for EMI shielding
  • High-responsivity ceramic pyroelectric elements
  • Quad detector with 1.0 × 1.4 mm2 elements
  • 110° Field-of-view
  • Integrated FET in source follower con1guration
  • Intergrated EMI filtering stage

Applications

  • Long and mid-distance motion detection (with lens)
  • Energy saving applications (light management/smart home)
  • Intrusion alarms
  • Wall mounting applications
  • Improved pet immunity solutions (with proper lens)
ProductPhoto_IR_-PYQ-2498-schematic
  • Responsivity: 4.5 kV/W (typical)
  • Noise: 30 µVpp (typical) / 75 µVpp (max)
  • Operation requirements. 2.0-10 V
  • Housing with optical window: TO-5
  • Field of View (horiz/vert): 110°/87°
  • Responsivity: 4.5 kV/W (typical)
  • Noise: 30 µVpp (typical) / 75 µVpp (max)
  • Operation requirements. 2.0-10 V
  • Housing with optical window: TO-5
  • Field of View (horiz/vert): 110°/87°
