Qioptiq high-efficiency, LED to Glass Fiber Bundle Micro-Optic Coupler

LED Glass-Fiber Bundle Micro-Optic Coupler

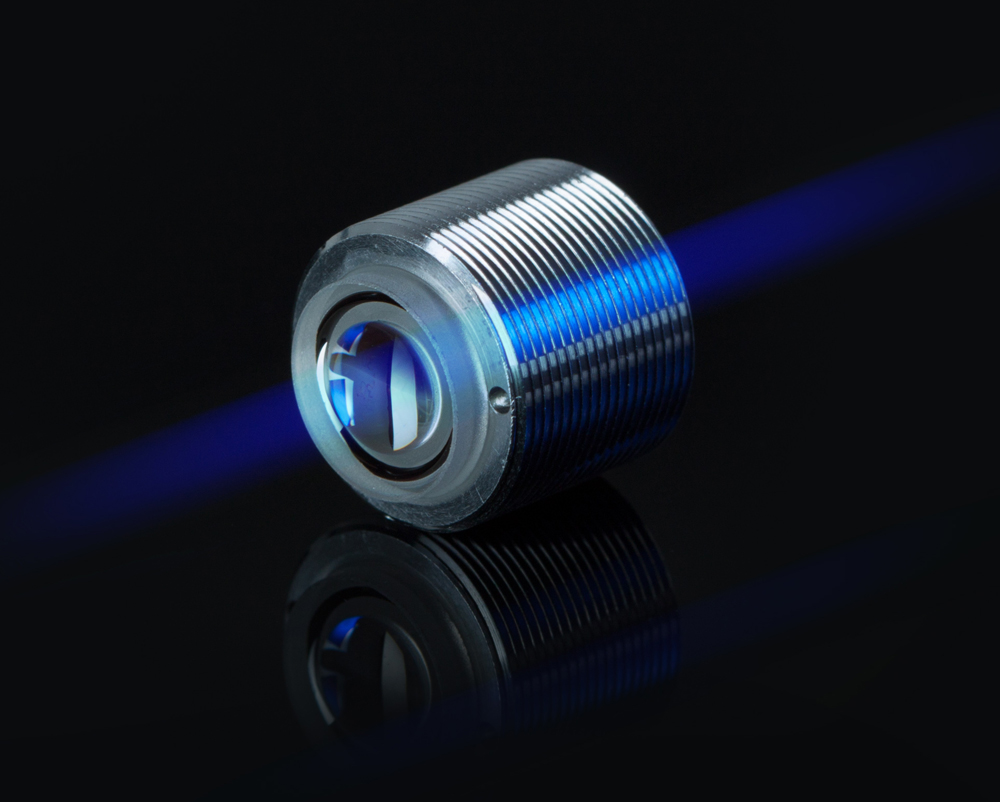

Excelitas offers this precision-engineered LED to Glass-Fiber Bundle Micro-Optic Coupler specifically designed to increase light efficiency for LED light delivery through fiber optic bundles.

Excelitas' Q-Shop ecommerce website





Increasing coupling efficiency into glass fiber bundles and featuring a M12x0.5 diameter and mechanical length 9.7 mm (optics 12.3 mm L), this coupler is functional 400 - 650 nm with 96% transmission. Custom variants available.

Learn more about the Qioptiq Micro-Optic LED to Glass-Fiber Bundle Coupler on our Qioptiq-Shop.

  • Length: 12.30 mm (optics), 9.70 mm (mechanics)
  • Diameter: M12x0.5
  • Wavelength: 400 – 650 nm
  • Transmission: > 96%
  • Captured beam angle of LED: ± 45°
  • Coupling efficiency: > 60%
  • LED diameter: 3 mm
  • Distance to LED: 0.50 mm
  • Fiber diameter: 5 mm
  • Distance to fiber: 3.50 mm
  • Temperature range: 0°- 80°C
  • Length: 12.30 mm (optics), 9.70 mm (mechanics)
  • Diameter: M12x0.5
  • Wavelength: 400 – 650 nm
  • Transmission: > 96%
  • Captured beam angle of LED: ± 45°
  • Coupling efficiency: > 60%
  • LED diameter: 3 mm
  • Distance to LED: 0.50 mm
  • Fiber diameter: 5 mm
  • Distance to fiber: 3.50 mm
  • Temperature range: 0°- 80°C
