1550nm Pulsed Semiconductor Laser Diodes

The Excelitas PVG Series of Pulsed Laser Diodes offers a variety of power levels and packages for eye-safe range finding and LiDAR applications. They can be combined with our InGaAs APDs to provide a very high efficiency component pairing. These pulsed laser diodes offer proven reliability in highly demanding applications such as military and aerospace environments.

1550 nm Pulsed Laser Semiconductor Diodes Datasheet

Product List

Part Number

PVGR1S06H

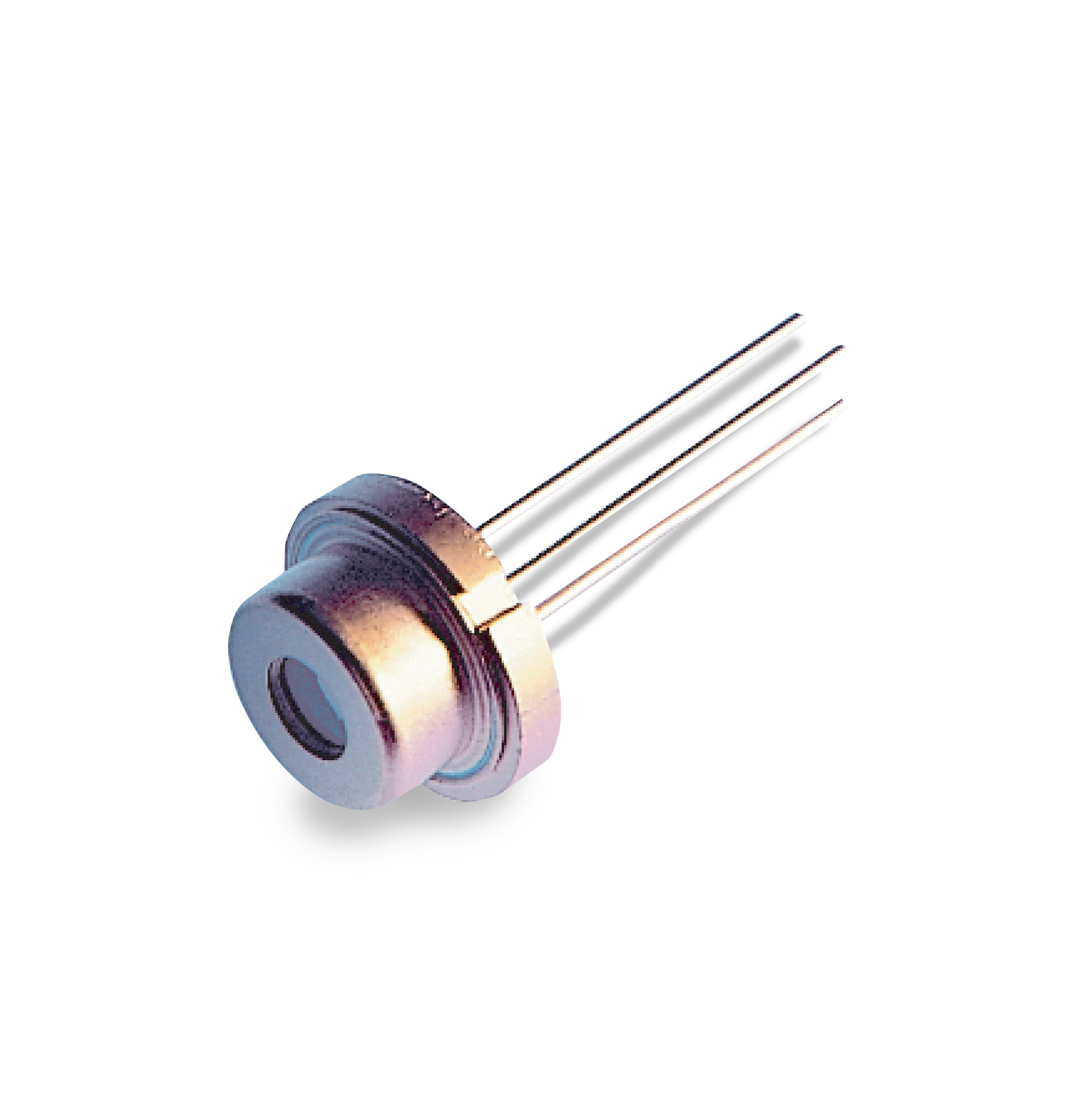

PVGR1S06H - 1550nm Single-Cavity 6 mils PLD 9mm CD Package

The PVGR1S06H is a metal packaged, high efficiency 1550 nm pulsed laser diode, comprised of a single stack, single cavity chip with a 150 µm stripe width. It provides 7 W @ 20 A tested with a 150 ns wide pulse, and is offered in various other packages.

Part Number

PVGS1S06H

PVGS1S06H - 1550nm Single-Cavity 6 mils PLD TO-52

The PVGS1S06H is a metal packaged, high efficiency 1550 nm pulsed laser diode, comprised of a single stack, single cavity chip with a 150 µm stripe width. It provides 7 W @ 20 A tested with a 150 ns wide pulse, and is offered in various other packages.

Part Number

PVGR2S06H

PVGR2S06H - 1550nm Single-Cavity, Dual-Stack 6 mils PLD 9mm CD Package

The PVGR2S06H is a metal packaged, high efficiency 1550 nm pulsed laser diode, comprised of a dual stack, single cavity chip with a 150 µm stripe width. It provides 24 W @ 20 A tested with a 150 ns wide pulse, and is offered in various other packages.

Part Number

PVGS2S06H

PVGS2S06H - 1550nm Single-Cavity, Dual-Stack 6 mils PLD TO-52

The PVGS2S06H is a metal packaged, high efficiency 1550 nm pulsed laser diode, comprised of a dual stack, single cavity chip with a 150 µm stripe width. It provides 24 W @ 20 A tested with a 150 ns wide pulse, and is offered in various other packages.

Part Number

PVGR4S12H

PVGR4S12H - 1550nm Single-Cavity, Quad-Stack 12 mils PLD 9mm CD Packaged

The PVGR4S12H is a metal packaged high efficiency 1550 nm pulsed laser diode, comprised of a quad stack, single cavity chip with a 300 µm stripe width. It provides 58 W @ 40 A tested with a 150 ns wide pulse, and is offered in various other packages.
