Inspec.x High-Resolution Lenses for Large Sensors

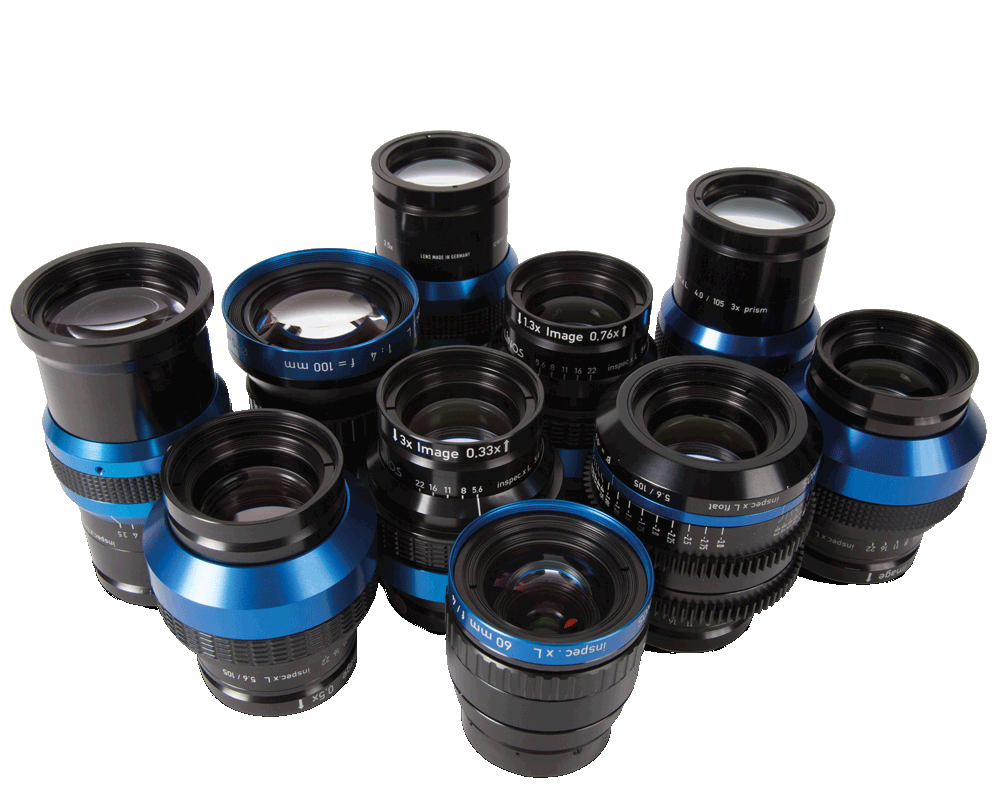

LINOS Inspec.x Lenses offer a variety of Lens Series with extraordinary imaging quality for large camera sensors. This lens series covers various magnification ranges and provides prism and area-scan module solutions for your high-performance line-scan and area-scan imaging. Our Inspec.x lenses offer excellent imaging quality, low distortion and a high color correction in the complete visible range for large sensors up to 82 mm in diameter. The rugged quality allows industrial use in all areas of modern image processing.

Try MachVis OnLine!

Access our MachVis Lens Selector tool to help identify the perfect LINOS^® or Optem^® lens solution for your imaging or machine vision requirements.

MachVis OnLine

Try MachVis OnLine!

Inspec.x High Resolution Lenses Brochure

Inspec.x High-Resolution Lenses for Large Sensors

Product List

Part Number

inspec.x M

The inspec.x M Series offers a lens solution designed especially for low light line-scan and area-scan applications. Equipped with a lockable manual focus and manual iris, these F-Mount lenses are the ideal choice for sensors up to 35 mm format when a fast f/# is required. The inspec.X M 1.4/50 mm lens series is available for use in visible spectral range or near-infrared.

Part Number

LINOS inspec.x L 5.6/105 VIS-NIR Lens Series

The LINOS<sup>®</sup> inspec.x L 5.6/105 VIS-NIR lens series sets a new benchmark in both visual and non-visual inspection. Engineered for long-line and large-area sensors, it boasts an exceptional apochromatic design. This allows for ultra-sharp, high-contrast images across a broad spectrum of wavelengths from 400 to 1150 nm, eliminating the need for refocusing. The diffraction-limited design ensures outstanding performance throughout the entire object field, delivering optimal results even at the edges

Part Number

inspec.x L 5.6/105

The inspec.x L Series was developed to meet the highest requirements in industrial image processing with very large sensors. This lens series shows even contrast and resolution over an image circle of up to 82 mm. The field-proven performance makes these lenses a perfect match for sensors like the popular 12k/5 µm and 16k/5 µm line-scan sensors. Very large area scan sensors also benefit from the high resolution, low distortion and excellent color correction of these lenses.

Part Number

inspec.x L float 5.6/105 and 5.6/120

The inspec.x L float lenses combine the field-proven imaging performance of the inspec.x L Series with newly developed mechanics to cover a large magnification range with only one lens. By using floating element optics, the inspec.x float lenses achieve high performance over an extremely wide magnification range from 0.3x to 3.0x and 0.06 to 0.52 respectively.

Part Number

inspec.x L 4/105

The inspec.x L 4.0/105 Series lens are designed to achieve an object resolution down to 2 µm and are suitable for sensors with up to 82 mm in length. With an enormous resolution of up to 200 lp/mm in the object plane, the inspec.x L 4.0/105 is able to provide high imaging quality across the complete image circle. Furthermore, this lens series offers the advantage of extremely small distortion, which is well under 1 µm over the complete field of view.

Part Number

Prism Modules and Area Scan Modules

Coaxial illumination is very common for high-resolution applications. Excelitas offers an easy-to-use prism module that is optimized for use with our prism type inspec.x L and d.fine HR lenses. This prism module is designed with has a universal mount for fiber guides that are widely used for line-scan illumination. With a simple setup, our prism module provides a complete optical system which combines the lens and illumination unit that achieves diffraction-limited performance.

Part Number

inspec.x L 4/60
