EFI Detonator

EFI Detonators

The Excelitas low energy exploding foil (EFI) detonator is designed for a wide variety of applications. Our EFI detonator offers a 2-pin and 6-pin version in a similar form factor and are available at competitive pricing for immediate delivery. The detonators are tested in accordance with MIL-DTL-23659 Appendix A.

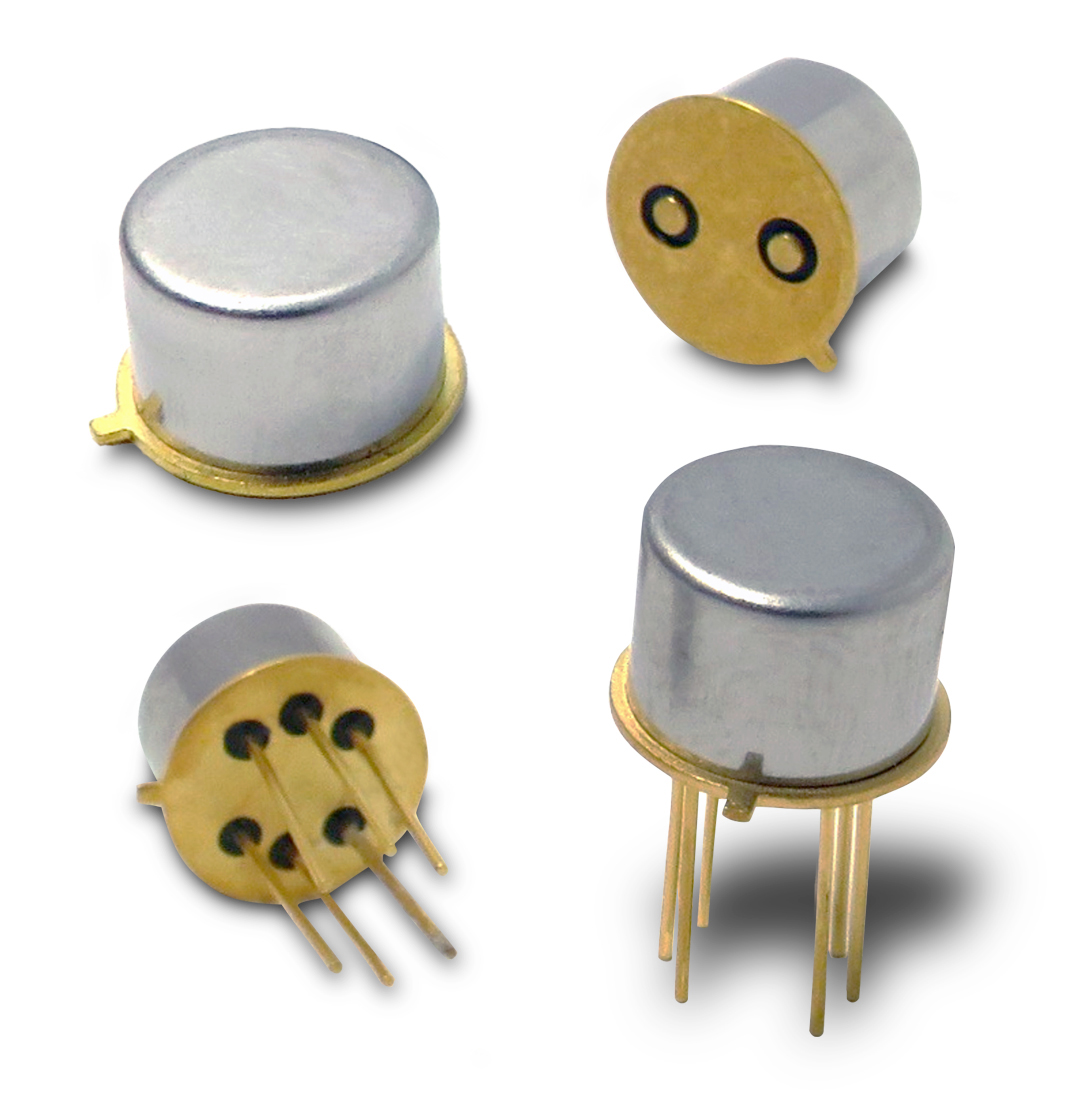

This detonator chip slapper consists of an exploding metal foil, covered by a polyimide flying plate, deposited on a ceramic “chip” substrate. The assembly is laser welded to ensure the device is hermetic to a leak rate of 10-6 ATM-CC/SEC. Excelitas manufactures the EFI Detonator with either 2 or 6 pin TO-5 header that can be utilized as surface mount, plugged into a connector, or attached to a flexible tape strip line.

  • Low cost EFI
  • Low firing energy
  • Commercial grade
  • MIL-STD-1316 compliant design
  • MIL-STD-1901 compliant design
  • Hermetic to 10-6 ATM-CC/SEC
  • Demonstrated ability to initiate various booster and main charges
  • Wide temperature operating range (-196° to 200°C)
  • Full lot and serialization control
  • Immediate availability

Nomenclature

 # Pins

 Firing Energy

 Max. Explosive Load

 Description

 EFI (6-Pin)

 6 Pin

 Low

 0.12 g HNS IV

 Standard Profile

 EFI (2-Pin)

 2 Pin

 Low

 0.12 g HNS IV

 Standard Profile

Nomenclature

 # Pins

 Firing Energy

 Max. Explosive Load

 Description

 EFI (6-Pin)

 6 Pin

 Low

 0.12 g HNS IV

 Standard Profile

 EFI (2-Pin)

 2 Pin

 Low

 0.12 g HNS IV

 Standard Profile
