LINOS Manual Variable Magnification Beam Expander

The LINOS^® Manual Variable Beam Expanders are specially designed for optical beam forming in laser material processing. Offering continuous variations of the laser beam diameter and divergence, these manual variable beam expanders help optimize focus diameter, focus position and beam propagation within a laser system. The LINOS Variable Beam Expander features precise mechanical scales that allow users to adjust the settings for highest reliability and repeatability. With superb pointing stability, these beam expanders guarantee excellent imaging quality over the full expansion range.

Continuous variation of magnification 2x...8x
Choice between fused-silica or glass entrance lens
Continuous variation of exit-beam divergence
Wavelengths 355 nm, 532 nm, 633/780/830/980 nm or 1064 nm
Precise scales allow reliable settings and high repeatability
Max. exit-beam diameter 31 mm
Max. length 165.5 mm
Max. diameter 42.0 mm
Mounting diameter 37.6_-0.1 mm, reference on surface A

For 3D drawings and datasheets including curve sheets for each lens please refer to Q-Shop - Docs + Drawings.

LINOS Manual Variable Magnification Beam Expanders

Part No.	Product description	Wavelength	Max. entrance- beam diameter truncated at 1/e²	Entrance lens made of quartz	Wavelength range antireflective coating
		(nm)	(mm)		(nm)
4401-402-000-20	Beam-Expander var. 2x-8x 355 nm fused silica	355	3.4	x
4401-446-000-20	Beam-Expander var. 2x-8x 532 nm fused silica	532	4	x	515 - 540
4401-257-000-20	Beam-Expander var. 2x-8x 532 nm	532	8
4401-258-000-20	Beam-Expander var. 2x-8x 633/780/830/980 nm	633/780/ 830/980	8		630 - 980
4401-359-000-20	Beam-Expander var. 2x-8x 1064 nm fused silica	1064	4	x	1030 - 1080
4401-256-000-20	Beam-Expander var. 2x-8x 1064 nm	1064	8

LINOS Laser Material Processing Optics Brochure

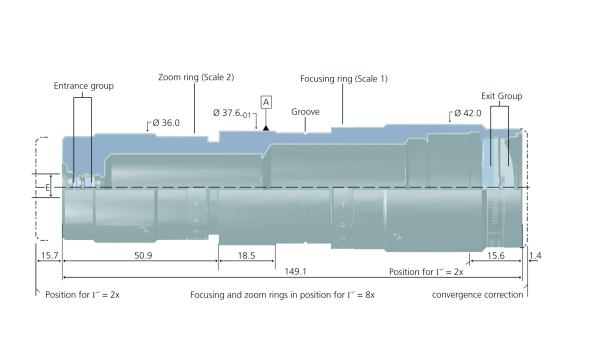

LINOS Manual Variable Beam Expander technical drawing

LINOS Manual Variable Magnification Beam Expanders

Part No.	Product description	Wavelength	Max. entrance- beam diameter truncated at 1/e²	Entrance lens made of quartz	Wavelength range antireflective coating
		(nm)	(mm)		(nm)
4401-402-000-20	Beam-Expander var. 2x-8x 355 nm fused silica	355	3.4	x
4401-446-000-20	Beam-Expander var. 2x-8x 532 nm fused silica	532	4	x	515 - 540
4401-257-000-20	Beam-Expander var. 2x-8x 532 nm	532	8
4401-258-000-20	Beam-Expander var. 2x-8x 633/780/830/980 nm	633/780/ 830/980	8		630 - 980
4401-359-000-20	Beam-Expander var. 2x-8x 1064 nm fused silica	1064	4	x	1030 - 1080
4401-256-000-20	Beam-Expander var. 2x-8x 1064 nm	1064	8
