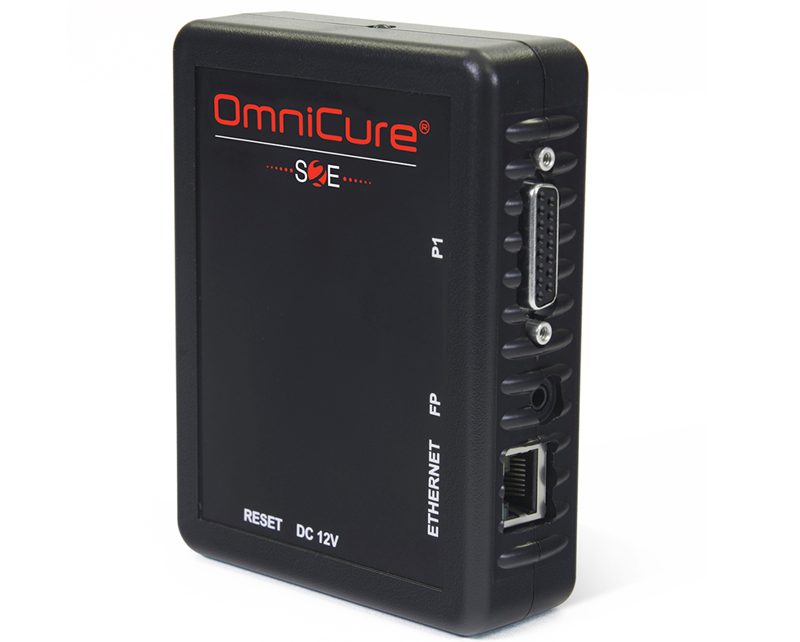

OmniCure S2E Network Module
PART/ S2E

OmniCure S2E Network Module

The OmniCure® S2E Network Module is designed to save time on maintenance and keep production running smoothly with remote process monitoring and UV curing equipment control. The S2E complements the OmniCure family of S-Series spot UV curing systems, offering the same high level of innovation, quality and reliability that customers have come to expect.The OmniCure S2E Ethernet adapter enables production facilities to join a new era of connectivity with the ability to remotely access up to 300 UV curing systems within a local area network, while simultaneously monitoring their activity and maintenance requirements through the OmniCure Monitoring Station software.

The OmniCure S2E complements the OmniCure S Series Spot UV curing equipment, offering the same high level of innovation, quality and reliability that our customers have come to expect. It is compatible with all OmniCure S2000 and the S1500 UV curing systems.

Benefits to using S2E Module:

  • Save maintenance time and keep production running smoothly with OmniCure Monitoring Station software
  • Proactively trend and predict maintenance requirements with continuous operational data logging
  • Enhance visibility of production activity and quickly isolate issues that result in potential waste/rework
  • Increase productivity and eliminate time lost identifying system faults with real-time email alerts

OmniCure S2E

Compatible OmniCure Systems

S2000 and S1500 (*S2E adds StepCure®  process functionality to the S1500)

Power Supply (Included)

DC input power: 12 VDC 0.5 A MAX

Ethernet Interface

10/100 Mbps (auto-sensing) RJ45 connector

Remote Ethernet Functions

  • HTTP remote web interface for system programming via the S2E control panel GUI
  • Automatic TCP/IP device-find through the OmniCure Monitoring Station software
  • XML transfer protocol for data logging electronic records
  • SMTP for email notifications (up to 7 unique recipients per unit)
  • Optional PLC control via Modbus TCP

Ambient Operating Temperature

15°C to 35°C (59°F to 95°F)

Storage Temperature

-10°C to 60°C (14°F to 140°F)

Humidity Range

Up to 85% MAX (non-condensing)

Operating Voltage

100-240 VAC (± 10%) 50/60 Hz 0.06/0.025 A

Dimensions (L x W x H)

32 x 89 x 114 mm (1 1/4" x 3 1/2" x 4 1/2" )

Weight

181 g (0.4 lb)

Warranty

1 year
