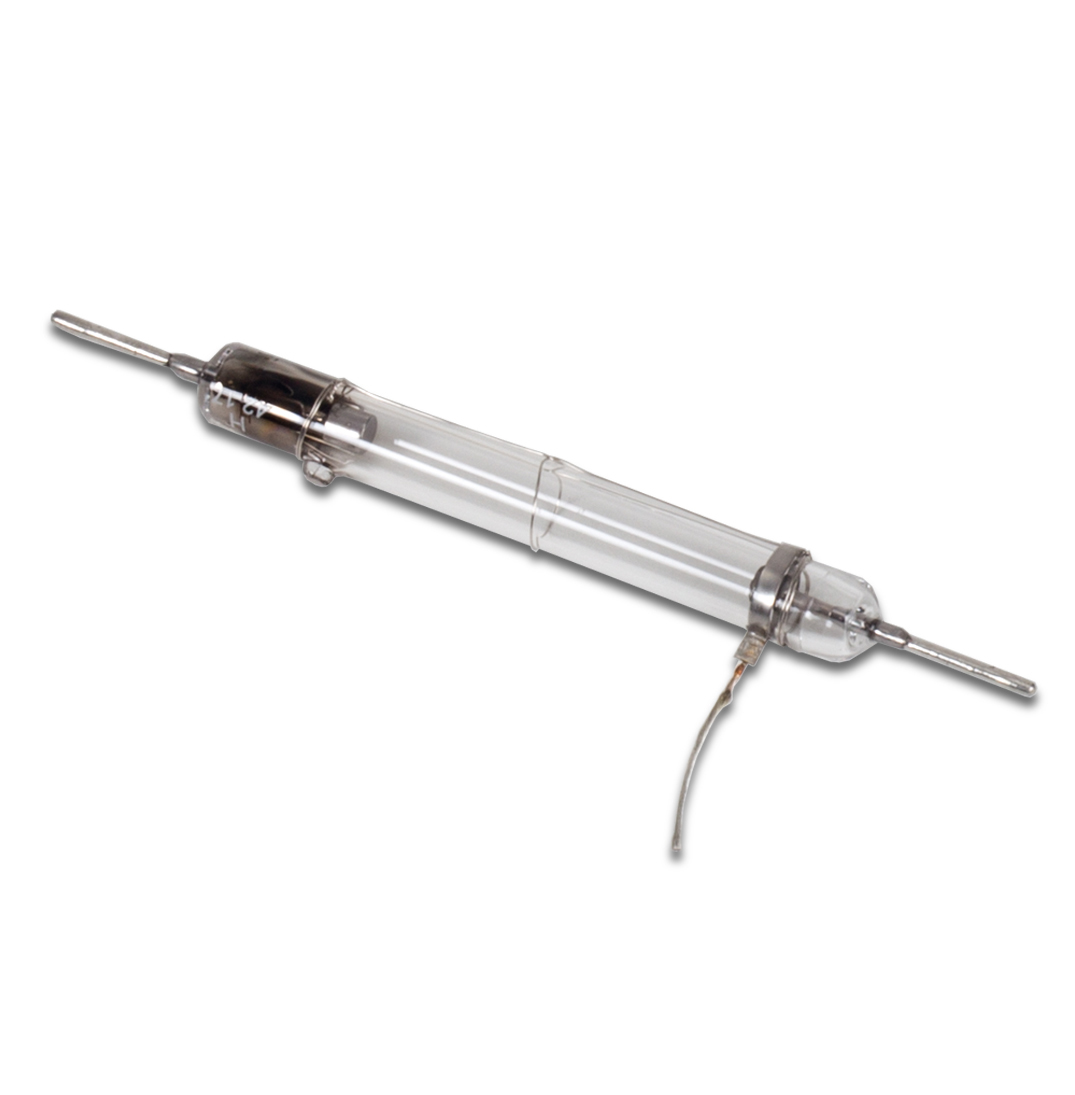

Warning Beacon Flashlamps

Warning Beacon Flashlamps

Excelitas offers complete plug-in flashlamp solutions – lamps, sockets, and integrated trigger coils – which can be customized to meet the most demanding customer requirements. With robust and comprehensive designs, Excelitas' flashlamps come in several quartz options. Utilizing distinct long-life electrodes, our flashlamps help drastically reduce service fees while offering additional savings in stock and manufacturing costs.

Contact Us Find a Distributor

Excelitas flashlamps provide efficient and reliable triggering either through wire, silver lining, conductive coating or a band pending on operating conditions, lamp design and glass material.

Refer to the tab below to view available flashlamps suitable for warning beacon applications (you may need to scroll to the right in order to view all specs). Contact us for more information.



Part Type Shape Energy / Ws  Power / W Anode Voltage / V Dimensions / mm   Flashes / sec Life Flashes Envelope Material Recommendations
        min nom max Arc Length Glass Body Length Overall Length Glass Diameter Radius Pin Distance       Trigger Coil Capacitor /  µF  Primary Trigger Voltage / V
 EG 3771 linear 32 32 300 450 600 68 – 117 7 – – 4 9 x 106 Q 1* ZS 1052 0.22 250
 EGL 3841 linear 40 40 400 500 550 40 69 113 8 – – 4 1 x 107 Q 2* STS 36 0.47 300



Part Type Shape Energy / Ws  Power / W Anode Voltage / V Dimensions / mm   Flashes / sec Life Flashes Envelope Material Recommendations
        min nom max Arc Length Glass Body Length Overall Length Glass Diameter Radius Pin Distance       Trigger Coil Capacitor /  µF  Primary Trigger Voltage / V
 EG 3771 linear 32 32 300 450 600 68 – 117 7 – – 4 9 x 106 Q 1* ZS 1052 0.22 250
 EGL 3841 linear 40 40 400 500 550 40 69 113 8 – – 4 1 x 107 Q 2* STS 36 0.47 300
