1x4 Surface Mount 905nm Pulsed Semiconductor Laser Arrays

The PGA Array Series of pulsed laser diodes are four-channel arrays in compact, SMD packages for high volume LiDAR  and range finding applications. These arrays can be used in common fire mode where all channels illuminate the field, as in flash LiDAR applications or alternatively, you can individually select channels for pulsed time of flight applications.

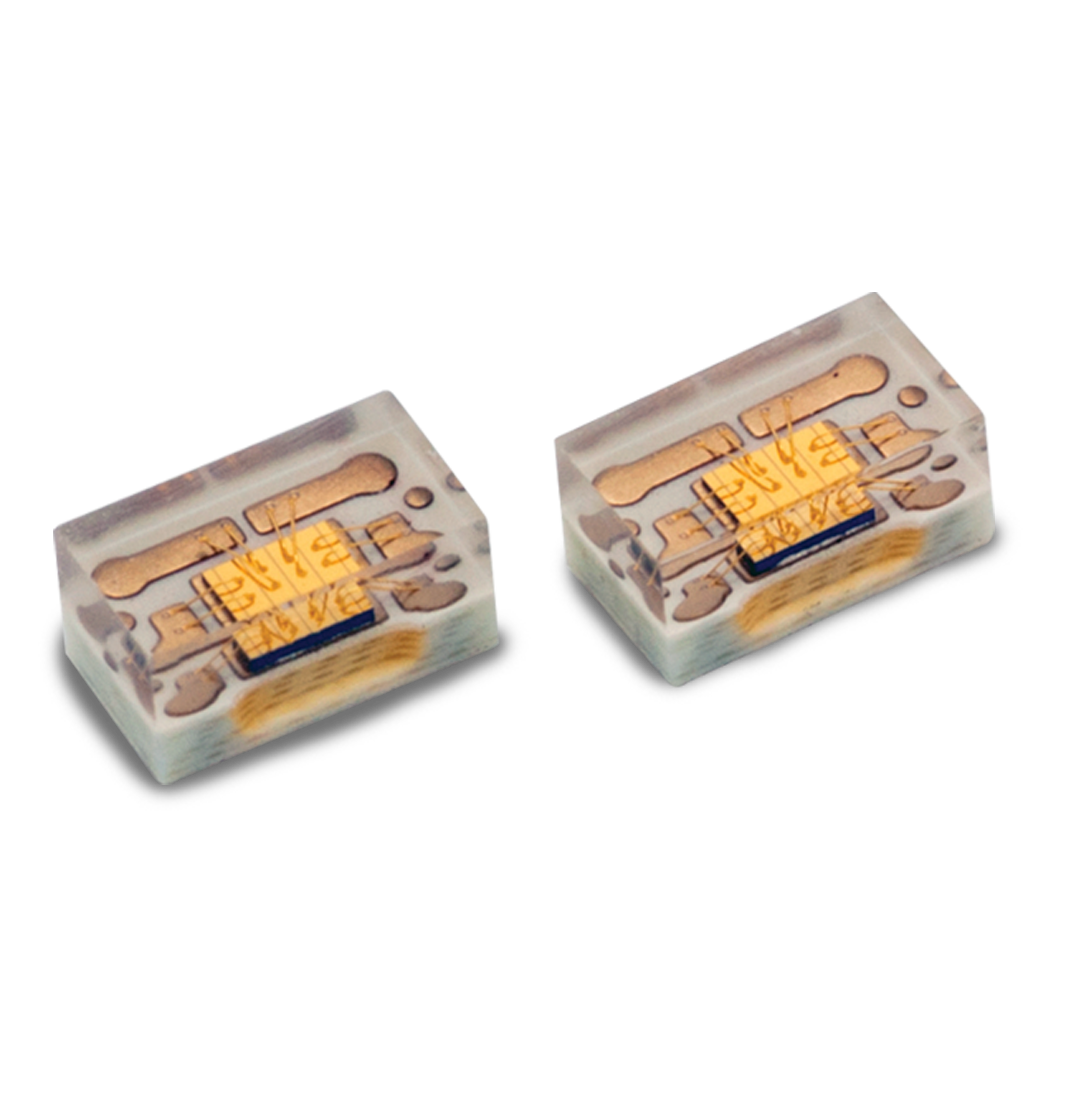

905 nm 4-channel array PLD in SMD package

Product List

905 nm 4-channel array Pulsed Laser Diode in SMD package
Part Number
TPGAD1S11A-4A

TPGAD1S11A-4A - 905nm 1x4 SMD Pulsed Laser Diode Array

Excelitas offers novel 905 nm four-channel pulsed laser diode arrays which offer flexible emission patterns and high output power. These pulsed laser diodes are uniquely designed to allow for increased duty cycles when the channels are firing individually, or increased output power to 300 W when all channels are activated in parallel. Each application has unique challenges when it comes to selecting the most suitable emitter. Contact us today to discuss your specific needs.
