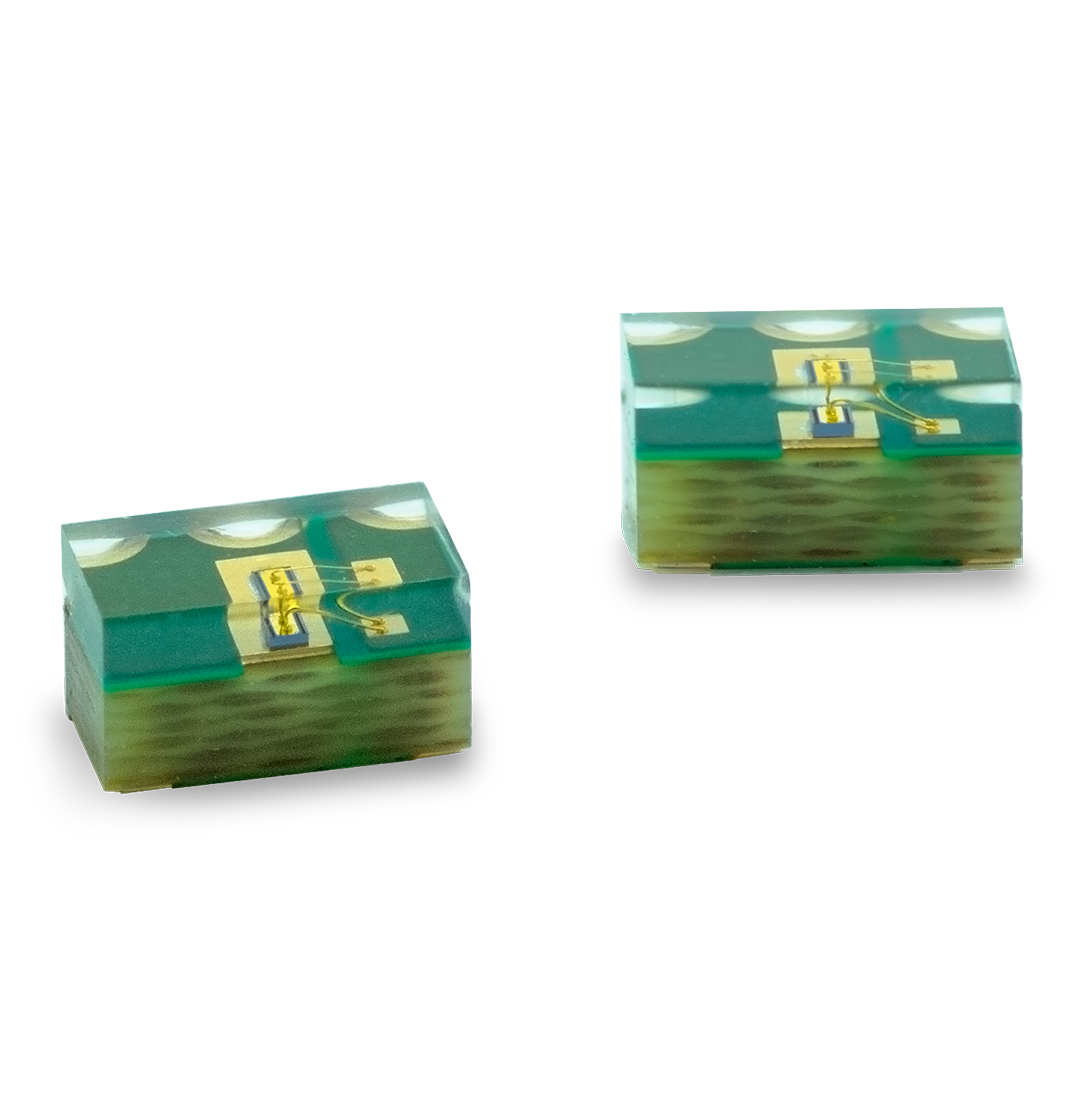

TPG3AD1S09 – 905 nm Generation 3 Triple-Cavity 225 μm SMD PLD
The Excelitas Generation 3 TPG3AD1S09 Pulsed Laser Diode is a high-efficiency 905 nm edge-emitting laser diode in an SMD package. The TPG3AD1S09 features a power slope of 3 W/A and enhanced output power of 120 W when operated at 40 A, extending the detection range to enable applications of tomorrow. This pulsed laser diode provides high output power ideally suited for long-distance range finder applications and offers a power-efficient solution for short- to mid-range systems.
The Excelitas TPG3AD1S09 Pulsed Laser Diode offers excellent stability, beam quality, and reliability for the most demanding applications. It features a triple-cavity laser chip that provides three times the optical power levels compared to a single-cavity laser design. The TPG3AD1S09 comes in a small, cost-effective SMD package with two mounting options on the PCB – vertical and horizontal - for easy integration in high-volume consumer and industrial applications. A reduced series resistance allows operation at lower voltages for less power consumption.
- 905 nm pulsed laser diode
- 120 W output power
- High reliability
- 3 W/A power slope
- 225 μm contact stripe width
- Horizontal and vertical emission possibility
- 120 W Output Power: High-output power for long-distance range finder applications and power-efficient for short- to mid-range systems
- New EPI Design: Highest reliability for most demanding applications; bare die is available for automotive LiDAR applications
- Low Operation Voltage: Less power consumption for high-efficient light output
- SMD Package: Cost-effective packaging for high-volume consumer and industrial applications; can be mounted horizontally or vertically on the PCB
- Triple-Cavity Laser Chip: Provides three times of optical power levels compared to a single cavity laser design
- LiDAR / ToF measurements
- Laser range finding
- Laser scanning / UGV
- Infrared night illumination
- Laser therapy
- Material excitation in medical and other analytical applications
