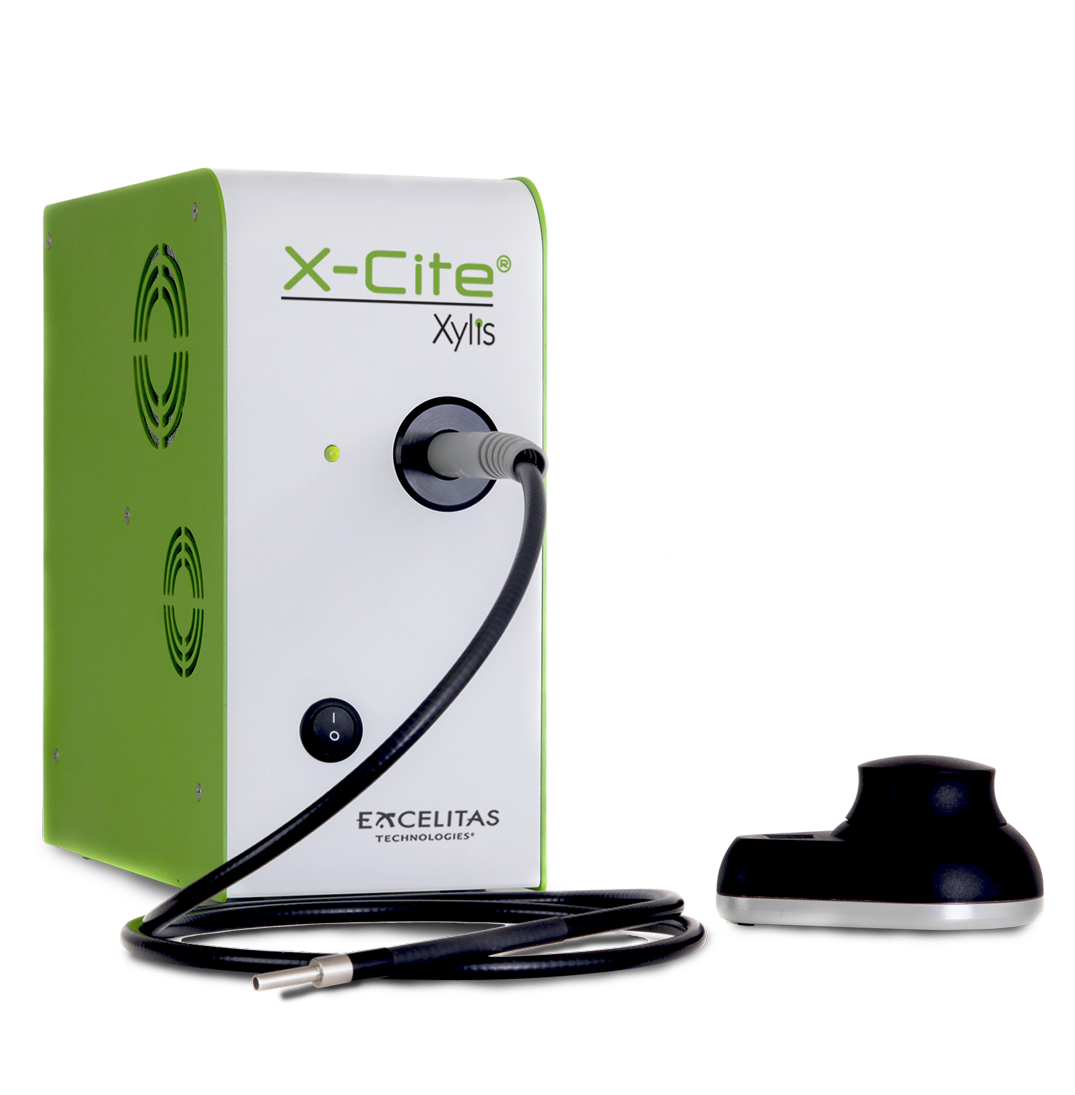

X-Cite XYLIS LED Illumination System
THIS PRODUCT IS DISCONTINUED. It has been replaced with the X-Cite XYLIS II. Technical support for this product will continue to be available.
Excelitas continues to innovate and deliver illumination solutions that best address the demanding needs of fluorescence microscopy applications.
The X-Cite XYLIS has been replaced with the X-Cite XYLIS II. Learn more about the X-Cite XYLIS II.
For continued product support information, please see below Documentation and User Guide tabs. For any other questions, please contact us.
|
TECHNICAL SPECIFICATIONS |
||
|
|
Model: XT720S |
Model: XT720L |
|
Wavelength Range |
360-770 nm |
380-770 nm |
|
LED Peaks (nm) |
365, 430, 475, 545, 635, 735 |
385, 430, 475, 545, 635, 735 |
|
Input Power Supply |
Universal input 100-240 VAC, 50/60 Hz |
|
|
Current |
3.9-1.6A |
|
|
LED ON/OFF Response Times |
100 μs TTL / 1 ms USB |
|
|
Control Options |
speedDIAL ON/OFF - TTL compatible RS-232 commands (SDK available), USB Foot Pedal (optional) |
|
|
I/O Connections |
BNC input USB (B-type) 3.5 mm stereo plug |
|
|
Dimensions (W x H x D) |
120 mm x 260 mm x 260 mm (4.7" x 10.3" x 10.3") |
|
|
Weight |
6.3 kg (13.9 lbs) |
|
|
Certifications |
CE, RoHS |
|
|
Warranty |
LEDs – 25,000 hours or 3 years All other X-Cite XYLIS components - 1 year, parts and labor (excluding LLG) |
|
|
Patents |
X-Cite XYLIS incorporates technology protected by patent US#9,239,133 |
|
"XYLIS offers a nice replacement for conventional metal halide lamps as it delivers more intensity and requires less frequent lamp replacement on our stereo microscope. Moreover, it is very bright for red fluorophores and strains for which the fluorescence was barely visible with classical lamps became easy to screen with this system.”
Peter Meister, University of Bern, Switzerland
“XYLIS offers a possibility of imaging Cy 7 channel additionally to the conventional ones, which expands the utility of our microscopes and allows more comprehensive analysis of our samples in immunofluorescence.”
Carlos Wotzkow, University of Bern, Switzerland
|
