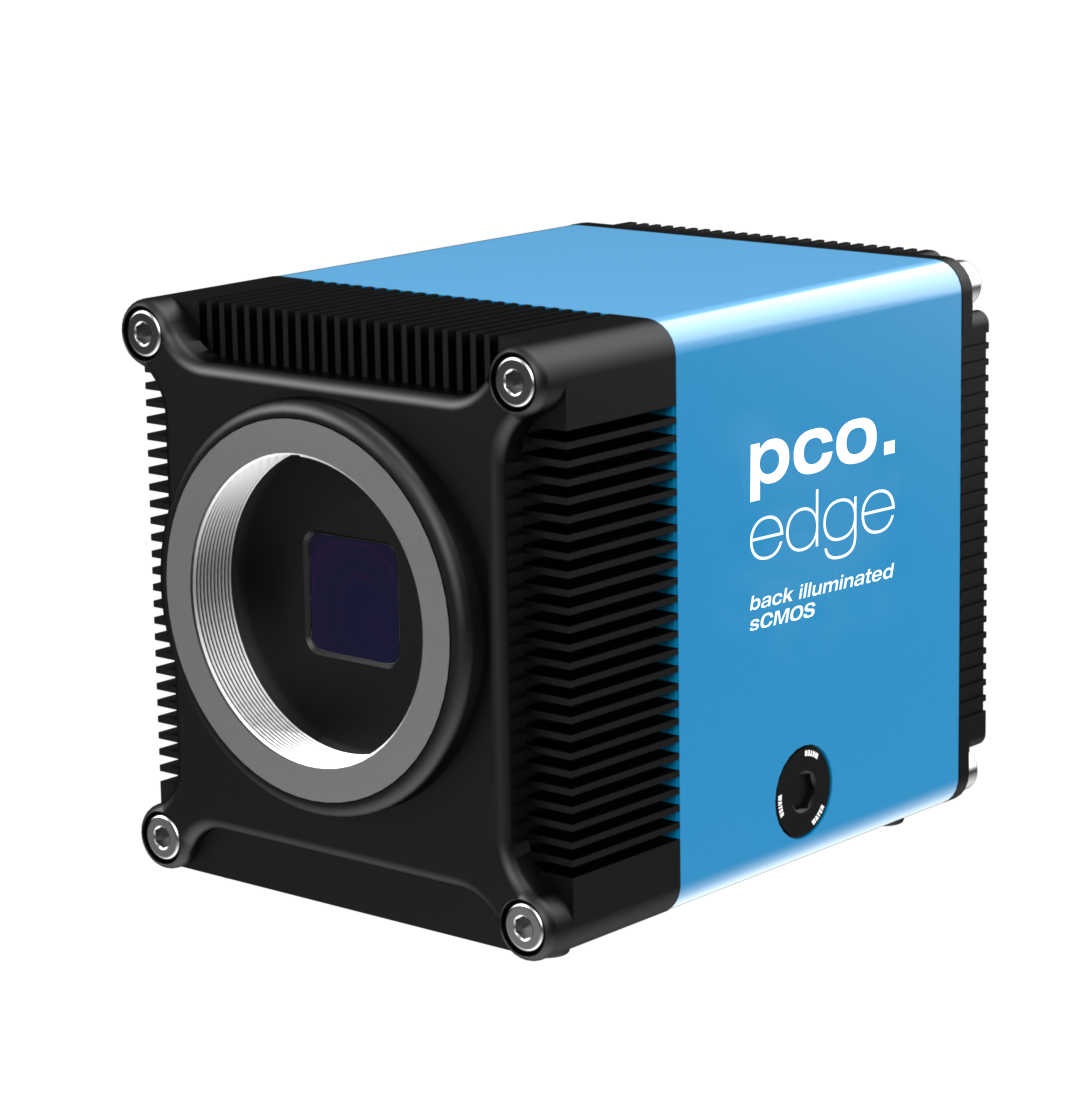

pco.edge 4.2 bi USB sCMOS Camera

The pco.edge 4.2 bi sCMOS camera features back-illuminated sensor technology with a quantum efficiency of up to 95 %. This compact sCMOS camera provides 2048 x 2048 pixel resolution and 6.5 μm pixel size for achieving highest image quality. Its adjustable cooling system offers flexibility in the use of either air or water to cool the sensor down to -25 °C and reduce dark current to 0.2 e-/pixel/s for maximum imaging performance. The pco.edge 4.2 bi camera comes with an input window available for either UV or VIS wavelength ranges to best suit your application.

The pco.edge 4.2 bi scientific camera provides excellent quantum efficiency combined with a high frame rate at 4.2 Megapixel resolution. This camera incorporates a powerful USB 3.1 interface to stream the image data continuously with full 16-bit dynamic range. Furthermore, the pco.edge 4.2 bi sCMOS camera includes sealed electronics to prevent dirt or dust from entering the camera.

Also, try our MachVis Lens Selector tool to help identify the perfect lens solution and PCO camera for your imaging and machine vision requirements.





Interface

USB 3.1 Gen 1

Sensor technology

back-illuminated sCMOS

Color type

monochrome

Resolution

2048 x 2048 pixels

Sensor diagonal

18.8 mm

Pixel size

6.5 x 6.5 μm

Maximum frame rate @ full resolution

40 fps

Maximum pixel rate

184 MPixel/s

Peak QE

95 % @ 580 nm



Typ. read noise1

1.0 e-

Dark current @ sensor temperature

< 0.2 @ -25 °C (e-/pixel/s)

Maximum dynamic range

26,667 : 1

Shutter type

Rolling Shutter, Global Reset

Sensor cooling2

air & water

Additional options

lightsheet scanning mode3, low light mode

Dimensions (H x W x L)

85 x 80 x 109 mm


1 The readout noise values are given as median (med). All values are raw data without any filtering.
2 air = air forced with fan | water = external water connection
Selectable via software
pco.edge 4.2 bi QE Curve
pco.edge 4.2 bi QE Curve
pco.edge 4.2 bi QE Curve




  • Brightfield microscopy microscopy
  • Fluorescence microscopy
  • Digital pathology
  • Single molecule localization microscopy
  • Lightsheet fluorescence microscopy (LSFM)
  • Calcium imaging
  • FRET
  • FRAP
  • Structured illumination microscopy (SIM)
  • Highspeed bright field ratio imaging
  • High throughput screening
  • High content screening
  • Biochip reading
  • TIRF microscopy
  • Spinning disk confocal microscopy
  • 3D metrology
  • Ophthalmology
  • Photovoltaic inspection
  • Industrial quality inspection
  • Lucky astronomy
  • Bio luminescence
  • Chemo luminescence
